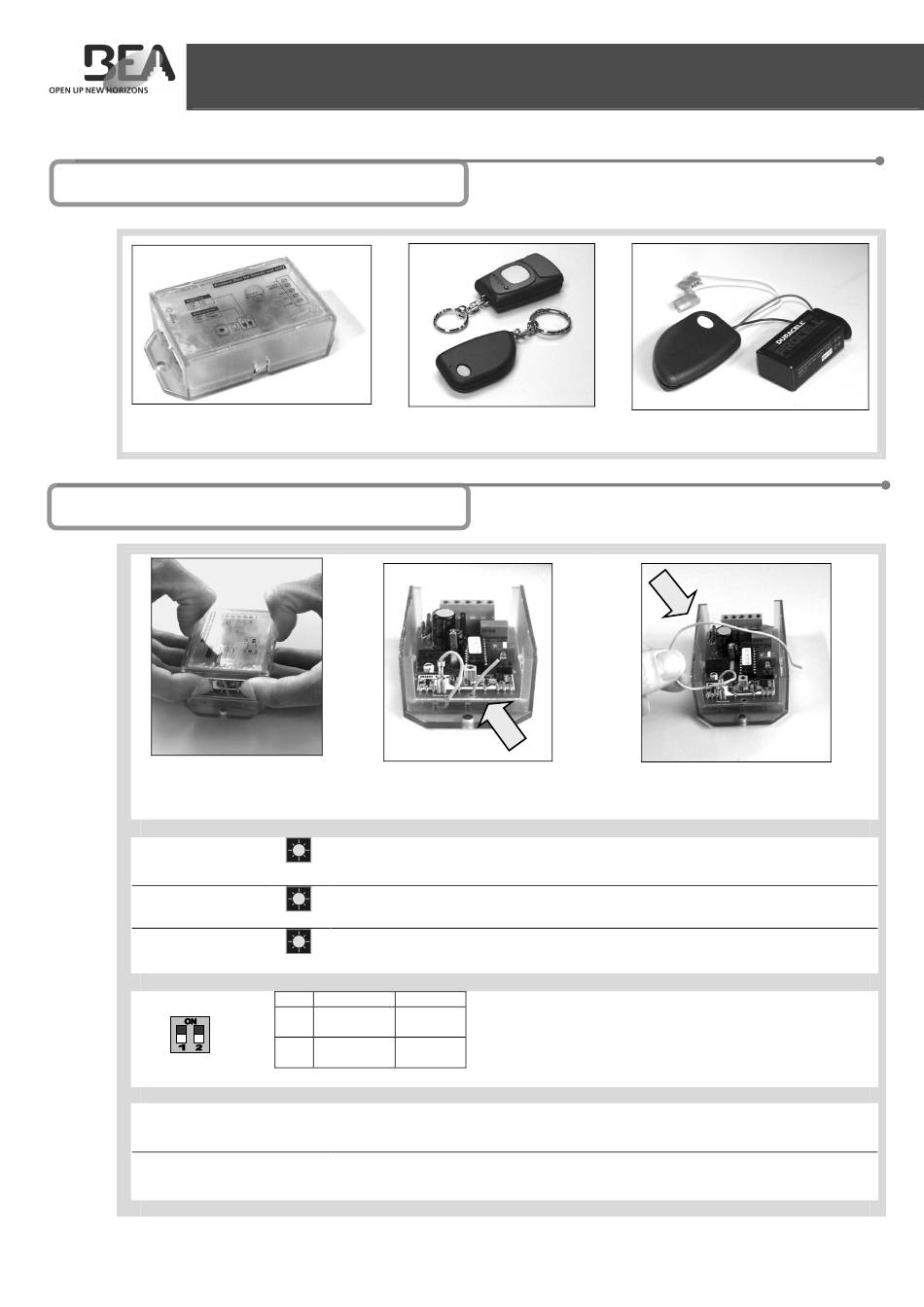

BEA EAS RF User Manual

1 Available from this range

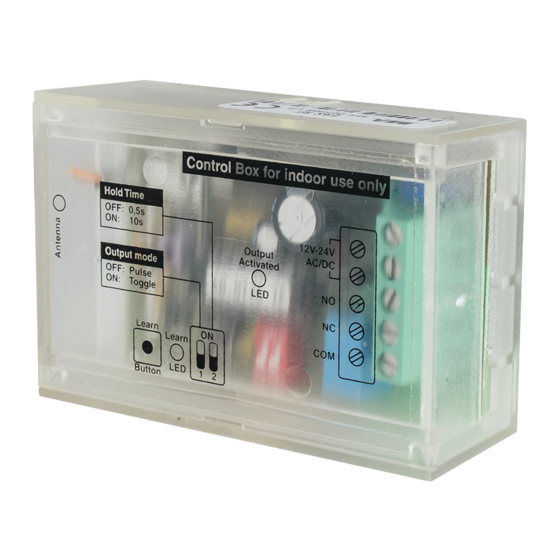

EAS RF RECEIVER
2 General information
To open the receiver, expand the two
sides of the box and lift up the cover.
LED Receiver
LED
Key Fob/Transmitter
Dip Switch Settings
Add one Key Fob/ Transmitter
Remove all
Key Fobs/ Transmitters
EASY ACCESS SYSTEM BASED ON RADIO FREQUENCY
(sold seperately)
Large
Button
EAS RF KEY FOBS
In its standard position, the antenna has a
maximum range of 10 m (open field).
The record LED flashes when the system receives information coming from any key fob/transmitter
(recorded or not). During a 'record' sequence, the LED switches on until the system receives the data
YELLOW
coming from the new key fob/transmitter.
The output LED switches on when the output is activated.
RED
The check LED switches on when the key fob/transmitter sends data to the EAS receiver.
RED
1 2
ON Output Hold time
▲ Toggle mode 10s
OFF Output Hold time
Impulse mode 0.5s
▼
1. Press the record button on the EAS receiver once. The yellow LED will switch on.
2. Press the button of the new EAS key fob/ transmitter twice.
When the LED stops flashing the key fob/transmitter is recorded in the system.
1. Press the record button on the EAS receiver until the yellow LED switches off (about 8 s).
2. The memory of the receiver is cleared now and you can re-activate your EAS key
fob(s)/transmitter(s) by using the above mentioned procedure.
Small
Button
To obtain a range of max 25 m, you can change the
position of the antenna as shown above.
Toggle mode
When you press the button of the key fob/transmitter, the output is
activated until you press the same button again.
Impulse mode
When you press the button of the key fob/transmitter, the output is
activated during 0.5 or 10 s (depending on dip switch 2).
EAS RF
USER'S GUIDE
EAS RF TRANSMITTER
FOR PUSH PLATES
1/2
