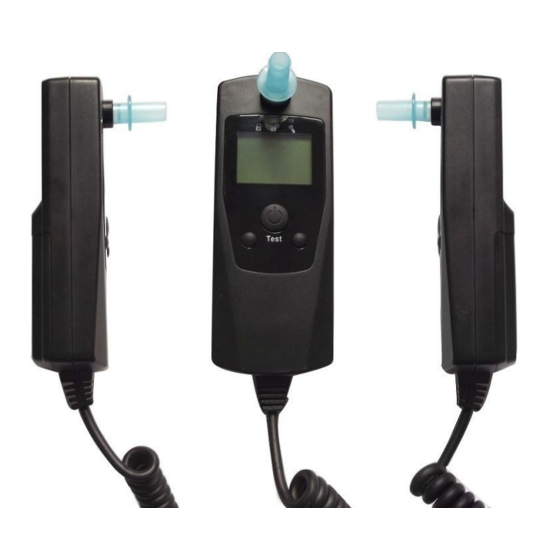

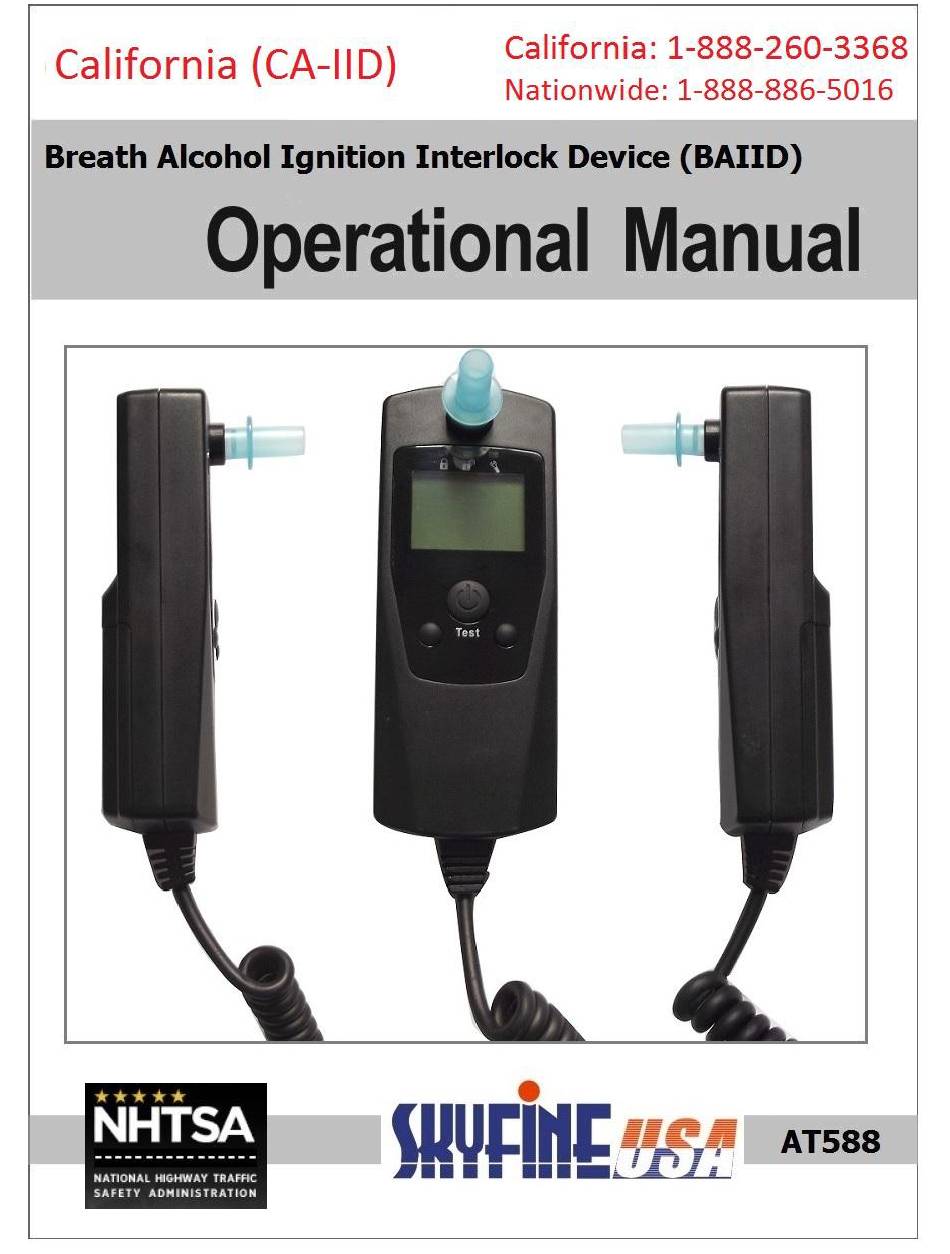

Skyfine AT588 Operation Manual

Breath alcohol ignition interlock device (baiid)
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT588 and is the answer not in the manual?

Questions and answers

Related Manuals for Skyfine AT588

Summary of Contents for Skyfine AT588

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction Important Notes Limit of breath alcohol concentration Service Interval Parameters of Breaches and Lockouts Description of Parts Button Description Operation LED indicating description Specific Instructions Permanent Lock out Violation records Storage and Handling Accessories Trouble shooting Specifications Introduction ...

  • Page 3: Parameters Of Breaches And Lockouts

    Parameters of Breaches and Lockouts ACTION RESULT CONSEQUENCE Initial Breath Test PASS Vehicle can be started Result below legal limit Initial Breath Test FAIL Vehicle cannot be started Result above legal limit (0.03%) Lockout minutes (Early Recall for 5 attempts) (Violation) Initial Breath Test with “HI-BAC”...

  • Page 4: Description Of Parts

    Description of parts Operation  Gently insert the mouthpiece into the blowing tube.  Turn the key of vehicle to ON position.  To power on, press and hold the TEST button until power on then release once device is on. ...
  • Page 5  Breath test: When display reaches 00, wait for audible beep then blow. LCD displays flashing “C-C-C” when it is ready for breathing test. Take a deep breath, blow moderately hard and consistently for approximately 3 seconds until hearing an audible click.

  • Page 6: Button Description

     Breath sample accepted: The test result will be displayed on the screen for 20 seconds. The top LED will indicate green or red light for test result pass or fail.  Block or unblock: The handheld tester indicates green or red light for blocking or unblocking state. Unblocking state: Green solid light, the breath alcohol concentration below limit value, the vehicle can be started.

  • Page 7: Specific Instructions

    LED indications and description (Printed on the back of handset) Green flashing: Waiting for breath test, standby mode. Green solid: Unblocking stage, allow starting vehicle. Yellow flashing: Service required stage (permanent lockout after service warning days). Yellow solid: Permanently lock out vehicle. Red flashing: Short blocking stage, wait 5 minutes for retest.

  • Page 8: Permanent Lockout

    Permanent Lockout  The yellow solid light indicates the device is in the permanent lockout mode.  The vehicle will go in to a permanent lock out mode if the diver goes beyond the service warning time limit. There is a warning sound to remind driver when turning on the ignition.

  • Page 9: Trouble Shooting

    Trouble shooting Error message or Check Description Remarks Troubles -Turn the key of car to ON position first The handheld tester -Beyond operating temperature is unable to work -Temporary lock out if breathing above the limit, need to wait for the red light to turn off -Breathing duration failure -Under lock out mode, check the LED indication when turning the key to the on...

  • Page 10: Specifications

    Specifications (Handheld Tester)  Fuel Cell Sensor for higher accuracy  3 LED indications for test result and IID condition  Non-human breath detection  Initial blowing volume above 1.2 L  Initial blowing time about 3 seconds  Display range: 0.000-0.100%BAC ...
