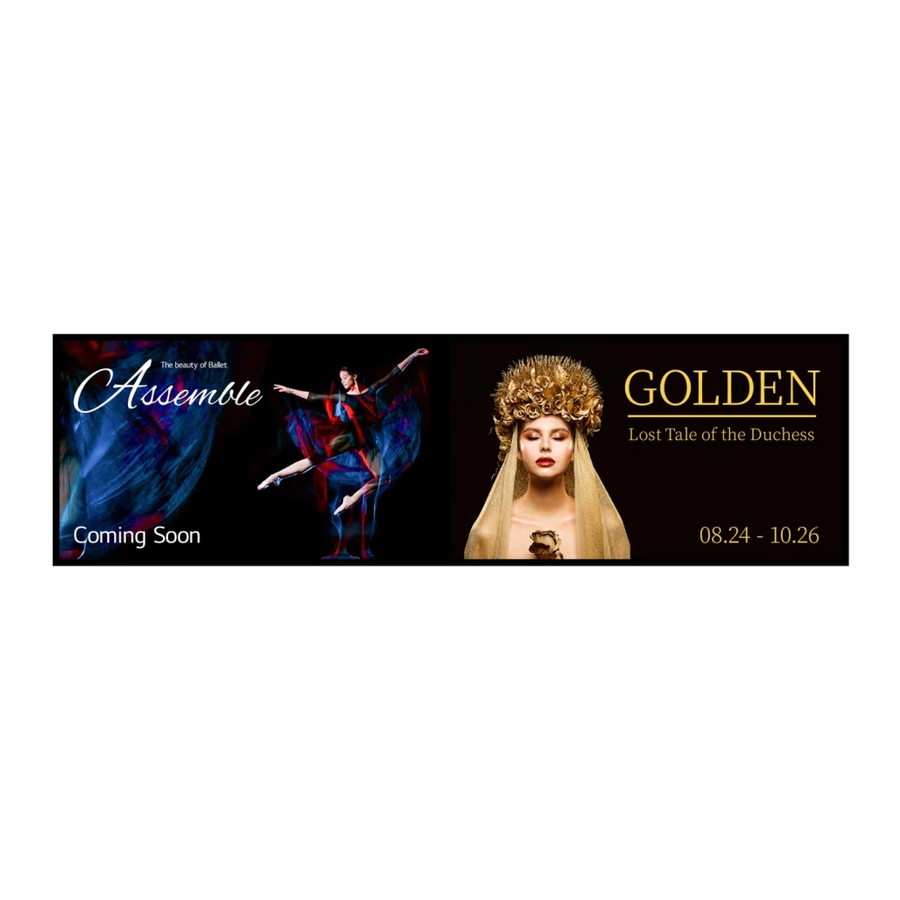

LG 88BH7F Owner's Manual
Monitor signage
Hide thumbs
Also See for 88BH7F:
- Installation manual (8 pages) ,
- Owner's manual (135 pages) ,
- Installation manual (8 pages)
Related Manuals for LG 88BH7F
Summary of Contents for LG 88BH7F
- Page 1 OWNER’S MANUAL LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 88BH7F www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..3 - Electrical Power Related Precautions ....3 - Precautions for installing the Product ....5 - Precautions for Moving the Product ......6 - Precautions for Using/Cleaning the Product ..7 - Product Disposal (Only, Hg lamp used LCD Monitor) .................7 ASSEMBLY AND PREPARATION ..8 - Optional Accessories ............9... -
Page 3: Important Precautions
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. IMPORTANT PRECAUTIONS Please read these safety precautions carefully before using the product. WARNING Failure to follow those warnings may result in death, serious injury or damage to the product or other property. CAUTION If you ignore the caution message, you may be slightly injured or the product may be damaged. - Page 4 • If you don’t intend to use the product for a long time, unplug the power cable from the product. - Layers of dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire. • Insert the power plug firm so it cannot come loose.
-
Page 5: Precautions For Installing The Product
Do not add accessories that have not been designed for this display. • If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG Customer Service. - If you continue to use without taking proper measures, electrical shock or fire can occur. -
Page 6: Precautions For Moving The Product
Precautions for Moving the Product WARNING • Make sure to turn off the product. - You may be electrocuted or the product can be damaged. • Make sure to remove all cables before moving the product. - You may be electrocuted or the product can be damaged. •... -
Page 7: Precautions For Using/Cleaning The Product
Do not attempt to disassemble, repair or modify the product yourself. - Fire or electric shock can occur. - Contact LG Customer Service for repair. • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. -
Page 8: Assembly And Preparation
SuperSign Software & Manual - Downloading from the LG Electronics website. - Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model. • The warranty will not cover any damage caused by using the product in an excessively dusty environment. -
Page 9: Optional Accessories
Optional Accessories Without prior notice, optional accessories are subject to change to improve the performance of the product, and new accessories may be added. The illustrations in this manual may differ from the actual product and accessories. Media Player Kit Screws Media Player Diameter 3.0 mm (0.1 inches) x Pitch... -
Page 10: Parts And Buttons
Parts and Buttons The image may be different according to the model. Buttons • : Changes the input source. • : Accesses the main menus, or saves your input and exits the menus. • : Adjust the up and down. •... -
Page 11: Portrait Layout
Portrait Layout When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen). Removing Protective Plastic Film from Sides before Installation Make sure that the protective plastic film is removed from each corner before installing the product. -
Page 12: Installing On A Wall
Screws which are longer than standard length may damage the inside of the monitor. A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for any accidents related to the use of non-standard screws. -
Page 13: Remote Control
REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching terminals to the labels inside the compartment, and close the battery cover. - Page 14 Selects the Picture Mode. (HOME) Activates the Launcher. Enters the White Balance menu. (SETTINGS) Accesses the main menus or saves your input and exit menus. This function is not supported in this model. (Navigation Buttons) Scrolls through menus or options. Selects menus or options and confirms your input.
-
Page 15: Making Connections
MAKING CONNECTIONS You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided. -
Page 16: Using The Input List
NOTE • For the best image quality, using the monitor with HDMI connection is recommended. • To comply with the standard specifications of the product, make sure to use a shielded interface cable made with a ferrite core for the DisplayPort cable and DVI-D/HDMI cable. •... -
Page 17: Connecting Multiple Monitors
Connecting Multiple Monitors To use multiple products, first connect an external device to the product, connect one end of the supported signal input cable to the connector of the product, and then connect the other end to the connector of the product you wish to connect to. - Page 18 NOTE • In general, up to 100 monitors can be connected via the DP OUT port (at the recommended resolution) if the signal is stable and there is no cable loss. To connect more than 100 monitors, it is recommended to use a distributor. •...
-
Page 19: Troubleshooting
TROUBLESHOOTING No image is displayed. Problem Action Is the product power cord connected? • Check if the power cord is correctly plugged into the power outlet. Does the “Invalid Format” message • The signal from the PC (graphics card) is out of the vertical or appear? horizontal frequency range of the product. - Page 20 After-image appears on the product. Problem Action After-image appears when the product is • If you use a fixed image for a long time, the pixels may be damaged. turned off. Use the screen-saver function. • When a dark image is displayed on the screen after an image with high contrast (black and white or gray), this may cause image sticking.
- Page 21 CAUTION • Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood of image sticking occurring when using a fixed image.
-
Page 22: Product Specifications
PRODUCT SPECIFICATIONS The product specifications below may be changed without prior notice due to upgrade of product functions. “ ” refers to alternating current (AC), and “ ” refers to direct current (DC). Thin Film Transistor (TFT) LCD screen Screen type Liquid Crystal Display (LCD) Screen HDMI1 / HDMI2 / DISPLAYPORT: 3840 x 2160 @ 60 Hz HDMI3 / OPS: 3840 x 2160 @ 30 Hz... - Page 23 88BH7F 0.1865 mm (H) x 0.554 mm (V) LCD screen Pixel pitch AC 100-240 V~ 50/60 Hz 5.5 A Rated power On Mode: 450 W (Typ.) Power Power consumption Sleep Mode: ≤ 0.7 W Off Mode: ≤ 0.5 W 2158.3 mm x 103.9 mm x 611.2 mm / 33.9 kg Dimensions (Width x Depth x Height) / Weight (84.9 inches x 4.0 inches x 24.0 inches / 74.7 lbs)
- Page 24 Wireless module(LGSBWAC72) Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range (MHz) Output power (Max.) (dBm) 2400 to 2483.5 5150 to 5725 14.5 5725 to 5850 14.5 Bluetooth Frequency range (MHz) Output power (Max.) (dBm) 2400 to 2483.5 • As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
- Page 25 DVI-D / HDMI1 / HDMI2 / HDMI3 / DISPLAYPORT / OPS (PC) Support Mode Horizontal frequency Vertical frequency Resolution Remark (kHz) (Hz) 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 1024 63.981 60.02 1680 x 1050 65.29 59.954 1920 x 1080 67.5...
- Page 26 Multi-screen (PC) Support Mode Horizontal frequency Vertical frequency Resolution Remark (kHz) (Hz) Recommended resolution for two- 1920 x 1080 67.5 screen split screen Recommended resolution for three- 1280 x 1080 67.173 59.976 screen split screen (1:1:1) Recommended 960 x 1080 67.188 59.989 1st, 3rd screen...
- Page 27 NOTE • When the cable is connected to the HDMI1 / HDMI2 / HDMI3 / DVI-D / DISPLAYPORT, you can select the PC/DTV mode optionally. It is recommended that you select PC mode when connecting to a PC and select DTV mode when connecting to other devices.
-
Page 28: Licenses
LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories. - Page 29 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 1000 Sylvan Ave Englewood Cliffs, NJ 07632 The model and serial number of the product are Telephone (201)266-2215 located on the back and on one side of the product.
