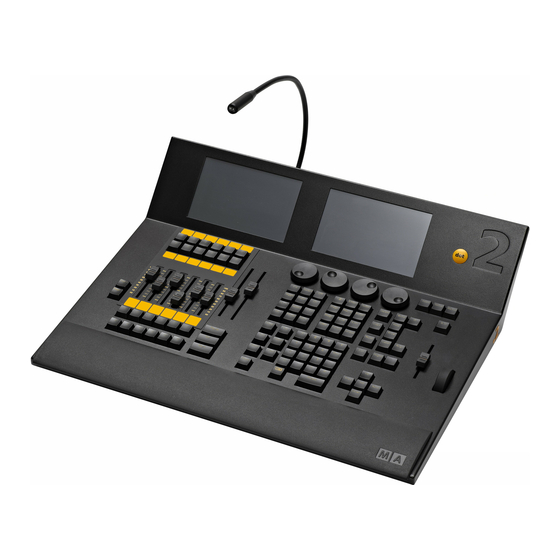

MA dot2 User Manual

dot2 User Manual – Keys
Version 1.5 – 2020-03-23
English

On key

On can be used to turn on inactive executors or to activate values in your programmer.

Turn On an Executor

If you need to turn on an executor you can press
You can also be specific using the keys:
On Exec 1 Please
On can also be assigned to an executor key using the
Executors Buttons window.

Turn On fixtures or values

You can activate values or fixture in your programmer by pressing
If you need to activate an entire fixture you can press
On Fixture 1 Please
Will activate all parameters for fixture one in the programmer.
If you need to activate an entire Preset Type in your programmer you can press
in the preset type bar on screen 1 or use keys:
On + 1 Please
Will activate all dimmer values (preset type 1) for the selected fixtures.
Pressing the key and a number at the same time will give you fast access to the corresponding Preset Type.

Advanced functionality

When you press and hold the
This can be used to call presets.
+ On (gives you the Call command)
This will call the values stored in preset 1 in preset type 4 into your programmer without selecting the fixtures first.
It can also be used to activate values stored in (and up to) a cue.
If you need to store the look of cue 3, you can use the Call function to activate these values using the following keys:
+ On (gives you the Call command)
© 2020 MA Lighting Technology GmbH - Dachdeckerstr. 16 - 97297 Waldbüttelbrunn - Germany
Phone +49 5251 688865-27 - support@ma-dot2.com - www.malighting.com
On then any key associated to the executor.
Assign command
On followed by the fixture in a fixture view or using the command
and then the On key, you'll get the
Preset 4 . 1 Please
Cue 3 Please
( + Label ) or the
On followed by what you want to activate.
On followed by pressing the preset type
Call command.
Change Function of
