Operating and Maintenance Instructions
OXYGEN FM
F M
To order Dual Oxygen Flowmeter,
please put "D" infront of "FM"
Example: DFM - 15 - UO - OH
(Dual Oxygen Flowmeter, US Standard
with an OHMEDA adapter)
PLEASE READ THOROUGHLY AND FOLLOW DIRECTIONS CAREFULLY
SECONDARY MEDICAL PRODUCTS

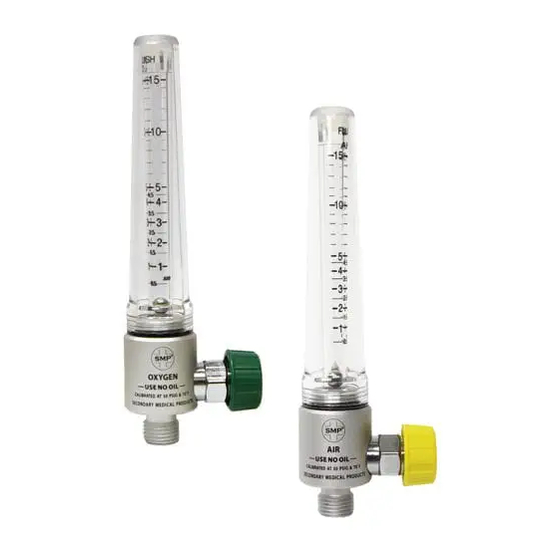

MEDICAL FLOWMETER
"FM" SERIES
-
1 5
Oxygen
I=White
U=Green
BEFORE OPERATING EQUIPMENT
DUAL FM
-
x x
Control Knob
Air
I=Black
U=Yellow
Type of Flowmeter
( A = Air)
( O = Oxygen)
Solutions Start Here
AIR FM
-
x x
Adapter
(XX = No Adapter)
(OH = OHMEDA)
(CH = CHEMETRON)
(JS = JAPANESE STANDARD)
(DN = GERMAN STANDARD)
(BS = BRITISH STANDARD)
(DS = DISS STANDARD)
Advertisement
Table of Contents
Related Manuals for SMP FM Series
Summary of Contents for SMP FM Series
- Page 1 SECONDARY MEDICAL PRODUCTS Solutions Start Here MEDICAL FLOWMETER “FM” SERIES Operating and Maintenance Instructions DUAL FM OXYGEN FM AIR FM Control Knob Adapter (XX = No Adapter) Oxygen (OH = OHMEDA) I=White I=Black (CH = CHEMETRON) U=Green U=Yellow (JS = JAPANESE STANDARD) To order Dual Oxygen Flowmeter, (DN = GERMAN STANDARD) please put “D”...
-
Page 2: Table Of Contents
Read and understand all the safety and operating instructions contained in this booklet before using this product. If you do not understand these instructions, or have any questions, contact your supervisor, dealer or the SMP Canada before attempting to use the device. WARNING: Indicates a potentially hazardous situation, which if not avoided, could result in death or serious injury. -
Page 3: Receiving Inspection
Verify that the model received is in working condition. If the product is damaged or incorrect, do not use. Contact your dealer, equipment provider or SMP Canada right away. ATTENTION: It is crucial to allow the product to remain in the original packaging for 24 hours to adjust to room temperature before use. -
Page 4: Intended Use
Only use an oxygen-safe leak detector when testing for leaks. INTENDED USE The SMP flowmeter is used to dispense an adjustable flow of gas accurately under the direction of a healthcare professional. The gas to which the flowmeter is calibrated depends on the model. Each flowmeter can be used with only one type of gas. - Page 5 Accuracy 0-15 lpm Models From 1 to 5 lpm: ± 0.25 lpm From > 6 to 15 lpm: ± 0.50 lpm Operational Temperature Limits Maximum 120ºF (49ºC) and Minimum 0ºF (-18ºC). Transportation / Storage Temperature Maximum 140ºF (60ºC) and Minimum -40ºF (-40ºC). Calibrated Inlet Pressure Flowmeters are calibrated at 50 psi inlet pressure.
-
Page 6: Operation
OPERATION CORRECT INCORRECT Attach flowmeter to a 345 kPa (50 psi) gas source. Ensure flowmeter is in a vertical position (see above figures) Turn control knob counterclockwise to start/increase flow. Adjust to desired flow setting. Take reading at centre of ball. WARNING: Always verify flow at patient’s end of tubing before applying. -
Page 7: Maintenance And Repair
DO NOT attempt to install or operate this device until you have read and fully understand these instructions. If you do not fully understand these instructions, Contact your dealer, equipment provider or SMP Canada for more information. MAINTENANCE AND REPAIR Cleaning Instructions: Use a clean damp cloth with a mild cleaning solution to wipe the outside of the flowmeter. - Page 8 Parts Description...
- Page 9 Item Part No. Description Quantity PL-Washer Filter net Included with each O-Ring-P6 option below Meter base - O2 Meter base - Air Option 1: FM-BOI Control Knob Oxy - White (ISO) Option 2: FM-BAI Control Knob Air - Black (ISO) Option 3: FM-BOU Control Knob Oxy - Green (US) Option 4: FM-BAU...
- Page 10 Knob will not turn Valve seized Replace body assembly Repairs Contact your dealer or the technical support department at SMP Canada for assistance if this device malfunctions. WARNING: When changing connectors on the flowmeter for service or replacement, never re-attach connectors of a different gas. Doing so may result in patient injury or damage to the product.
-
Page 11: Reusable Humidifier
REUSABLE HUMIDIFIER (Optional) Purpose The SMP reusable humidifier utilizes a diffuser type humidification process to provide stable moisture content for maximum patient comfort during the administering of oxygen. Specification 135ml max. line 2psi release WARNING & CAUTIONS FOR OPERATION Remove product from package and inspect for damage. If there is any damage, do not use. - Page 12 Do not use oil, grease, organic lubricant or any combustible materials on or near this product. Never use in a place near any type of flame or flammable/ explosive substances, vapors or atmosphere. Always confirm prescribed flow before administering to the patient and monitor flow on a frequent basis.
-
Page 13: Warranty
Maintenance Only qualified personnel should repair this product. Unauthorized disassembly or attempt to repair it will cause damage to the product and void warranty. The product can be sterilized with E.O Gas. The bottle assemblies can be autoclavable at high pressure and temperature of 121°C for 10 mins. - Page 14 Notes:...
