SMP TechSmart T55003 Manual

T55003
TPMS Tool Manual
1. T55003 INTRODUCTION
The T55003 interacts with the tire pressure sensor through
wireless (radio frequency) communication to:
• Retrieve data from the tire pressure sensor
• Verify the identities of each tire
pressure sensor mounted on vehicle
• Assist a technician to reset TPMS
on the vehicle
9 volt battery Included,
rechargeable – install in
back of tool prior to operation
USB Connection – to connect
with computer to download
software updates
2. KEYPAD SUMMARY AND FUNCTIONS
Power Key – power on the tool;
check battery status
Arrow Keys – navigation through menu
and adjust options up and down
Cancel Key – press to return to the
previous menu without option validation
or press and hold to turn off tool
To ensure correct operation and service, read the following
instructions before operating the T55003 Tool.

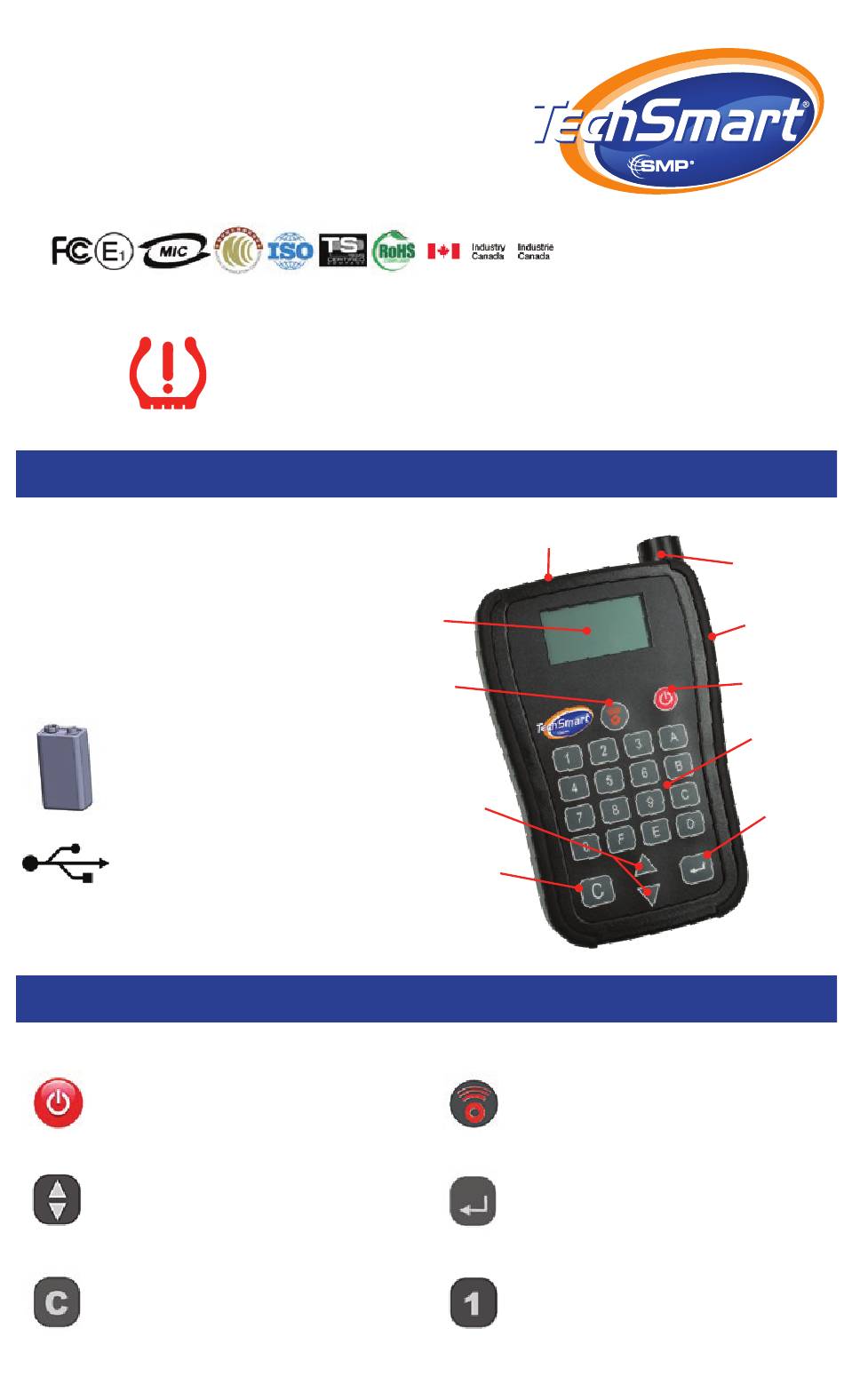

Display
Transmit
Cradle
LCD
Key
Arrow
Keys
Cancel
key
Transmit Key – to start a test cycle
Selection Key – press to enter chosen
function or validate an option
Keypad – key in sensor identification number
Antenna
USB
Port
Power
Key
Keypad
Selection
Key
1
