Tips & Techniques:

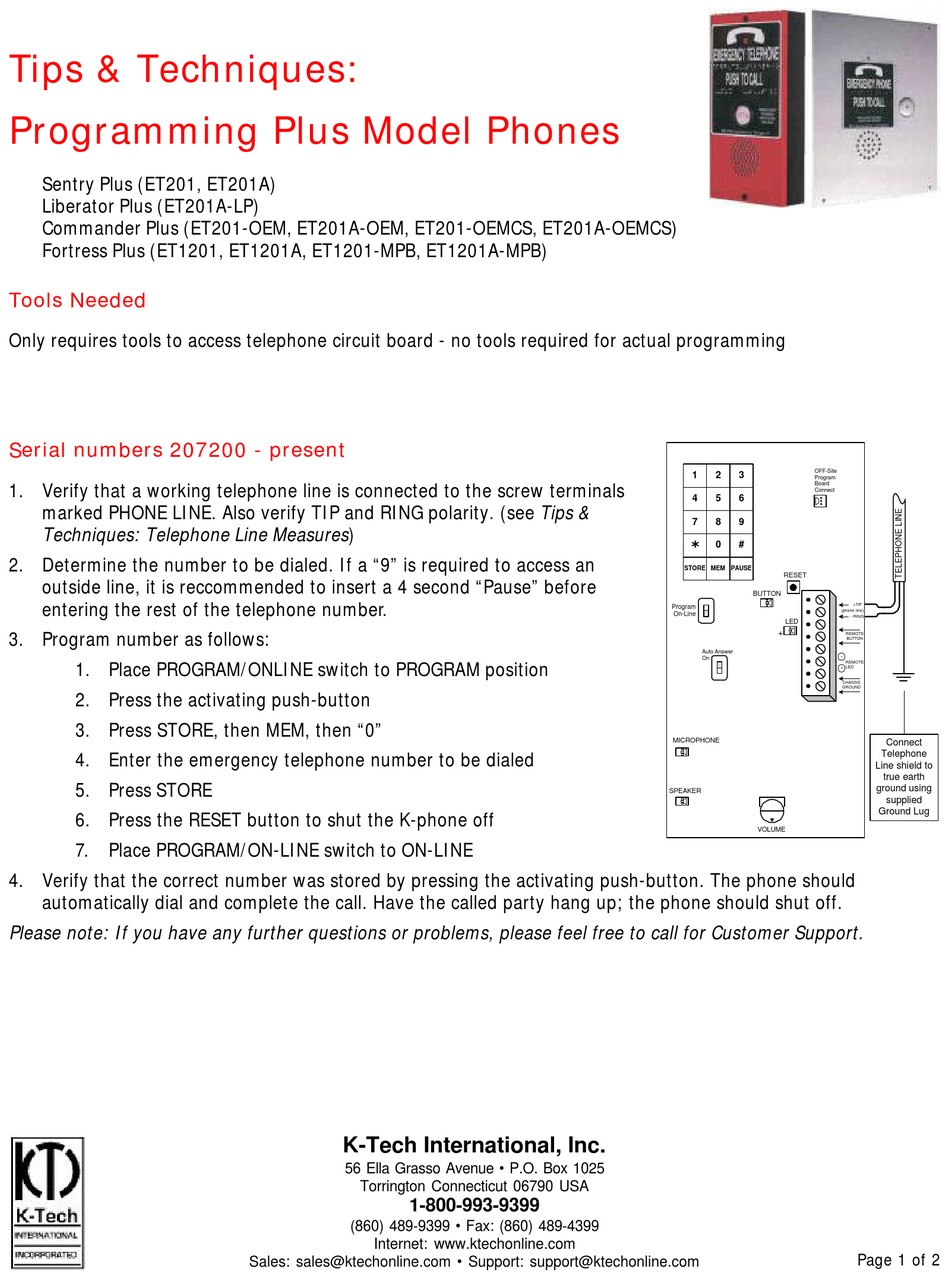

Programming Plus Model Phones

Sentry Plus (ET201, ET201A)
Liberator Plus (ET201A-LP)
Commander Plus (ET201-OEM, ET201A-OEM, ET201-OEMCS, ET201A-OEMCS)
Fortress Plus (ET1201, ET1201A, ET1201-MPB, ET1201A-MPB)

Tools Needed

Only requires tools to access telephone circuit board - no tools required for actual programming

Serial numbers 207200 - present

1. Verify that a working telephone line is connected to the screw terminals
marked PHONE LINE. Also verify TIP and RING polarity. (see Tips &
Techniques: Telephone Line Measures)
2. Determine the number to be dialed. If a "9" is required to access an
outside line, it is reccommended to insert a 4 second "Pause" before
entering the rest of the telephone number.
3. Program number as follows:
1. Place PROGRAM/ONLINE switch to PROGRAM position
2. Press the activating push-button
3. Press STORE, then MEM, then "0"
4. Enter the emergency telephone number to be dialed
5. Press STORE
6. Press the RESET button to shut the K-phone off
7. Place PROGRAM/ON-LINE switch to ON-LINE
4. Verify that the correct number was stored by pressing the activating push-button. The phone should
automatically dial and complete the call. Have the called party hang up; the phone should shut off.
Please note: If you have any further questions or problems, please feel free to call for Customer Support.
K-Tech International, Inc.
56 Ella Grasso Avenue • P.O. Box 1025
Torrington Connecticut 06790 USA
1-800-993-9399
(860) 489-9399 • Fax: (860) 489-4399
Internet: www.ktechonline.com
Sales: sales@ktechonline.com • Support: support@ktechonline.com
OFF-Site
1 2 3
Program
Board
Connect
4 5 6
7 8 9
Ý
0 #
STORE MEM PAUSE
RESET
BUTTON
Program
(phone line)
On-Line
LED
+
REMOTE
BUTTON
Auto Answer
-
On
REMOTE
LED
+
CHASSIS
GROUND
MICROPHONE
SPEAKER
VOLUME
+TIP
- RING
Connect
Telephone
Line shield to
true earth
ground using
supplied
Ground Lug
