CM589-PNIO(-4)

Certification

14.4.1

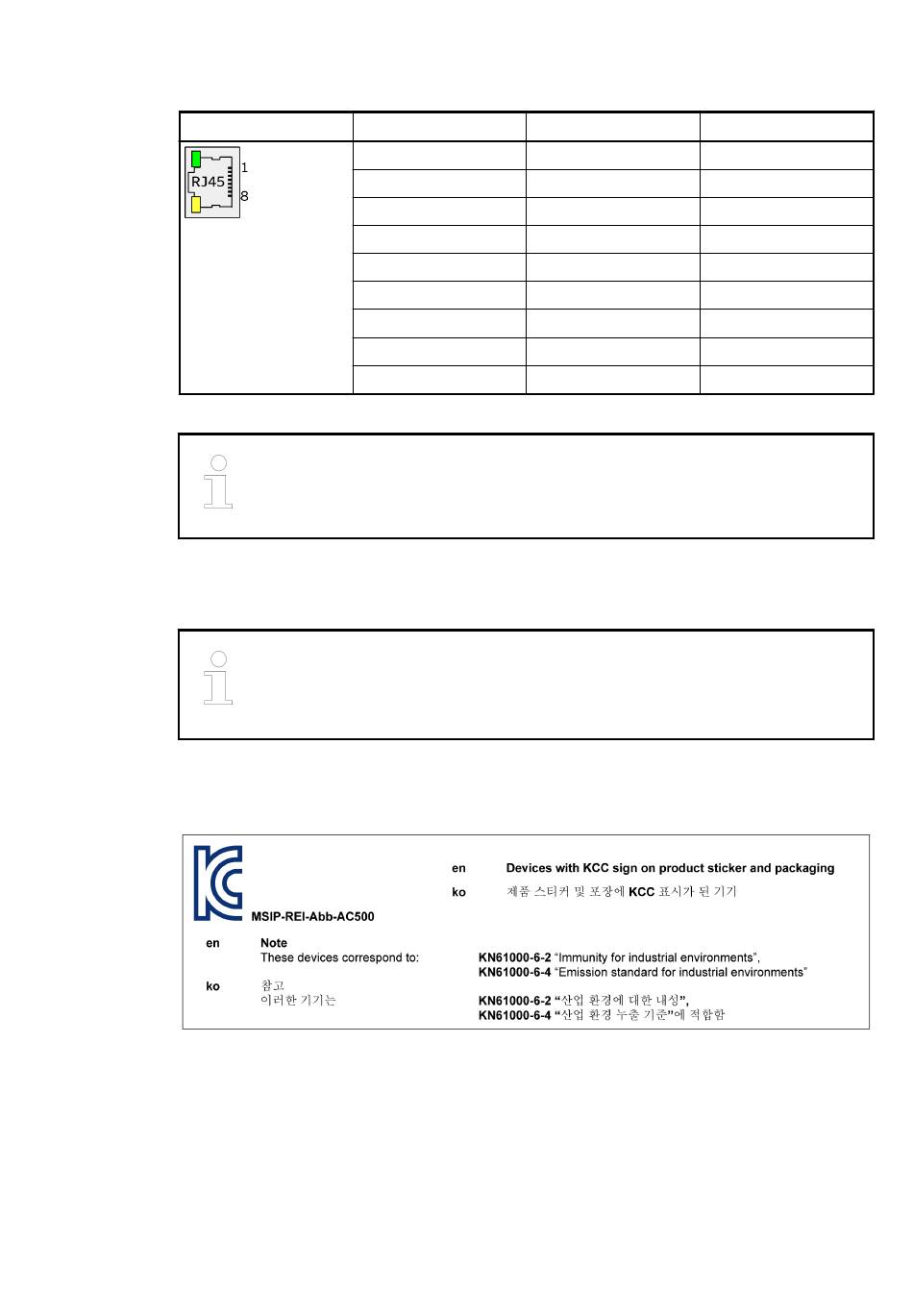

Ethernet Network Interface

Pin Assignment
14.5

Cleaning

14.6 Certification
116
Pin
1
2
3
4
5
6
7
8
Shield
In corrosive environment, please protect unused connectors using the TA535
accessory.
Not supplied with this device.
Cleaning instruction
Do not use cleaning agent for cleaning the device.
Use a damp cloth instead.
3ADR024117M02xx, 11, en_US
Signal
TxD+
TxD-
RxD+
NC
NC
RxD-
NC
NC
Cable shield
Description
Transmit data +
Transmit data -
Receive data +
Not used
Not used
Receive data -
Not used
Not used
Functional earth
2019/11/15
