LiteOn Leotek Arieta ComfortGuide Installation Manual

Arieta™ ComfortGuide™ LED Area Light
Installation Guide
This procedure is designed as an installation aid. Skilled tradespeople that are familiar with general construction and electrical
installation techniques should perform the installation. Licensed electricians should provide electrical installation connections.
Installations and connections should be done in accordance with all national and local codes and permits. In no way is this
document intended to construe warranty or fitness of use of the products described, nor is it intended to provide safety
instruction for those installing the product.

WARNING

Before proceeding with installation or service maintenance of this product:
• Disconnect power to reduce electrical shock risk.
• Review the entire Installation Guide.
• Inspect this properly packaged product for any damage that may have occurred during transit.
• Verify product application complies with manufacturer design recommendations.
• Verify the availability of necessary tools and incidental material.
• Verify applicable code requirements. Field assembly and installation are subject to acceptance by local inspection authority.
• Appropriate safety equipment to be determined by end user, per applicable safety standards and precautions.
B
A
© 2020 Leotek Electronics USA LLC
ComfortGuide_Installation_Guide_1-2-20

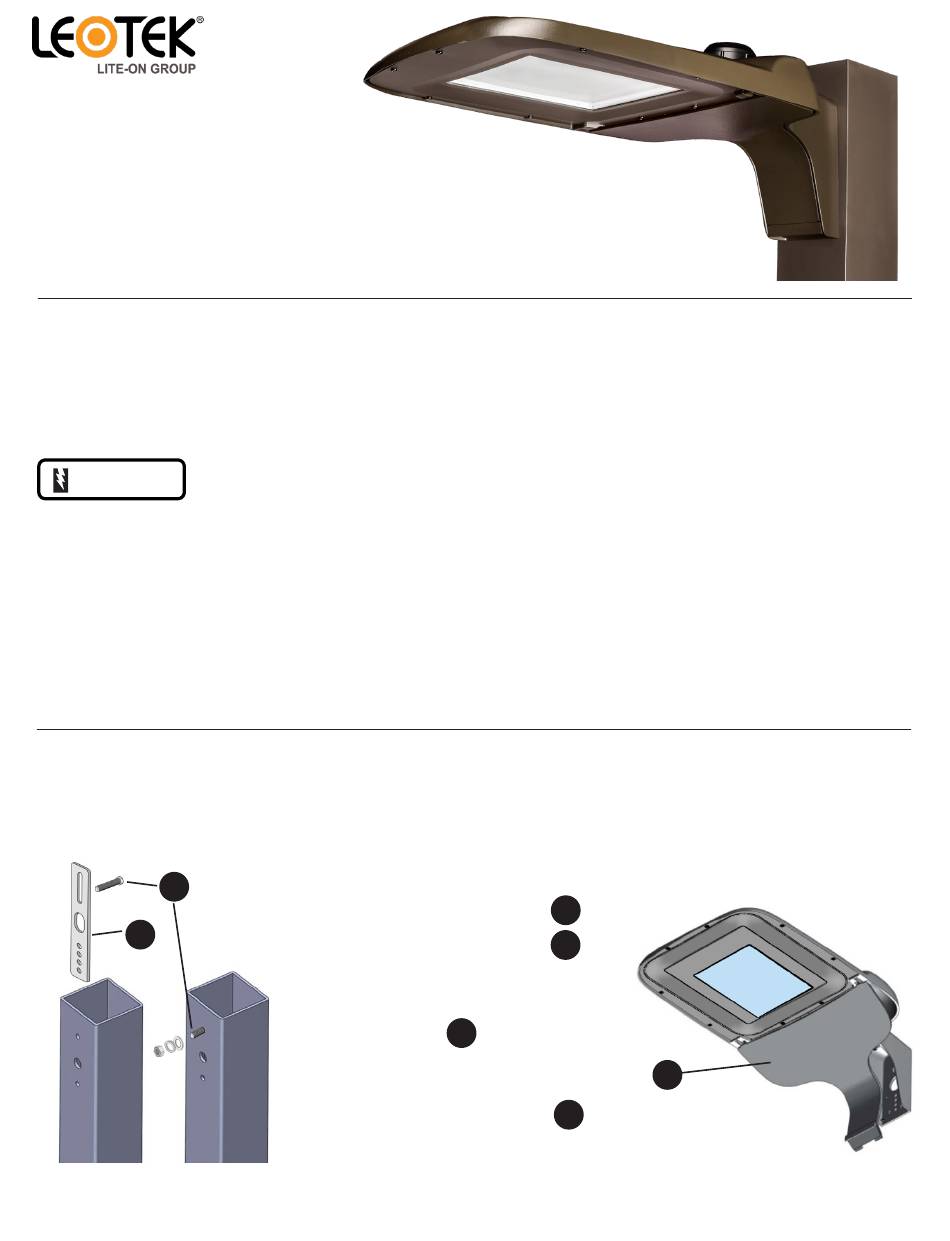

Standard Luminaire Installation

• Arieta's universal mount is ideal for retrofit applications
• For new installations, see page 3 for drilling dimensions
• See page 4 for Wall Mount installation
Step 1 - Install the back plate
inside the pole with top bolt.*
Step 2 - Install nut/washer
near end of bolt.
Step 3 - Open the power door.
*Back plate and hardware provided with fixture.
A
B
B
C
C
Page 1 of 4
