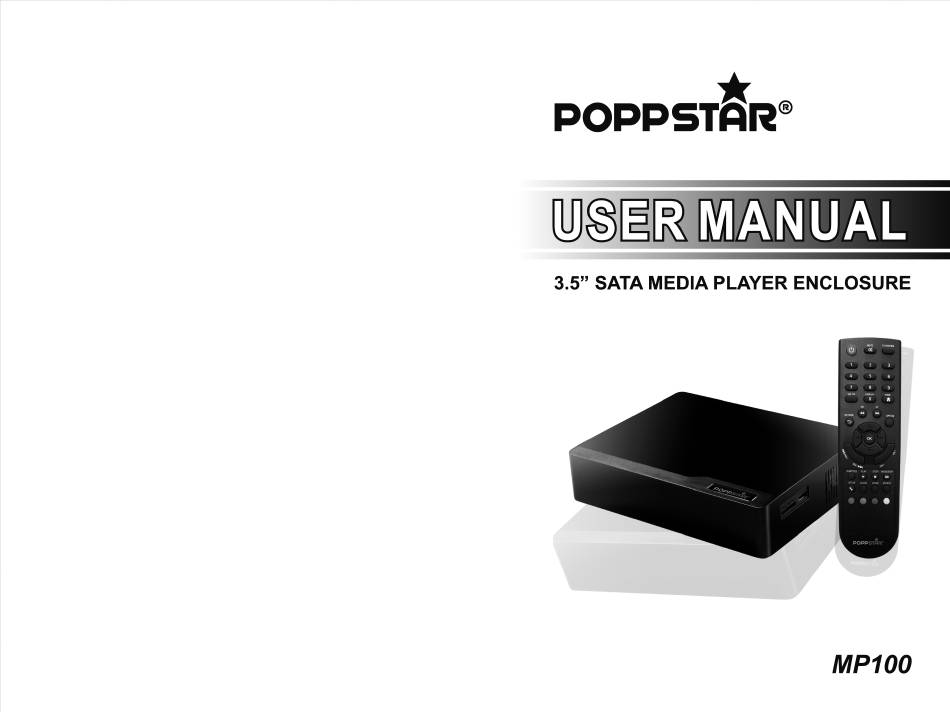

Poppstar MP100 User Manual

3,5" full hd sata media player enclosure
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Poppstar MP100

  • Page 2: Table Of Contents

    MP100 Benutzerhandbuch Inhalt KURZE EINFÜHRUNG.............. 1 ..............1 ESONDERHEITEN ..............1 RUNDAUSFÜHRUNG PRODUKTDETAILS ..............2 ............... 2 ERPACKUNGSINHALT ................. 2 RONTANSICHT ................3 ÜCKANSICHT ..............4 ERNBEDIENUNG GRUNDLEGENDE BEDIENUNG..........6 ..............6 NBETRIEBNAHME PRODUKTGEBRAUCH ............9 ................. 10 ETUP ENÜ...
  • Page 3: Kurze Einführung

    Kurze Einführung Besonderheiten Der Poppstar MP 100 aus der High Definition Media Player Serie von Poppstar, spielt Ihre Lieblingsbilder, -lieder und -videos von der eingebauten Festplatte, externen Speichergeräten und Speicherkarten wie z.B. SD (Secure Digital)-Karte, MMC (Multi Media Card) auf einem angeschlossenen Video/Ton-Wiedergabegerät ab.
  • Page 4: Produktdetails

    Produktdetails Verpackungsinhalt Überprüfen Sie das Zubehör nachdem Sie das Gerät erhalten haben. Sollte etwas fehlen, wenden Sie sich bitte umgehend an Ihren Händler. Bezeichnung Anzahl Media Player Netzteil Fernbedienung USB-Kabel AV-Kabel Batterien Handbuch Schrauben einige Frontansicht...
  • Page 5: Rückansicht

    Bezeichnung Anmerkung Leuchtet blau, während Gerät ① Power/Stand-by angeschaltet ist Leuchtet rot, während das Gerät ausgeschaltet ist. ② 2-in-1 Kartenleser Unterstützt SD, MMC So verwenden Sie Speicherkarten: Das Produkt hat einen integrierten Multimediakartenleser, welcher Speicherkarten wie SD-Karten und MMC unterstützt. Schieben Sie die Speicherkarte vorsichtig mit der Pfeilseite nach oben in den Kartenleser bis Sie ein "Klick"...
  • Page 6: Fernbedienung

    Composite- Geimeinsamer Ausgang von videoanschluss Ton und Bild ⑥ DC IN Stromanschluss Anschluss des Netzgerätes Fernbedienung Taste Funktion POWER An- und Ausschaltknopf MUTE Ton aus Wechsel zwischen AV- und HDMI- SYSTEM Ausgabe Zahleneingabe Sprung zu einer bestimmten Stelle GOTO während der Wiedergabe Anzeige von Zeit, Titel, Informationen DISPLAY über das angezeigte Video/Bild...
  • Page 7 Bestätigung der Auswahl und Start der Wiedergabe PREV Sprung zur vorherigen Datei NEXT Sprung zur nächsten Datei VOL- Lautstärke verringern VOL+ Lautstärke erhöhen Aufruf des Untertitelmenüs während SUBTITLE der Wiedergabe PLAY Wiedergabe der ausgewählten Datei STOP Stopp der Wiedergabe der Datei PAUSE/ Pausieren der Wiedergabe STEP...
  • Page 8: Grundlegende Bedienung

    Grundlegende Bedienung Inbetriebnahme 1. Stromanschluss Entnehmen Sie das Netzteil der Verpackung und verbinden Sie es mit dem Gerät und der Steckdose 2. Verbindung mit Ausgabegeräten Das Gerät ist mit mehreren Anschlüssen versehen wie Composite(AV), Koaxial und HDMI. Sie können den Anschluss je nach Bedarf auswählen.
  • Page 9 Hinweis: Sie müssen den “PAL/NTSC”-Ausgang auswählen, falls kein AV-Video-Ausgang vorhanden ist. Verbindung mit dem Koaxial Ausgang Verbinden Sie den Koaxial Anschluss des Media Players über das Koaxial Kabel mit dem Koaxial Anschluss eines anderen Video- oder Audio-Gerätes. Aktivieren Sie dann den Audio-Anschluss des Produktes und wählen Sie die digitale Ausgangs-Option “SPDIF”.
  • Page 10 1. Verbindung zum Stromanschluss Während Sie Ihren Player mit dem PC verwenden, ist der Stromanschluss nötig. 2. Verbindung mit dem PC über USB Kabel Verbinden Sie den Poppstar MP 100 über ein USB Kabel mit Ihrem PC.
  • Page 11: Produktgebrauch

    Danach können Sie Daten kopieren und transferieren. Schalten Sie den PC an und starten Sie das System. Der PC erkennt das Gerät automatisch. Danach kann Gerät externs Massenspeichergerät verwendet werden. Nachdem Sie den Datentransfer beendet haben, entfernen Sie das Gerät sicher.
  • Page 12: Setup Menü

    die Funktion jeder Option verstehen. Hauptmenü: Im Hauptmenü gibt es vier verschiedene Optionen zur Auswahl. Sie kommen ins Hauptmenü, indem Sie auf der Fernbedienung auf den “Home” Knopf drücken. Sie können wählen zwischen LOCAL HDD, USB DEVICE, Smart Card und Setup, indem Sie die Knöpfe “ ” und “...
  • Page 13 System Setup: Language: Auswahl der Sprache auf dem Bildschirm (OSD: On Screen Display). Drücken Sie um eine Sprache zu wählen. Bestätigen Sie dies mit “OK”. Subtitle: Schaltet die Untertitelfunktion an oder aus. Screen: Stellen ein, nach vielen Minuten Bildschirmschoner aktiviert werden soll. Sie können zwischen 2, 5 und 10 Minuten wählen oder den Bildschirmschoner deaktivieren.
  • Page 14: Bilder Modus

    1080i 60HZ, 1080P 50HZ, 1080P 60HZ Resume Play: An/Aus. Wird ein Film per Pausentaste unterbrochen, erfasst das Gerät die Zeit, in der der Film unterbrochen ist und der nächste Benutzer kann “Resume Play” betätigen, damit der Film von der letzten Pause an wieder widergegeben wird. Dieser Vorgang unterstützt nur die eingebaute Festplatte und die entfernbaren Speichergeräte, jedoch nicht Ihren DVD Driver.
  • Page 15: Musik Modus

    Wenn Sie einen Ordner geöffnet haben, drücken Sie “ ” und “ ”, um ein Foto zu markieren und drücken Sie “OK”, damit das Foto auf dem gesamten Bildschirm angezeigt wird. Wenn Sie Fotos durchstöbern möchten, drücken Sie UP und DOWN, um das letzte oder das nächste Foto anzuzeigen.
  • Page 16: Film Modus

    Hinweis: Wenn Sie die gelbe oder grüne Taste auf Ihrer Fernbedienung drücken, werden keine Musik-Dateien angezeigt. Ein Miniaturbild erscheint auf dem Bildschirm, dort finden Sie Informationen zu Ihren Liedern. Drücken Sie “ ” und “ ”, um die Datei, die Sie abspielen möchten, auszuwählen und bestätigen Sie dies mit “OK”. Diese Funktion unterstützt MP3, WMA, AAC und APE.
  • Page 17 Fernbedieneung die rote bzw. gelbe Taste drücken. Wenn Sie die gelbe Taste drücken werden alle Ordner und unterstützten Videodateien angezeigt. Drücken Sie die rote Taste werden alle Ordner und unterstützte Video-, Audio- und Bilddateien angezeigt. Hinweis: Wenn Sie die anderen zwei farbigen Tasten auf der Fernbedienung drücken, werden keine Filmdateien angezeigt.
  • Page 18: Untertitel

    Untertitel Der Mediaplayer unterstützt die Untertitelformate SSA, SUB, SRT. Stellen Sie sicher, dass die Untertiteldatei und die Videodatei im selben Ordner liegen und den selben Namen haben. Wenn Sie die Datei abspielen, drücken Sie die SUBTITLE-Taste auf der Fernbedienung, um das Untertitelmenü...
  • Page 19 Untertitel SSA, SRT, SUB Bild JPG/BMP/PNG AC input:100V~240V,50/60HZ Stromanschluss DC output:12V, 2A Abmessungen 215×164.6×56.5mm Gewicht etwa 750g (ohne Festplatte) Unterstützte Video-, Audio- und Bildformate: Kodierung Formate Auflösung 320×240 MPEG-1 720×576 720×576 MPEG-2 1920×1080P 1920×1080P MPEG-4, DIVX, 1920×1080P XVID VIDEO 1920×1080P RM/RMVB RM/RVMB 1920×1080P...
  • Page 20: Hinweise Zur Ordnungsgemäßen Nutzung

    Benutzen Sie Ihren Poppstar MP 100 bitte bei einer Raumtemperatur zwischen 10~35℃. Sorgen Sie dafür, dass der Poppstar MP 100 ausreichend Platz für eine Abstrahlung seiner Eigenwärme hat. Dies bedeutet, dass rund um den Poppstar MP 100 ein Freiraum von mindestens 15 cm sein muss.
  • Page 21 Gerät lösen können. Q: Ich habe das Gerät mit dem Fernseher verbunden. Wieso wird kein Bild auf dem Fernseher angezeigt bzw. kein Ton über den Fernseher wiedergegeben? A: Dieses Problem hat mehrere Ursachen. Bitte überprüfen Sie folgendes: 1) Bitte stellen Sie sicher dass die korrekte AV-Quelle auf Ihren Fernseher ausgewählt ist.
  • Page 22 Bitte schalten Sie das Gerät aus, indem Sie den An-/Ausschalter auf der Fernbedienung bzw. am Gerät betätigen. Q: Die Sprache des Menüs ist falsch eingestellt. Wie kann ich dies ändern? A: Um die Sprache zu ändern, gehen Sie in die Einstellungen. In den Systemeinstellungen wählen Sie dann die gewünschte Sprache aus und Bestätigen mit „OK“...
  • Page 23 MP100 USER MANUAL Contents BRIEF INTRODUCTION..............1   ................... 1   EATURE ............... 1   ASIC PERFORMANCE PRODUCT DETAILS................ 2   ................... 2   ACKING LIST ..................2   RONT VIEW ..................3   ................4   EMOTE CONTROL BASIC OPERATION ................ 6  ...
  • Page 24: Brief Introduction

    Brief introduction Feature This product is a new type of family high-definition home video player, which can play your favorite pictures, audio/videos files from the built-in Hard Disk Drive, external storage device and memory card including SD (Secure Digital) card, MMC (Multi Media Card) to a connected audio/video playback device.
  • Page 25: Product Details

    Product details Packing list Check the accessories after receive the product. If there are some missing, please contact immediately with your supplier to insure your consumer’s right. Item Quantity media player Power adaptor Remote control USB cable AV cable Batteries User’s Manual Screws several...
  • Page 26: Back View

    Element Definition Element Remark ① Turns blue while switched on and turns Power/Stand-by red while switched off ② 2-in-1 card reader Supports SD, MMC How to use memory cards: The Product has an integrated multimedia card reader supporting memory cards including SD, and MMC. Gently insert the memory card into the reader with the arrow side upward until there goes a “click”...
  • Page 27: Remote Control

    Composite video Outputs composite video output port and audio ⑥ DC IN Power port Inputs power Remote control NUMBER BUTTON FUNCTION POWER Turn on and off in the stand by mode MUTE Turn on or shut audio output Press to switch between AV out and SYSTEM HDMI out Press to input digital...
  • Page 28 PREV Press to return to previous file NEXT Press to go to next file VOL- Press to decrease the volume VOL+ Press to increase the volume Press to set the type, color, the text SUBTITLE encoding format ,size of subtitle, when playing the video Press to play media file and to PLAY...
  • Page 29: Basic Operation

    Basic operation Usage preparing 1,Power connection Take out power adapter from the package and connect 2,Connection of TV audio and video output The product is designed with multi-output, including composite (AV), Coaxial and HDMI. Individuals can select different interface according various need.
  • Page 30 Coaxial output: Connect the Coaxial connector of the media player with the coaxial connector of other video or audio device by Coaxial cable. Then enter the product's audio output format interface, select the Digital Output option "SPDIF”. It is available to enjoy 5.1 high quality sounds through a multi channel decoder/amplifier with coaxial input.
  • Page 31 variety of high-definition formats high-fidelity audio and video files stored in external storage devices. To watch HD movies and digital photos are more palatable, at the same time the output digital audio signals to audio equipment can feel the shock of high-fidelity sound effects. How to connect USB interface to PC This HDD Player is also a personal multimedia files storage device and can be used by connecting to PC via USB interface.
  • Page 32: Operation Of Product Usage

    2, If there is no USB detected after connected with USB cable, maybe the PC is operating other program, please pull off the USB cable and wait about 10 seconds then connect again. This HDD Player is also a personal multimedia files storage device and can be used by connecting to the PC.
  • Page 33: Setup Menu

    Under the main interface, you may select the LOCAL HDD, USB Device, Smart Card, Setup icon by press “ ” and “ ” key on the remote control, then press “OK” key to browse or play the corresponding files stored the HDD, the external USB, card and the card reader.
  • Page 34: Picture View Mode

    Pressing the navigation keys to select. Screen saver mode will automatically start after 2, 5 or 10 minutes of non activity. Restore Default: To restore the factory’s default settings System Info: View software version information Audio Setup: Select to choose the audio output: Normal:Digital signal is directly outputted through product SPDIF:Digital audio signal is decoded by the product outputs through optical.
  • Page 35: Music Play Mode

    key, all folders and supported picture files will be displayed, if you press red key, all folders and supported video, audio and picture files will be displayed. ( Note : If you press the other two color of buttons on remote there will no photo files display)...
  • Page 36: Movie Play Mode

    key, all folders and supported music files will be displayed, if you press red key, all folders and supported video, audio and picture files will be displayed. ( Note : If you press the other two color of buttons on remote there will no music files display)...
  • Page 37: Subtitle

    yellow key, all folders and supported movie files will be displayed, if you press red key, all folders and supported video, audio and picture files will be displayed.(Note :If you press the other two color of buttons on remote there will no movie files display) Enter the folder press “...
  • Page 38 show / hide the subtitle setup menu and realize subtitles settings. If using external subtitles in a movie, press the arrow keys on the remote control to select the option to adjust and press OK to confirm. Then we can set the encode format , font size, font color of the subtitle and subtitle selection by pressing UP/DOWN arrow key on remote control.
  • Page 39 Supported video, audio and picture formats as follows DECODE FORMARTS RESOLUTION 320×240 MPEG-1 720×576 720×576 MPEG-2 1920×1080P 1920×1080P MPEG-4, 1920×1080P DIVX, XVID VIDEO 1920×1080P RM/RMVB RM/RVMB 1920×1080P 1920×1080P 1920×1080P H.264 1920×1080P 1920×1080P Support Support AUDIO Support Support JPG/JPEG Support PICTURE Support Support Note: Up to the improvement, the appearance and specification will be...
  • Page 40: Maintenance Notice

    Maintenance notice To protect the normal use of all accessories, please kindly make sure to understand and pay attention to following points. Power input AC100~240V, output DC 12V/2A. Under normal working status, power adapter will keep warming, but body temperature of 60 degree or under is normal. Please be sure of aeration under normal working status, do not put the device in bed, sofa, or similar area where cooling effect is no good.
  • Page 41 the video and audio signals. Information on the correct connection of the Player to your home entertainment system can be found in the “Connection of TV audio and video output” chapter in the basic operation instructions. 3) The output signal of the player does not match the signal source of the TV. Press “Video”...
  • Page 42: Others

    Q: I have adjusted the settings of the Player under "Settings" and would like to restore the factory defaults. A: execute the setting menu item "Restore defaults ". The Player will be reset to the factory defaults. The saved files are not deleted when you do this. Q:When I try to disconnect the USB device, I keep on getting the device Generic volume cannot be stopped right now.
