ReelCraft BA34000 M Series Operating Instructions

Operating Instructions
Series BA34000 M Hand Crank Reels
Twin Hydraulic Model Numbers:
BA34106 M BA34118 M
BA34112 M BA34122 M

Safety Precautions

Personal injury and/or equipment damage may result if proper safety precautions are not observed.
• Ensure that the reel has been properly installed before connecting supply line (see installation instructions).
• Before connecting reel to supply line ensure that supply line pressure does not exceed maximum rated working pressure of reel.
• Bleed fluid/gas pressure from system before servicing reel.
• Do not play pranks on other personnel. Even low pressure is very dangerous and can cause irreparable damage or death.
• Do not wear loose fitting clothing while operating reel.
• Be aware of other personnel in work area.
• Be aware of other machinery in work area.
• If a leak occurs in the hose or reel, remove supply line pressure immediately.
• If the reel is power driven check for loose, frayed, and/or broken wires before operating.
• Pull hose from reel by grasping the hose itself, not the control valve.
• If reel ceases to unwind or rewind, remove system pressure immediately. Do not pull or jerk on hose!
• Treat and respect a hose reel as any other piece of machinery, observing all common safety practices.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
BA34128 M

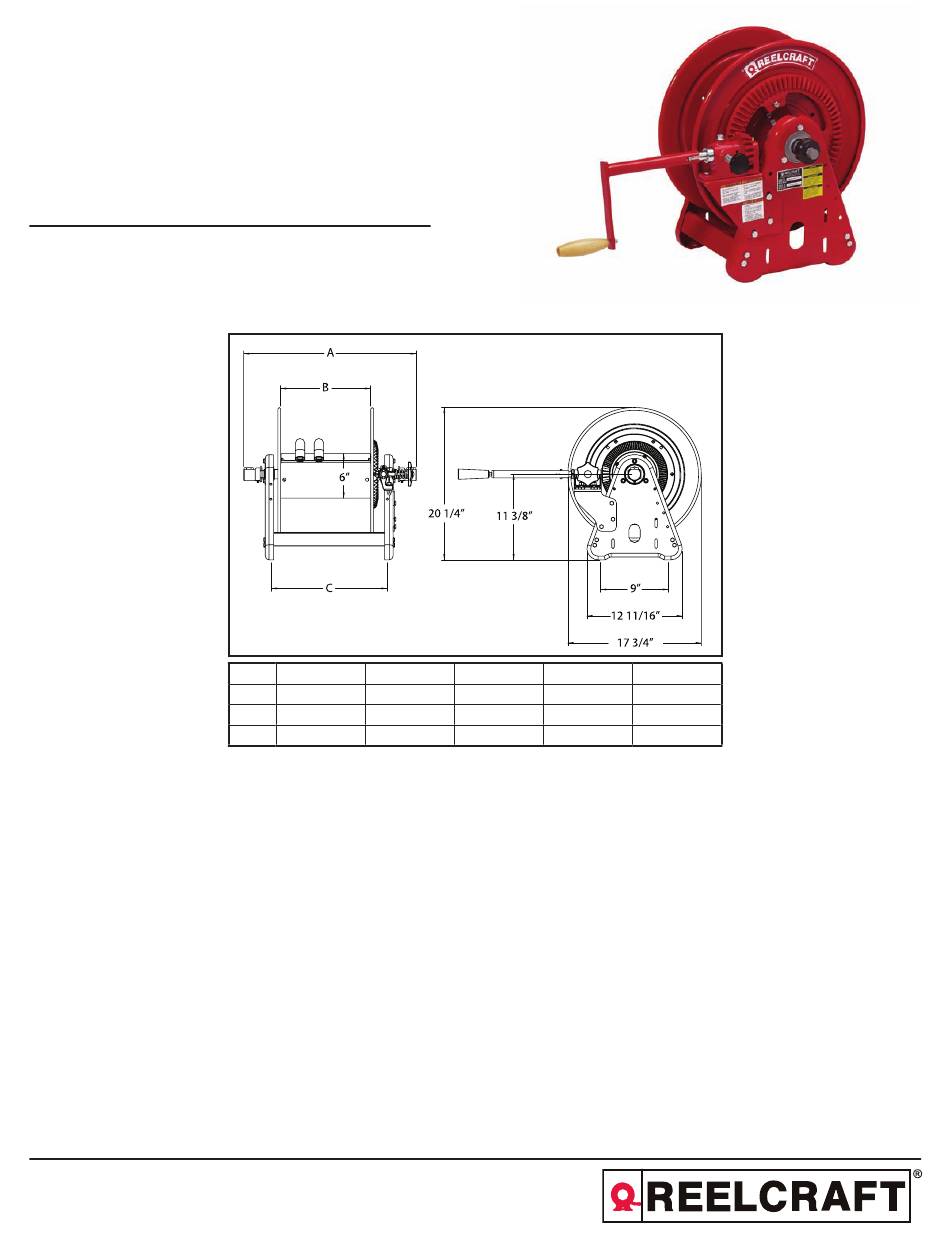

Dimensional Data

BA34106 M BA34112 M BA34118 M BA34122 M BA34128 M
A
17" 23"
B
6" 12"
C
9.75" 15.75"
29" 33"
18" 22"
21.75" 25.75" 30.75"
38"
27"
Form# 1242-612 Rev: 3/2016
