Del ozone Total Eclipse Series Installation & Operation Manual page 9

Note:
1. "V" stands for multiport, diverter valve.
2. The Total Eclipse will shut down when in Spa
Mode and will restart when returned to Pool Mode.
3. We suggest using an eyeball fitting or reducer
nozzle at the point of entry (ie: the wall). This
will help to break up the bubbles and push them
further out, preventing any possible
discoloration to the pool wall.
Spa Combination without Infloor Cleaning System
Note:
1. "ICS" stands for Infloor Cleaning System.
2. The Total Eclipse will shut down when in Spa
Mode and will restart when returned to Pool Mode.
3. Even when the ICS is not operating, bubbles
from the ozone generator will escape through
the ICS head.
Spa Combination with Infloor Cleaning System
Total Eclipse Installation & Operations Manual

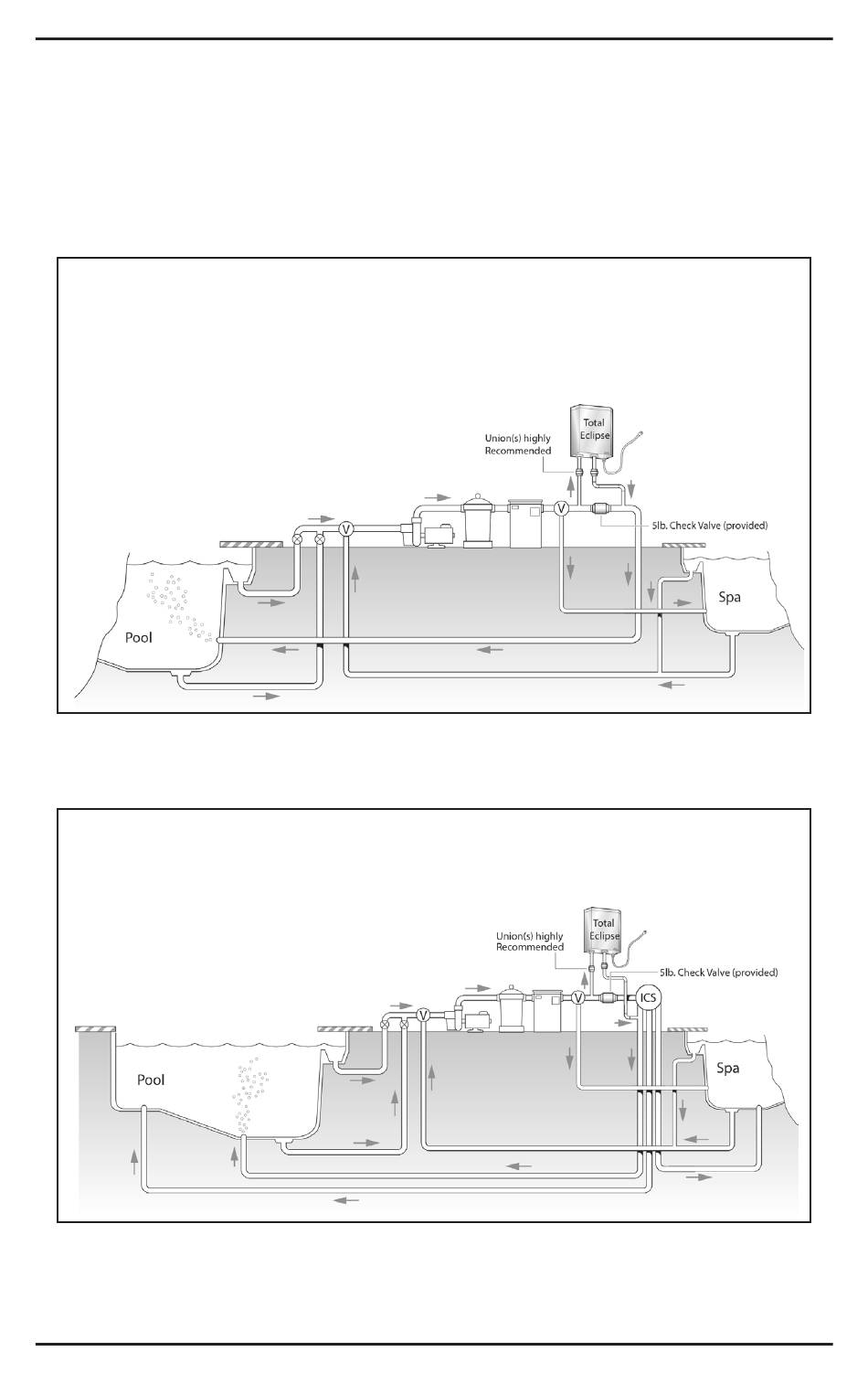

Figure 3: Existing Pool/
Figure 4: Existing Pool/
