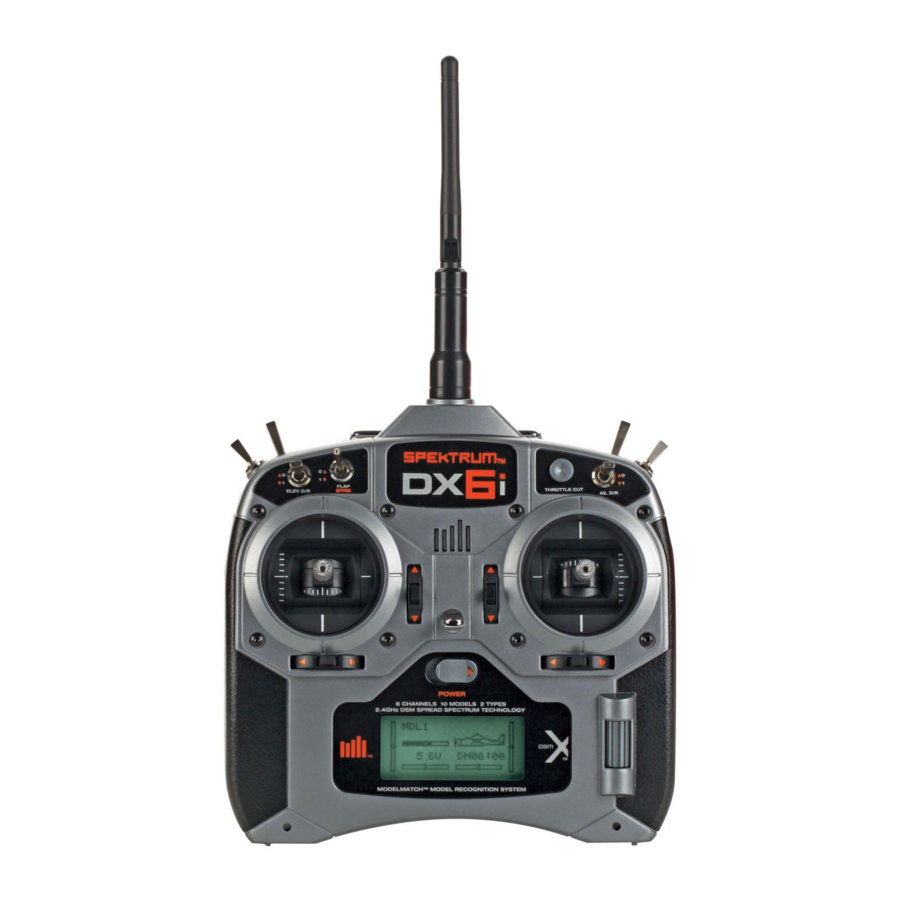

Spektrum DX6i Assembly Manual

Replacement Transmitter Antenna Assembly
Manual for the DX6i
WWW.SPEKTRUMRC.COM
NOTICE
All instructions, warranties and other collateral documents are subject to change
at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature,
visit http://www.horizonhobby.com and click on the support tab for this product.
WARNING: READ AND FOLLOW ALL INSTRUCTIONS
This manual contains instructions for safely replacing a transmitter antenna. This
replacement antenna is a key component in a sophisticated hobby product. The
instructions require basic technical knowledge and mechanical skill. The replace-
ment should not be attempted by children or beginner hobbyists.
Do not attempt disassembly, use with incompatible components, or augment
the product in any way, outside of these instructions. Failure to follow each in-
struction and precaution could result in a break of signal transmission, which will
ultimately lead to damage to the product, property and/or personal injury.
Read ALL instructions. If after reading these instructions you are not confident
in your ability to replace the antenna, send the antenna and transmitter to the
appropriate Horizon Service Center where this procedure can be performed by
an authorized service technician free of charge, or contact a distributor in your
country of service.
To obtain free repair service for your Replacement Transmitter Antenna Assem-
bly please contact Horizon Hobby Product Support.
Horizon Service Center 4105 Fieldstone Road
Champaign, IL 61822 USA
Horizon Product 4105 Fieldstone Road
Support Champaign, IL 61822 USA
Horizon Hobby Limited Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS
United Kingdom
Horizon Technischer Hamburger Str. 10
Service 25335 Elmshorn
Germany
Horizon Hobby SAS 14 Rue Gustave Eiffel
Zone d'Activité du Réveil Matin
91230 Montgeron
Note: If it is decided to submit the unit for antenna replacement, Horizon will
pay the costs of return shipping and labor associated with the replacement
of the antenna. However the cost to repair any OTHER damage done to the
product may be the responsibility of the customer, to be determined at the sole
discretion of Horizon Hobby, Inc.
INTRODUCTION
The following instructions are for replacing the antenna in a DX6i. Read them
completely before beginning to replace your antenna.
Items Needed:
• New antenna assembly (SPM6830)
• Medium Phillips head screwdriver
CAUTION: Never turn the radio on when the antenna is not attached to the
module. Powering up the transmitter without the antenna attached can damage
the transmitter.
STEP 1
With the transmitter power switch in the "Off" position, remove the battery door
and the batteries from the transmitter.
877-504-0233
Online Repairs visit
STEP 2
www.horizonhobby.com/repairs/
Place the radio face down on a cushioned surface to protect it from being dam-
877-504-0233
aged.
productsupport@horizonhobby.com
Using a Phillips screwdriver, remove the 6 screws holding the transmitter case
+44 (0) 1279 641 097
together. All removed screws should be placed in a designated area where
they
will not be lost and should be placed in a manner that will allow for ordered
sales@horizonhobby.co.uk
reinsertion.
+49 4121 46199 66
service@horizonhobby.de
+33 (0) 1 60 47 44 70
infofrance@horizonhobby.com
STEP 3
Carefully remove the back case half disconnecting the wire harness connectors
from the encoder board in the front case.
NOTICE: Observe the location of each plug being removed. Reinserting the
plugs incorrectly will result in damage to the radio.
STEP 4
With the wire harness connectors separated from the encoder board, lay the
back case half aside.
STEP 5
Carefully grasp the antenna wire near the connection point to the RF board and
pull up while wiggling slightly. The antenna should disconnect easily.
1
