Summary of Contents for Luxor FP3500

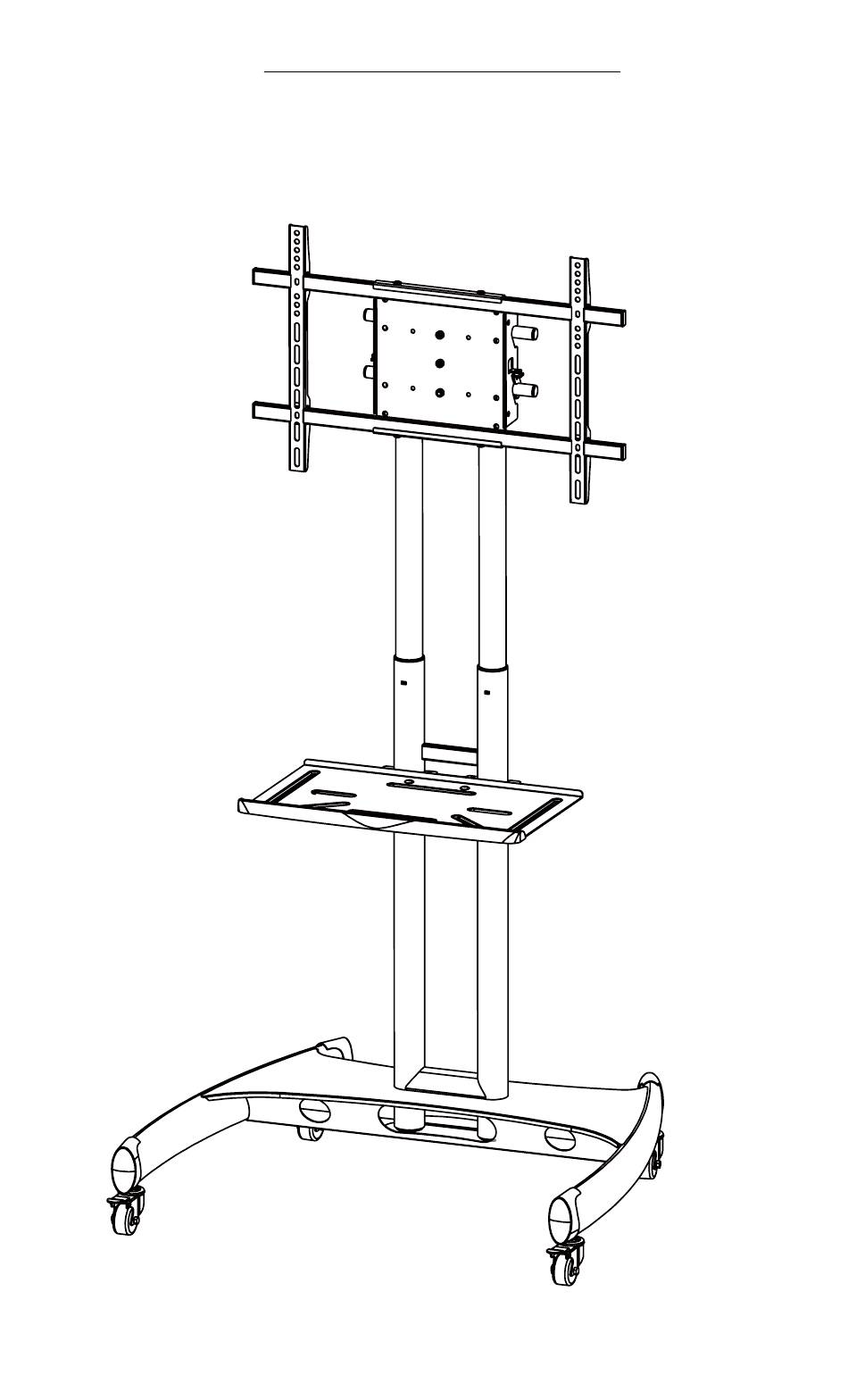

- Page 1 Stand Instructions...
-
Page 2: Table Of Contents
Table of Contents Table of Contents and Warnings Part List Assembly and Installation 1. Adjust upper and lower poles 2. Attaching to the base assembly 3. Installing the Media Shelf 4. Install steel cross rods 5. Install the TV 6. Install mount to frame 7. -
Page 3: Part List
A1x1 B2x2 A2x4 A3x1 B1x1 C1x1 C2x1 C3x1 B3x1 D1x1 D2x2 D3x2 B4x4... -
Page 4: Adjust Upper And Lower Poles
Adjust upper and lower poles Locate the spring plungers inside the bottom grommet hole of pole B1 (If your unit has B3 cross bar pre-installed remove prior). Starting with the right side pole B2, push the spring plunger down and pull B2 up slightly and twist it slightly so that the spring plunger remains Hold the poles B1 &... -
Page 5: Attaching To The Base Assembly
Attaching to the base assembly Thread casters A2 into the bottom of base A1. Make sure all casters a re locked to prevent movement during installation . With allen wrench M attach lower poles B1 to base A1 with screw G. First through the bottom of base A1, then through the top of base A. -
Page 6: Installing The Media Shelf
Install the media shelf Remove Pre-Installed Screws Pre-Installed Pre-Installed Pre-Installed... -
Page 7: Install Steel Cross Rods
Install steel cross rods Phillips screwdriver Remove the pre-installed Refasten rods B3 screws on rod B3. Making with screws. sure the upper poles B2 are aligned, slide rods B3 into the top openings . Height adjustment Slide the upper poles B2 up or down to the different spring plunger holes for your desired height . -
Page 8: Install The Tv
Install the TV Remove pre-installed screws Slider plate (B, C)+D,A VESA: 200x200mm Spacer Suggestions Phillips screwdriver B, C... -
Page 9: Install Mount To Frame
Install mount to frame Lift up lock hook before installing mount Make sure casters are locked prior to installation Secure lock hook fully Heavy Lifting: Assistance Required Attach hooks on D1 onto cross rods B3 Lock not included... -
Page 10: Adjusting The Mount
Adjusting the mount Remove pre-installed screws Re-attach screws Phillips Phillips screwdriver screwdriver Swivel 90°...
