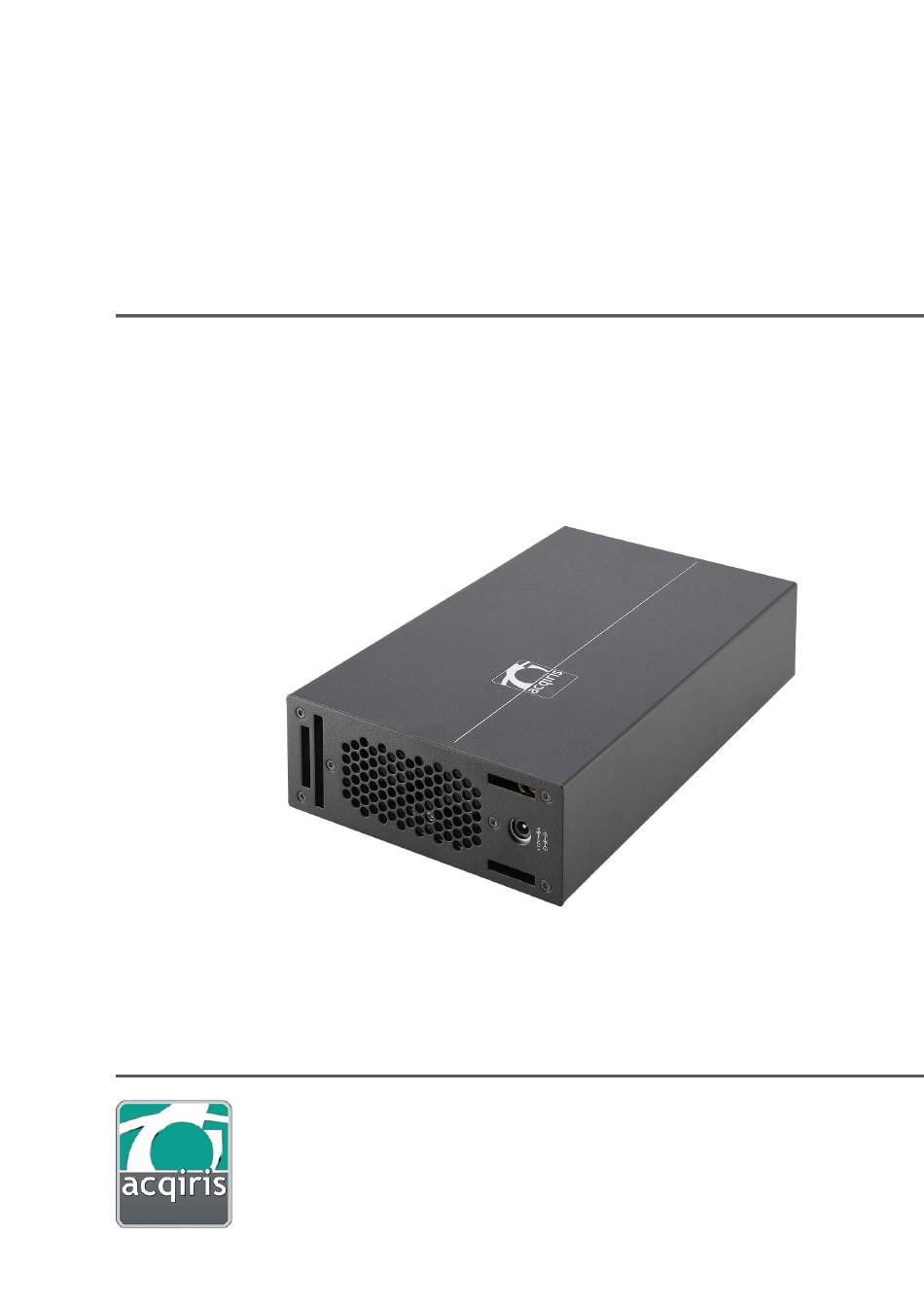

- Page 1 Acqiris SA230E Acquisition module 1 channel, 14-bit, 4 GS/s, DC to 2 GHz bandwidth with real-time processing Start-up Guide...
-
Page 2: Notices
Acqiris SA as governed by international copyright laws. Contact us Feel free to contact Acqiris experts and send an email to support@acqiris.com - Worldwide contact for support or repair. -
Page 3: Conventions Used In This Document
Safety Notes The following safety precautions should be observed before using this product and any associated instrumentation. The "product" refers to the SA230E signal acquisition module. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury. - Page 4 Do not exceed the maximum signal levels of the modules and accessories, as defined in the specifications and operating information, and as shown on the module or test fixture panels, or ADC module. Acqiris SA230E Startup Guide...
-
Page 5: Cleaning Precautions
Cards, modules and accessories shall not be connected to humans. Before performing any maintenance, disconnect the line cord and all test cables. Any part or component replacement must be done by Acqiris. No operator serviceable parts inside. Refer servicing to qualified personnel. To prevent electrical shock do not remove covers. -
Page 6: Product Markings
Product Category: With reference to the equipment types in the WEEE directive Annex 1, this product is classified as “Monitoring and Control instrumentation” product. To return unwanted products, contact your local Acqiris office. Acqiris SA230E Startup Guide... -
Page 7: Table Of Contents
Fixing the module on the main structure (optional) SA230E Front Panel Features Front Panel Connectors Front Panel LEDs Step 5: Verify Operation of the SA230E Module Driver Graphical Interface: MD3 Soft Front Panel Perform a Verification of the SA230E (optional) Requirements for Verification... -
Page 8: Introduction
Introduction Introduction The scope of this Startup Guide is to detail the processes of receiving and installing the Acqiris SA230E signal acquisition module, installing the required software, and verifying basic module operation. If you have any questions after reviewing this information, please contact technical support support@acqiris.com. -
Page 9: Return A Module For Service
1. Review the warranty information attached to the original quote or order confirmation from Acqiris. 2. To obtain a Return Material Authorization (RMA) and return address, contact Acqiris at support@acqiris.com, providing the following information: Product model number (for example: SA230E). -
Page 10: Step 3: Install The Software
The latest BIOS version. Software installation for Windows users If a previous version of the Acqiris MD3 Software for Signal Acquisition Cards is installed on your computer, first uninstall it before installing the new software version. Acqiris MD3 Software for Signal Acquisition Cards includes the latest Acqiris device driver AqMD3 (IVI-C, IVI.NET) and product documentation. -
Page 11: Specific Requirement For Windows 10 Users
First installation on a computer 1. Ensure that the computer is switched off. 2. When installing the SA230E, ensure that it has optimum cooling. Do not install it in a position where the integrated cooling fans may be obstructed. 3. Use the power cable and 12 V adapter to connect the module to the main voltage. - Page 12 Be careful there is no mechanical part of the system that could damage the power cables. Orientations authorized for the ADC module. The SA230E can be placed horizontally or vertically keeping the Acqiris logo line horizontal. The module should not be placed vertically with the connector panels on the top or the bottom.
- Page 13 7. Switch on the computer. 8. The SA230E should be automatically detected by the computer. You may need to approve the Thunderbolt device the first time you connect the module. To proceed: Open the Attached Thunderbolt Devices tool Select “Sonnet Technologies, Inc, Echo Express SE-I TB3”, then choose...
-
Page 14: Power Down And Power Up Sequences
9. Check the correct operation of the module using the SFP (See section 5. Verify Operation of the Module). If the USB cable is disconnected while the SA230E is in use, close the SFP or your application and restart the SFP or your application using the parameter reset=true. - Page 15 3. On the main structure, use holes a diameter of 5.5 mm, located as showned on the fig- ure below. The fixing and main structure should be able to support a minimum weight of 6.8 kg. Acqiris SA230E Startup Guide...
- Page 16 4. Fix the aluminium brackets to the main structure using screws M5 x 12 mm length, using 4.2 Nm torque. Example of recommended screws: ISO 7380-1, ISO 14583, ISO 4762 (cylindrical head screws) or ISO 4017 (hexagonal head screw). Acqiris SA230E Startup Guide...
-
Page 17: Sa230E Front Panel Features
Step 4: Install the ADC Module SA230E Front Panel Features Front Panel Connectors Connector Type Description MMCX External trigger input, 50 Ω DC terminated, ± 5 V range. TRG IN female Analog signal inputs, DC-coupled and 50 Ω terminated. The input full scale... -
Page 18: Front Panel Leds
Error STATUS White, blinking OK (module ready) If warning or error status is observed, power-cycle the SA230E module and the remote computer . If the error persists please contact technical support support@acqiris.com. Step 5: Verify Operation of the SA230E Module... -
Page 19: Perform A Verification Of The Sa230E (Optional)
Perform a Verification of the SA230E (optional) Requirements for Verification The correct operation of the SA230E may be verified by the use of a simple application which carries out several performance checks on a signal acquired from an external function generator. -
Page 20: If A Problem Is Found
Step 5: Verify Operation of the SA230E Module 1. Configure the signal generator to produce a sinusoidal signal with a frequency of 1 MHz, and an amplitude of 300 mV rms (+2.55 dBm). 2. Connect the signal generator output to the IN 1 connector, and turn on the output. -
Page 21: Related Documentation
Related Documentation Related Documentation If you have run the Acqiris MD3 software installer on your host computer, this Startup Guide and the related product documentation listed below have been installed on your hard drive. The documents listed below are also available for download from Acqiris Extranet. -
Page 22: Programming Information
IVI.NET Driver development environments The AqMD3 IVI.NET driver can be used in Visual C#, Visual C++/CLI or Visual Basic.NET development environment. Program examples Once Acqiris MD3 software is installed, program examples can be found in: C:\Program Files\IVI Foundation\IVI\Drivers\AqMD3\Examples\ Acqiris SA230E Startup Guide... - Page 23 Acqiris SA230E Startup Guide...
- Page 24 This information is subject to change without notice. © Acqiris SA 2017 - 2019 Monday, July 15, 2019, Switzerland www.acqiris.com...
