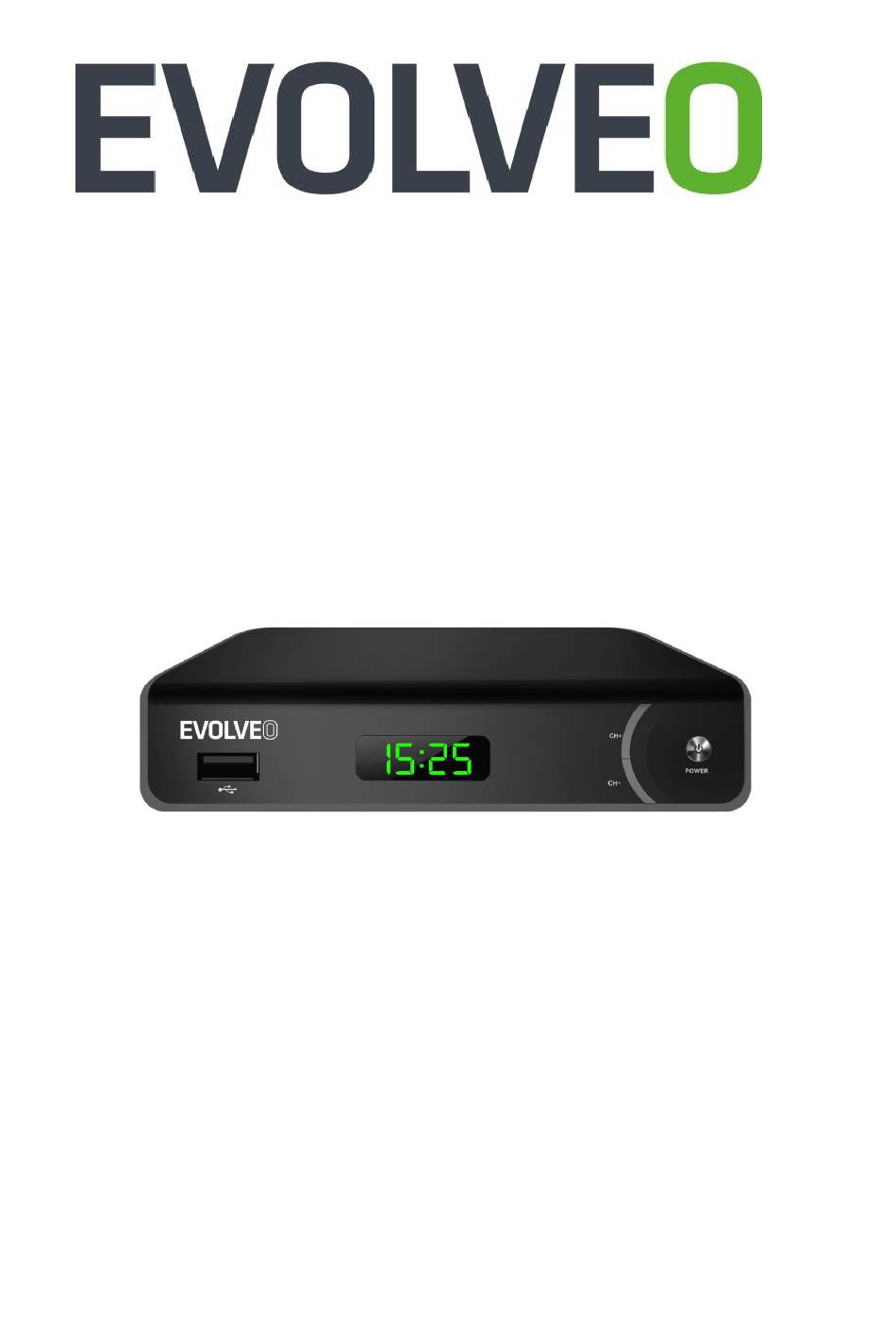

- Page 1 Omega II www.evolveo.com...
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Do not use this apparatus near water. 2. Clean only with dry cloth. 3. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 4. Operate this product only from the type of power source indicated on the label. If you are not sure of the type of power connected to your home, consult your local power company. - Page 3 This symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.
- Page 4 1. Control Elements Front Panel USB Port CH+/- POWER Rear Panel ANT IN ANT OUT COAXIAL HDMI TV SCART DC IN 12V...
-
Page 5: Learning Remote Control
2. Learning remote control POWER (Red Button): Standby Mode (ON/OFF) Fast Backward Fast Forward Play/Pause Stop REC : Records the TV program to the connected storage device USB: Enters to the PVR sub menu SUBTITLE : Displays subtitle options TTX : Switches on the Teletext AUDIO : Audio language or Audio mode EPG : Shows the Electronic Program Guide INFO : Displays information about the current channel... -
Page 6: Batteries Installation
•The remote control has 4 programmable buttons for controlling the TV: TV Power, Vol +, Vol-, TV/AV. •Long press the SET button for 3 seconds, the red LED will be from low light to brighter light, release the SET button. •Place the learning and the original remote control from the TV opposite to each other at a distance of 3-5 cm. - Page 7 Do not place the remote control under the direct sunlight or near sources of excessive heat. Point the remote control to the receiver, no more than 8 meters from the remote control. CONNECTING TO TV...
-
Page 8: Quick Installation
MAINMENU QUICK INSTALLATION If you are using the receiver for-the first time or have restored the receiver to Factory Settings, the Welcome Screen will appear on your TV screen. Press OK to start scanning channels. Region: Select a Country. Language: Select a Language. Display Mode: Select a screen resolution. -
Page 9: Edit Channel
LCN (Logical Channel Number): Choose if you want to sort the channels according to their logical channel number. The default value is OFF. EDIT CHANNEL TV Channel List: This menu enables you to edit channel lists by locking, deleting, skipping, moving channels and creating favorite channel lists. If you want to preview the channel, select it and press OK. - Page 10 Lock Select a channel and press Red button on the remote control. Then press OK and input the default password 0000. The channel will be marked with an icon. Press the EXIT button to confirm changes. The selected channel will be locked. If you want to unlock, select this channel, press Red button and press OK to enter the password Skip Select a channel and press Green button.
- Page 11 Upgrade by USB The receiver is connected with the TV, but in Standby Mode. Copy the latest firmware into a USB stick. Do not rename the file of firmware and do not put the file into a folder. Insert the USB stick to the USB port of the receiver and press the Standby button on the remote control.
-
Page 12: System Setup
*Check the YouTube conditions. SYSTEM SETUP Language: Select the language of the Menu, First and Second Audio, Subtitles and Teletext. TV System Video Resolution: There are many options in this menu. If you are using HDMI output connection, the default is 1080i_ 25. If you are using SCART output connection, the default value is 576i. - Page 13 Display settings: Brightness (default value is 50), Contrast (default value is 50),Saturation (default value is 50), Hue (default value is 50) and Sharpness (default value is 5). Local time setting . Region: Select your country. .GMT Usage: Set to "By Region" if you want to use GMT and set the time automatically. Set to "User Define if you want to set the time zone manually, or set to "Off", if you want to set the date and time manually.
- Page 14 The default value is 5. OSD Transparency : Set the OSD transparency to Off, or from 10% to 40%.The default value is Off. Favorite Press OK on a Favorite Group, Now you can rename the Favorite Channels List. Other Antenna power: Set to ON when having an active antenna without power adapter.Set to OFF whe n having passive antenna or active antenna with power adapter.
- Page 15 *Lock: Press yellow button to lock the relative PVR channels. *Delete: Press Green button to delete PVR channels. Note: When watching a video with subtitles from USB drive, it is possible to set color and size of subtitles, background color and position. Press green button on the remote control to display subtitles settings.
- Page 16 1.Make sure the USB drive is connected to the device. 2. Enter PVR Settings and turn ON Timeshift function 3. Press PAUSE button on the remote control to stop the program. 4. Control playback with the buttons on the remote control: .
-
Page 17: Troubleshooting
TROUBLESHOOTING Do you still need an advice after reading this guide? First read “Frequently Asked Questions” at www.evolveo.com or contact the EVOLVEO technical support. -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY Hereby, the company Abacus Electric, s.r.o. declares that the EVOLVEO Omega II is in compliance with the requirements of the standards and regulations, relevant for the given type of device.
