System Setup;
1. J1
---
FMC+ Plug Connector High Pin Count (FMC+ HPC)
2. U3
---
EEPROM
3. U62, U5, U10 ---
4. U2
---
Clock Generator
5. U7
---
I2C Buffer
6

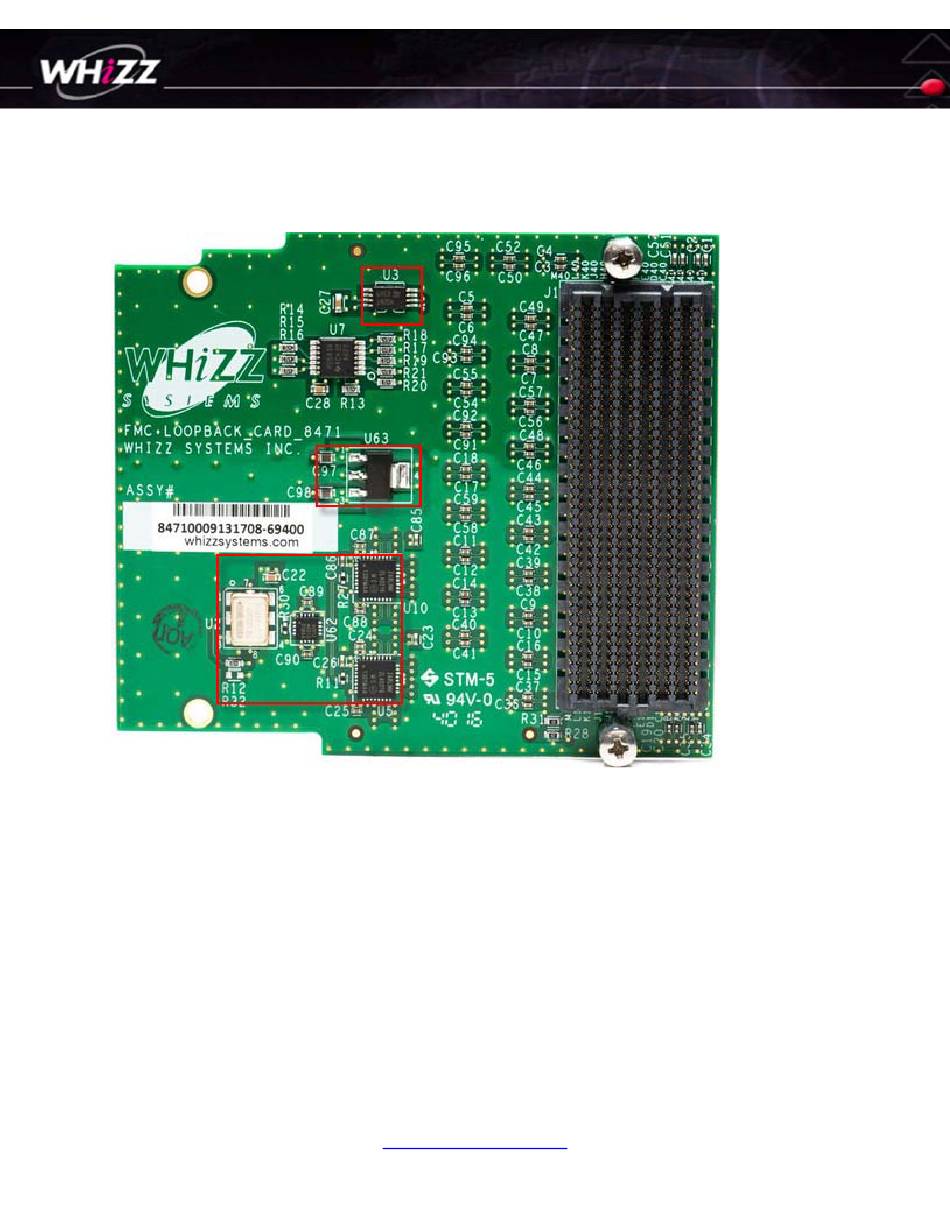

Figure 1: FMC+ Loopback Card (Component Side)
Clock Buffer/Distribution chip
www.whizzsystems.com
FMC+ Loopback Connectivity Card User Guide
version 1.0 March 15, 2017
