Summary of Contents for Whizz Systems FMC+ Loopback Card
- Page 1 FMC+ Loopback Card User Guide FMC+ LOOPBACK USER GUIDE version 1.0 March 15th 2017 Whizz Systems Inc. 3240 Scott Blvd. Santa Clara, CA 95054 FMC+ LOOPBACK Connectivity Card User Guide www.whizzsystems.com version 1.0 March 15, 2017...
-
Page 2: Disclaimer
Information provided in this document is to help the user understand the product only. In no event shall Whizz Systems Inc. or its sub-consultants of any tier be liable in contract, tort, strict liability, warranty or otherwise, for any special, incidental or consequential damages, such as,... -
Page 3: Table Of Contents
Table of Contents Disclaimer: ........................... 2 Revision History: .......................... 2 Preface ............................4 Chapter 1 ............................5 Overview ............................. 5 Quick Start ........................... 5 Systems Requirements; ......................5 Package Contents; ........................5 Necessary Equipment; ......................5 System Setup; .......................... 6 Board Technical Description;... -
Page 4: Preface
Preface About this Guide The User guide provides relevant information on how to use the FMC+ Loopback card with a compatible Xilinx reference board. For additional information please contact info@whizzsystems.com at Whizz Systems Inc. located at 3240 Scott Blvd, Santa Clara, CA 95054 United States of America. -
Page 5: Chapter 1
Chapter 1 Overview Quick Start Systems Requirements; • VITA57.4 - 2015 Compliant mating Xilinx Reference Board. Package Contents; • FMC+ Loopback Card • Two 10mm Stand-off • Four M2.5 screws Necessary Equipment; • None FMC+ Loopback Connectivity Card User Guide www.whizzsystems.com... -
Page 6: System Setup

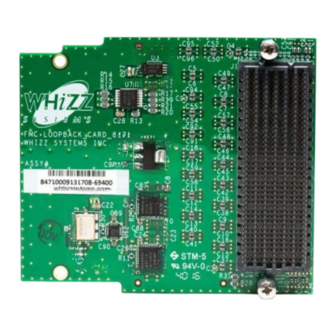

System Setup; Figure 1: FMC+ Loopback Card (Component Side) 1. J1 FMC+ Plug Connector High Pin Count (FMC+ HPC) 2. U3 EEPROM 3. U62, U5, U10 --- Clock Buffer/Distribution chip 4. U2 Clock Generator 5. U7 I2C Buffer www.whizzsystems.com FMC+ Loopback Connectivity Card User Guide... - Page 7 FMC+ Loopback Connectivity Card User Guide www.whizzsystems.com version 1.0 March 15, 2017...
-
Page 8: Board Technical Description
Board Technical Description; FMC+ Loopback logical connectivity is as shown in Figure 2 below; Figure 2 www.whizzsystems.com FMC+ Loopback Connectivity Card User Guide version 1.0 March 15, 2017... -
Page 9: Detail Description
Detail Description; The Oscillator U2 is programmable (1-220 MHz & 3.3V supply) through I2C interface from Host card. The FMC+ LOOPBACK Card provides three sets of loopback connections as shown in Table 2, 3, 4; • DP [0:9]_M2C_P/N to DP [0:9]_C2M_P/N --- trace lengths matched between 2.57” to 2.87 inches... -
Page 10: Table 3: Fmc+ La Bank Loopback
FMC LA Bank LOOPBACK LA [00:16] To LA [17:33] Pin name Number Pin name Number LA00_N_CC LA17_N_CC LA00_P_CC LA17_P_CC LA01_N_CC LA18_N_CC LA01_P_CC LA18_P_CC LA02_N LA19_N LA02_P LA19_P LA03_N LA20_N LA03_P LA20_P LA04_N LA21_N LA04_P LA21_P LA05_N LA22_N LA05_P LA22_P LA06_N LA23_N LA06_P LA23_P... - Page 11 HA [00:21] To HB [00:21] HA00_N_CC HB00_N_CC HA00_P_CC HB00_P_CC HA01_N_CC HB06_N_CC HA01_P_CC HB06_P_CC HA02_N HB01_N HA02_P HB01_P HA03_N HB02_N HA03_P HB02_P HA04_N HB03_N HA04_P HB03_P HA05_N HB04_N HA05_P HB04_P HA06_N HB05_N HA06_P HB05_P HA07_N HB07_N HA07_P HB07_P HA08_N HB08_N HA08_P HB08_P HA09_N HB09_N...
-
Page 12: Table 4: Fmc+ Ha-To-Hb Bank Loopback
HA19_N HB19_N HA19_P HB19_P HA20_N HB20_N HA20_P HB20_P HA21_N HB21_N HA21_P HB21_P HA22_N HA23_N HA22_P HA23_P Table 4: FMC+ HA-to-HB Bank Loopback ------------------------------------------- End of the document ----------------------------------------------- www.whizzsystems.com FMC+ Loopback Connectivity Card User Guide version 1.0 March 15, 2017...
