Stock #
2772
© Blonder Tongue Labs, Inc.
All Rights Reserved. Specifications subject to change without notice. All trademarks are property of their respective owners.

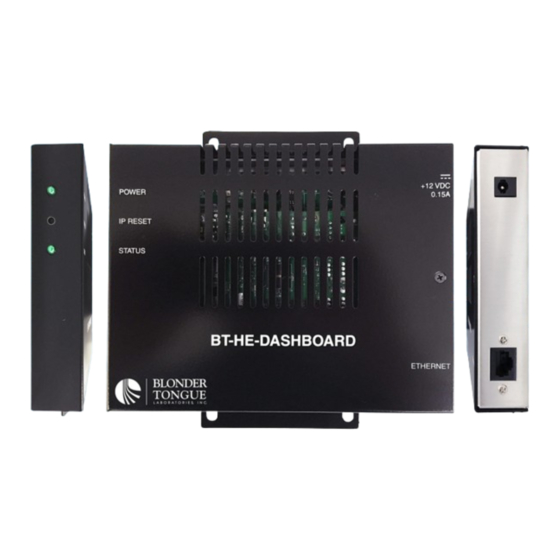

BT-HE-DASHBOARD
BT-HE-DASHBOARD
Model Name
Description
BT-HE-DASHBOARD Headend Controller for up to 20 supported units including:
HDE-8C-QAM w/Opt 2, HDE-8C-QAM DIN (Opt 2), AQT8-
QAM/IP (Stk#6281A), and AQT8-IP (Stk#6280A)
ISO 9001:2015 Certified
P/N: 651244200A | Rev: 0100819
Advertisement
Table of Contents
Related Manuals for Blonder tongue BT-HE-DASHBOARD
Summary of Contents for Blonder tongue BT-HE-DASHBOARD
- Page 1 BT-HE-DASHBOARD Stock # Model Name Description 2772 BT-HE-DASHBOARD Headend Controller for up to 20 supported units including: HDE-8C-QAM w/Opt 2, HDE-8C-QAM DIN (Opt 2), AQT8- QAM/IP (Stk#6281A), and AQT8-IP (Stk#6280A) © Blonder Tongue Labs, Inc. P/N: 651244200A | Rev: 0100819 ISO 9001:2015 Certified All Rights Reserved.
- Page 2 Returning Product for Repair (or Credit) A Return Material Authorization (RMA) Number is required on all products returned to Blonder Tongue, regardless if the product is being returned for repair or credit. Before returning product, please contact the Blonder Tongue Service www.blondertongue.com Department at 1-800-523-6049, Ext.
-
Page 3: Table Of Contents
BT-HE-DASHBOARD User Manual Table of Contents SECTION 1 – GENERAL & SAFETY INSTRUCTIONS ....................... 4 SECTION 2 — PRODUCT SUMMARY ..........................5 2.1 REVISION HISTORY & REASON ..........................5 2.2 PRODUCT APPLICATION & DESCRIPTION ......................5 2.3 PRODUCT SPECIFICATION ............................8 SECTION 3 –... -
Page 4: Section 1 - General & Safety Instructions
å Do not use accessories or attachments not recommended by Blonder Tongue, å Do not overload wall outlets or extension cords, as this can result in a risk of fire as they may cause hazards, and will void the warranty. -
Page 5: Section 2 - Product Summary
2.2 Product Application & Description Application: The BT-HE-DASHBOARD provides operators the ease and convenience of controlling multiple HDE-8C-QAM w/Opt 2, HDE- 8C-QAM DIN (Opt 2), AQT8-QAM/IP (Stk#6281A), and AQT8-IP (Stk#6280A) through a single IP address mapped to the headend(s). The DASHBOARD controls and monitors up to twenty (20) supported units and has the provision to remotely update firmware for each unit simultaneously. - Page 6 LED is Off = indicates (i) AC power is not connected, or (ii) AC power is connected but the power supply is defective. The unit must be sent to Blonder Tongue for repair for condition (ii). IP RESET: When pushed and held for >2 seconds, the Ethernet port IP address login credentials will be enabled to the factory defaults.
- Page 7 BT-HE-DASHBOARD User Manual 2.2 Product Application & Description (Continued) HDE-8C DIN encoders equipped with their own DHCP server for H25 Diagram 1 SWITCH HDE-8C DIN Series* Control Port *In DHCP Mode, see encoder manual For Remote HDE-8C DIN encoders equipped with their...
-
Page 8: Product Specification
(See Product Manual) IP Models All units MUST be updated to minimum required firmware version (shown in the table above) BEFORE connecting them to the BT-HE-DASHBOARD. The BT-HE-Dashboard requires an external DHCP server. (Example: see Diagram 1 on page 7) -
Page 9: Instructions
User Name: Admin Password: pass Click on the “System” tab in the navigation menu and configure the BT-HE-Dashboard to be on the same subnet as the router. (Refer to Section 4.8, pg. 17) NOTE: The IP address should be outside the router DHCP range set above. -
Page 10: Section 4 - Configuring The Unit
10 BT-HE-DASHBOARD User Manual Section 4 - Configuring the Unit 4.1 “Status” Screen The “Status” (Figures 4.1a, 4.1b and 4.1c) displays information for each unit the controller detects (up to 20). Information is as follows: Figure 4.1a - “Status” Tab Unit: Name of unit as entered on the Settings page. -
Page 11: Settings" Screen
BT-HE-DASHBOARD User Manual 4.2 “Settings” Screen The “Settings” screen (Figure 4.2) is a “user-configurable” screen where the following input source parameters can be configured: Figure 4.2 - “Settings” Screen Unit Section Unit Name: Clicking on the Unit name link (ex. Unit1) will take the browser to the Log-in page of the particular encoder. - Page 12 12 BT-HE-DASHBOARD User Manual 4.2 “Settings” Screen (continued) TS Mapping Section PID: Clicking on the PID button will automatically populate all 8C’s with PIDs incremented by 16 after the entry of the first PID number. Name: User entry of Program Name (max 7 alphanumeric characters).
-
Page 13: H25 Control" Screen
BT-HE-DASHBOARD User Manual 4.3 “H25 Control” Screen This feature provides H25 receiver control from a virtual handheld remote control. Select the Encoder name and input number to access the receiver. Use the cursor to select the desired control functions. Please refer to the receiver instruction manual for details on available control functions. -
Page 14: Credentials" Screen
14 BT-HE-DASHBOARD User Manual 4.4 “Credentials” Screen Figure 4.4a - “Credentials” Screen Unit: Clicking on “Unit” will take the browser to the Log-in page of the particular encoder. Placing the cursor over “Unit” will display a pop up with key encoder information as shown in Figure 4.1b. -
Page 15: Remote Update" Screen
Choose File: Opens window on computer to find and select the desired firmware file. NOTE: This application requires files with “.FW” extensions (not BIN files). Upload File: Uploads the selected file to the BT-HE-DASHBOARD Update: Applies the uploaded file update. Like units can be updated simultaneously by clicking on their respective Update buttons. -
Page 16: Firmware Update" Screen
4.6 “Firmware Update” Screen Figure 4.6 - “Firmware Update” Screen Choose File: Opens window on computer to find and select the desired BT-HE-DASHBOARD firmware file. NOTE: This application requires files with “.FW” extensions (not BIN files). Upload: Uploads the selected file to the BT-HE-DASHBOARD and starts the update process. -
Page 17: System" Screen
Default Gateway: is the gateway address assigned to the Ethernet Port. It allows the user to access the unit from another network via the web interface. (Factory Default: 172.16.70.254) Reboot: Reboots the BT-HE-Dashboard. Unit requires rebooting after changing the IP addresses. Apply Defaults: Applies IP defaults as listed above. -
Page 18: Admin" Screen
18 BT-HE-DASHBOARD User Manual 4.9 “Admin” Screen Figure 4.9 – “Admin” Screen Username: is the Administrator’s login (16 characters maximum). This login allows the user to make changes to any area of the unit. (Factory Default: “Admin”) Password: is only used when changing the current Administrator’s password (16 characters maximum). The password will not be displayed. - Page 19 10. The cost of the extended warranty is 8% of the purchase price for a 1 or 2 year extension beyond the Blonder Tongue standard warranty. e.g. A product price of $1000 will be $80 for the 1 year (12 mos) and additional $80 for 2 year (24 mos) extension for a total of $160.
- Page 20 BT may determine) any product manufactured by BT which proves to be defective in materials or workmanship or fails to Blonder Tongue Laboratories, Inc. (BT) will at its sole option, either repair or replace (with a new or factory reconditioned product, as BT may the case of software, licensed) by Seller which is defective in materials or workmanship or fails to meet the applicable specifications that are in effect on the date of meet the specifications which are in effect on the date of shipment or such other specifications as may have been expressly...
