iSmartviewPro
Wire-Free Battery-Powered

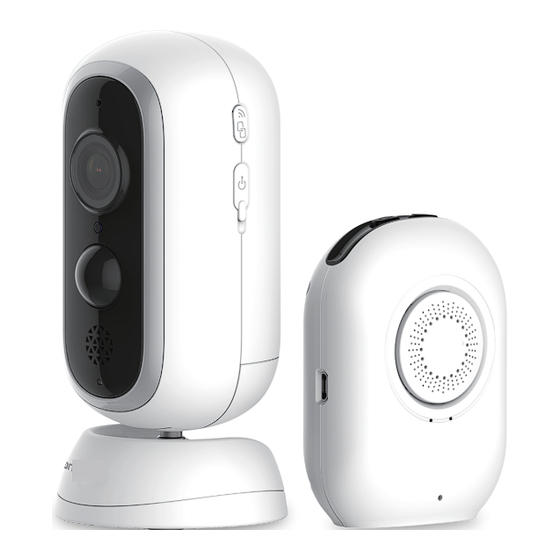

1080P Indoor & Outdoor Home Security Camera
We keep improving the app, if the app interface is not accordance with the instructions,
please go to IPcmera website:
User Manual
850G
801RTB
http://cd.ipcamdata.com
EN Version Updated on 25 September 2018
for the latest instructions.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ipcamdata iSmartviewPro
Summary of Contents for Ipcamdata iSmartviewPro
- Page 1 Wire-Free Battery-Powered 1080P Indoor & Outdoor Home Security Camera User Manual 850G 801RTB We keep improving the app, if the app interface is not accordance with the instructions, please go to IPcmera website: for the latest instructions. http://cd.ipcamdata.com EN Version Updated on 25 September 2018...
-
Page 2: What's In The Box
What’s in the Box Battery Camera Base bottom Base Station Power adapter Weathproof cover User Manual Magnetic wall mount 3M tape Mounting screws&Anchors... - Page 3 Product Diagram(Base Station) Sync Button WiFi Pair Button Speaker Memory card slot Indicator Light Microphone Base Station Speaker Built-in 1W 8Ω Microphone Built-in Micro Memory Card Up to 128GB Internet Connection 2.4 Ghz WiFi Connection Max Number of Connected Cameras Adapter Power 5V 2A Dimensions...
- Page 4 LED Indicator & Working Status(Base Station) LED indicaton Working status Sleep mode/Power Off Solid on in red NO Internet Flashes red&blue slowly alternately WiFi configuration Solid on in blue Connected to internet Flashes blue slowly Pairing mode Flashes red quickly Restore to factory setting Button Controls(Base Station) Button...
- Page 5 Product Diagram(Camera) Microphone Camera Night 2.0 MP Lens Lens 105°wide angle ,f=2.0 vision LED Sensor 1/2.7 inch Photoresistance Resolution 1080P(1920*1080)Full HD Resolution Motion sensor Microphone Built-in Speaker Built-in 1W 8Ω Speaker Indicator light PIR Detection Detection angle110 Two 18650 Lithium batteries(not include),Battery life will vary based on Base device settings,...
- Page 6 LED Indicator & Working Status (Camera) LED indicaton Working status Sleep mode/Power Off Solid on in red Connected the Base station or charge the camera Flashes red & blue slowly Pairing mode Solid on in blue Fully charged Button Controls(Camera) Button Function Operation...
- Page 7 Get Started Download APP Go to the App Store or Google Play to search and download “iSmartviewPro” APP to your smart phone or tablet. Or scan below QR code to get the APP.
- Page 8 Power On Base Station Connect the Base Station to a power source. Place the Base Station next to the router before configuring. Note: The LED indicator on the Base Station will keep solid blue light when connected to the internet successfully.
- Page 9 Power the Camera Please install two 18650 lithium batteries in Coming with micro USB connector on the the camera before using. battery, the wifi camera can be charged by universal 5V 2A phone adapter,Save your money for new batteries continuously.(No power adapter packed in).
- Page 10 Connect your mobile phone with 2.4G WiFi. (5G is not supported for the Base station)If you are using a dual band router, make sure your 2.4G WiFi name is different from your 5G one. Launch iSmartviewPro App, Select [Add Base Station...
- Page 11 Scan the QR code on the Name Base Station, then Long press [WiFi Pair Button] back of the Base Station. click on [Next] on the Base Station until you hear [Please Sync the Base Station to the Router], then Click on [Red and Blue lights flash alternately].
- Page 12 Your home WiFi will be Base Station will try to Once the Base Station is located, please input your connect 2.4G, and you will connected, you will hear WiFi password correctly. hear [Received WiFi [Succeed to Connect Router Click on [Connect to WiFi].
- Page 13 Sync Battery Camera to Base Station Click On [Start to pair Ensure that the camera Battery Camera]. is inserted workable battery or plugged with power supply, then click on [Continue].
- Page 14 Long Press the [Sync Button] on Base Station until the blue light starts flashing and hear [Entering Sync Mode]. Then long press the [Sync Button] on Battery Camera until the red&blue lights flash at the same time. Click on [Finish] When you hear [Sync Succeed] and Base Station will be Online.
- Page 15 More Operations for the Battery Camera. When the Base Station is online, tap to view the Battery Camera. Tap icon can setup the PIR motion, close/Low/Middle/High can be switched according to your need. After enabled PIR motion detection, the battery camera can send notification to your phone when an alarm is detected, refer to page 18 Push Setting.
- Page 16 Full Screen View Exit live video Speaker Take picture Mirror Portrait/Landscape Microphone Record Flip...
- Page 17 More Operations for the Base Station When the Base Station is online, user can do the below operations: 1. Change Username and password For safety reason, please follow below illustration to change the default username and password after the Base station is connected to Wi-Fi:...
- Page 18 2. Push setting — Advanced setting —Push setting to enable App receives the alarm and allow device to push the alarm.
- Page 19 3. Memory Card Alarm setting The Base Station supports 128GB memory card, memory card is not included! It will send a short feed to memory card when an alarm is detected by battery camera(refer to page 15 About PIR setting) if the memory card is available. The video length can be adjusted between 10-30 seconds, please follow the below illustration to set it up:...
- Page 20 4. Playback SD/TF Record The alarm videos saved on memory card can be playback via iSmartviewPro App. When the Base Station is online ,tap icon — Playback SD/TF card can check the alarm videos. If you have Android phone, tap to see the Calendar, the date with red dot means there are alarms were recorded, below illustration is for Android App.
- Page 21 5. Maintenance User can reboot the Base Station and Restore the Base Station to Factory Default, if it is restored, user needs to set up WiFi for the Base Station again. 6. About Base Station User can check the basic information for the Base station, such as WiFi status, Firmware etc.
- Page 22 Synchronize with Battery Camera If you have 2 or more Battery cameras, please follow below steps to connect to the Base Station, please refer to P13-14 for more details. Tips: One Base Station can manage up to 4 Battery Cameras.
- Page 23 Add Base Station that connected network This option is suitable for adding the Base Station to another phone or the Base station is removed from the app and want to add again. Please follow the below steps: on Add Battery camera to the Base Station already connected network...
- Page 24 There are three ways to add the Base Station to App Way 1: Lan Search If the mobile device and the Base Station are in the same WiFi network, user can use “Lan Search” to search the connected Base Station. Way 2: Scan QR Code If the Base Station is on your hand, you can tap to scan the Base Station’s QR code (on...
- Page 25 Mount the camera on wall Mount the camera on a desktop or shelf. Fasten the mounting screws into the wall and attach the magnetic mount. When you are mounting the camera to drywall, be sure to use the plastic anchors.
- Page 26 On the wall(Base Station)
