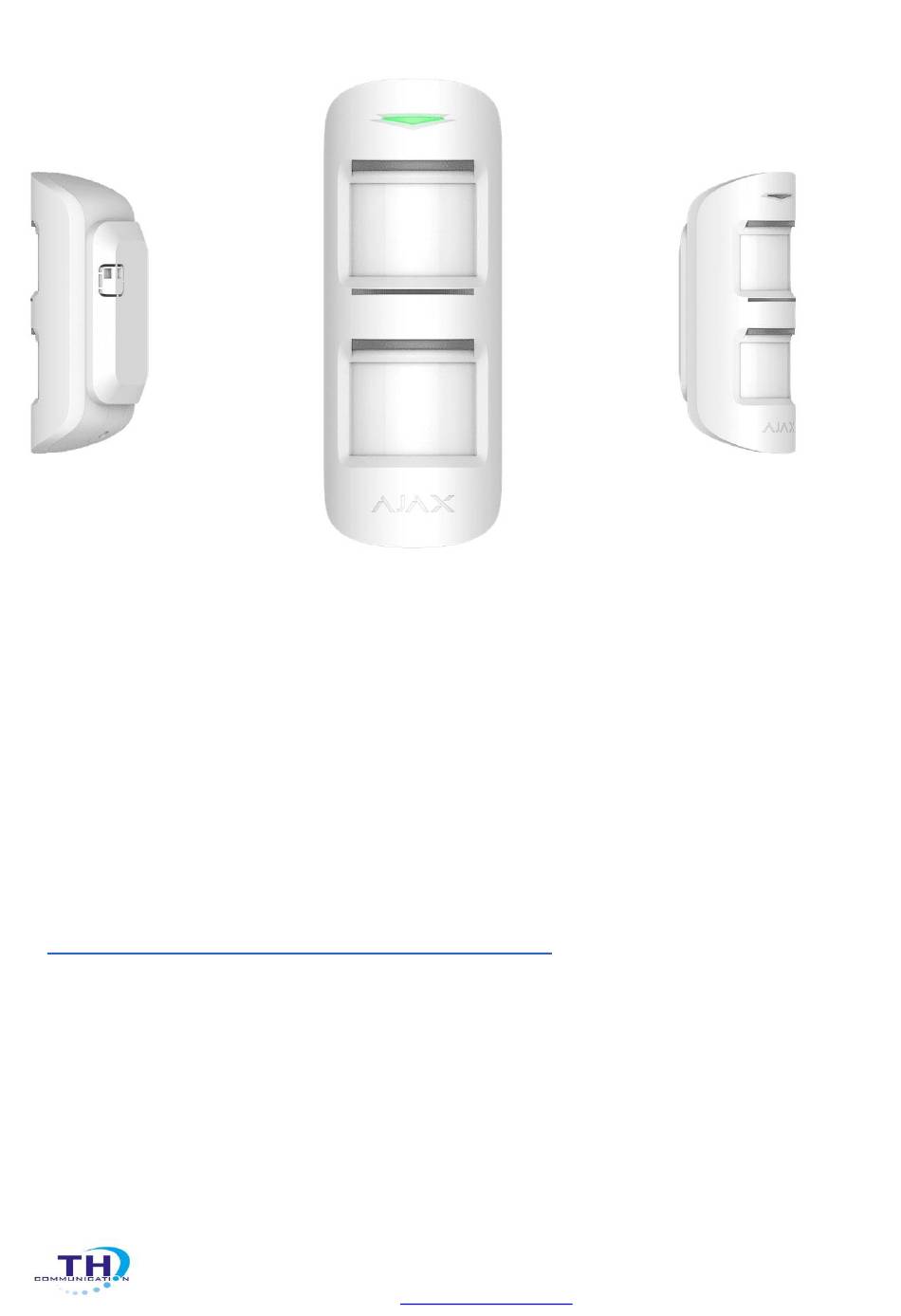

MotionProtect Outdoor User Manual
MotionProtect Outdoor is a wireless outdoor motion detector with protection against masking
and false triggering. It is connected to the Ajax security system via Jewellerprotected protocol,
with a transmission distance of up to 1,700 m in the absence of obstacles. The detector can
operate on preinstalled batteries or from an external power source for up to 5 years. The device
detects motion at a distance of up to 15 m and ignores pets.
The detector only operates with hub. Connection to ocBridge and uartBridge integration
modules is not provided.
The detector is set up via a mobile application for iOS and Android based smartphones. The
user is notified of all MotionProtect Outdoor events through push notifications, SMS messages
and calls (if activated).
The Ajax security system can be used for independent monitoring of the site and can be
connected to the Central Monitoring Station of the security company.
��
Buy outdoor motion detector MotionProtect Outdoor
TH COMMUNICATION SDN BHD
www.thcomm.com.my
info@thcomm.com.my

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionProtect Outdoor and is the answer not in the manual?

Questions and answers

Related Manuals for TH COMMUNICATIONS MotionProtect Outdoor

Summary of Contents for TH COMMUNICATIONS MotionProtect Outdoor

  • Page 1 The detector is set up via a mobile application for iOS and Android based smartphones. The user is notified of all MotionProtect Outdoor events through push notifications, SMS messages and calls (if activated). The Ajax security system can be used for independent monitoring of the site and can be connected to the Central Monitoring Station of the security company.

  • Page 2: Functional Elements

    Functional elements 1. Main light indicator 2. Upper light indicator and masking sensor 3. Upper motion sensor lens 4. Varnish masking sensor 5. Lower light indicator and masking sensor 6. Lower motion sensor lens 7. SmartBracket attachment panel (the perforated part is necessary for tamper activation when attempting to pull the detector away from the surface) 8.
  • Page 3 ⚠ The MotionProtect Outdoor transmits the alarm to the hub only when two PIR sensors are triggered with a delay of not more than 1.5 seconds after ensuring that their signals are identical. ⚠ Motion alarm is transmitted every 5 seconds Anti-masking system Masking is an attempt to block the view of the detector lens with any object.
  • Page 4 Pasting the front of the detector Applying aerosol lacquer / paint or brushing the front of the detector Connecting the MotionProtect Outdoor to the hub Before starting connection:  Following the hub instruction recommendations, install the Ajax application on your smartphone.
  • Page 5 MotionProtect Outdoor turns off automatically after 6 seconds, if it failed to connect to the hub. To retry the connection, you do not need to turn off the device. If the detector has already been assigned to another hub, turn off MotionProtect Outdoor, and then follow the standard addition procedure.
  • Page 6 States Devices → MotionProtect Outdoor Parameter Value Temperature of the Detector. Measured on the Temperature processor and changes gradually Signal Strength Signal strength between the hub and the detector Battery level of the detector, displayed in Battery Charge increments of 25%...

  • Page 7: Setting Up The Detector

    If active, sensor will detect masking If active, the motion detector always detects Always Active movement Firmware Detector firmware version Device ID Device identifier Setting Up the Detector Devices → MotionProtect Outdoor → Settings (⚙ ) TH COMMUNICATION SDN BHD www.thcomm.com.my info@thcomm.com.my...
  • Page 8 Setting Value First field Detector name, can be edited Room Selecting the virtual room to which the device is assigned Choosing the sensitivity level of the motion sensor:  Sensitivity High  Normal  Anti-masking If active, sensor will always detect masking Always active When turned on, the detector always registers motion Delay when entering, sec...
  • Page 9 Opens the detector User Guide Unpair Device Disconnects the detector from the hub and deletes its settings Indication MotionProtect Outdoor light indicator may light up red or green depending on the device status. Indication When Pressing the “On” button Event Indication...

  • Page 10: Functionality Testing

    Before installing the device, conduct a signal strength test. The MotionProtect Outdoor must be located at a height of 0.8 – 1.3 m. The detector body is located in a way that the upper lens axis is parallel to ground level and the supposed path of intruder entry passes perpendicular to the lens axis.
  • Page 11 double-sided adhesive tape during installation as it dries out over time and the detector may fall down leading to its malfunctioning. Detector installation procedure 1. Temporarily fix the SmartBracket attachment panel on the surface to determine the optimal place for installing the detector. The detector must be installed at a height of 0.8 – 1.3 meters.
  • Page 12 3. Put the MotionProtect Outdoor on the SmartBracket attachment panel. Leave the detector detection area (horizontal detection angle — 90°) and ensure that there is no motion within the detection coverage area to provide for calibration of masking sensors. TH COMMUNICATION SDN BHD www.thcomm.com.my...

  • Page 13: External Power Supply Connection

    Attention! The masking sensors will begin to calibrate automatically when the SmartBracket attachment panel is placed onto the MotionProtect Outdoor body. Calibration lasts up to 30 seconds and is followed by flashing of the upper and lower LED indicators of the detector.
  • Page 14 Connect the cable to the terminal strips observing polarity. Fix the wires with a clamp. Turn on the power — in the menu of the MotionProtect Outdoor detector, the value of the "External Power Supply" field will change to "Connected". Fasten the rear of the body with wood screws, install the detector and wait until calibration is complete.

  • Page 15: Maintenance

    3. Terminal strips on the detector board 4. Clamp on the back of the body Maintenance Clean the detector body from dust, cobwebs, and other contaminants as they emerge. Use a soft dry cloth that is suitable for equipment care. Do not use substances that contain alcohol, acetone, gasoline or other active solvents to clean the detector.

  • Page 16: Complete Set

    Overall dimensions 184 x 70 x 65 mm Weight 322 g Complete Set 1. MotionProtect Outdoor 2. CR123A battery — 2 pcs. (pre-installed) 3. Installation kit 4. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery.
