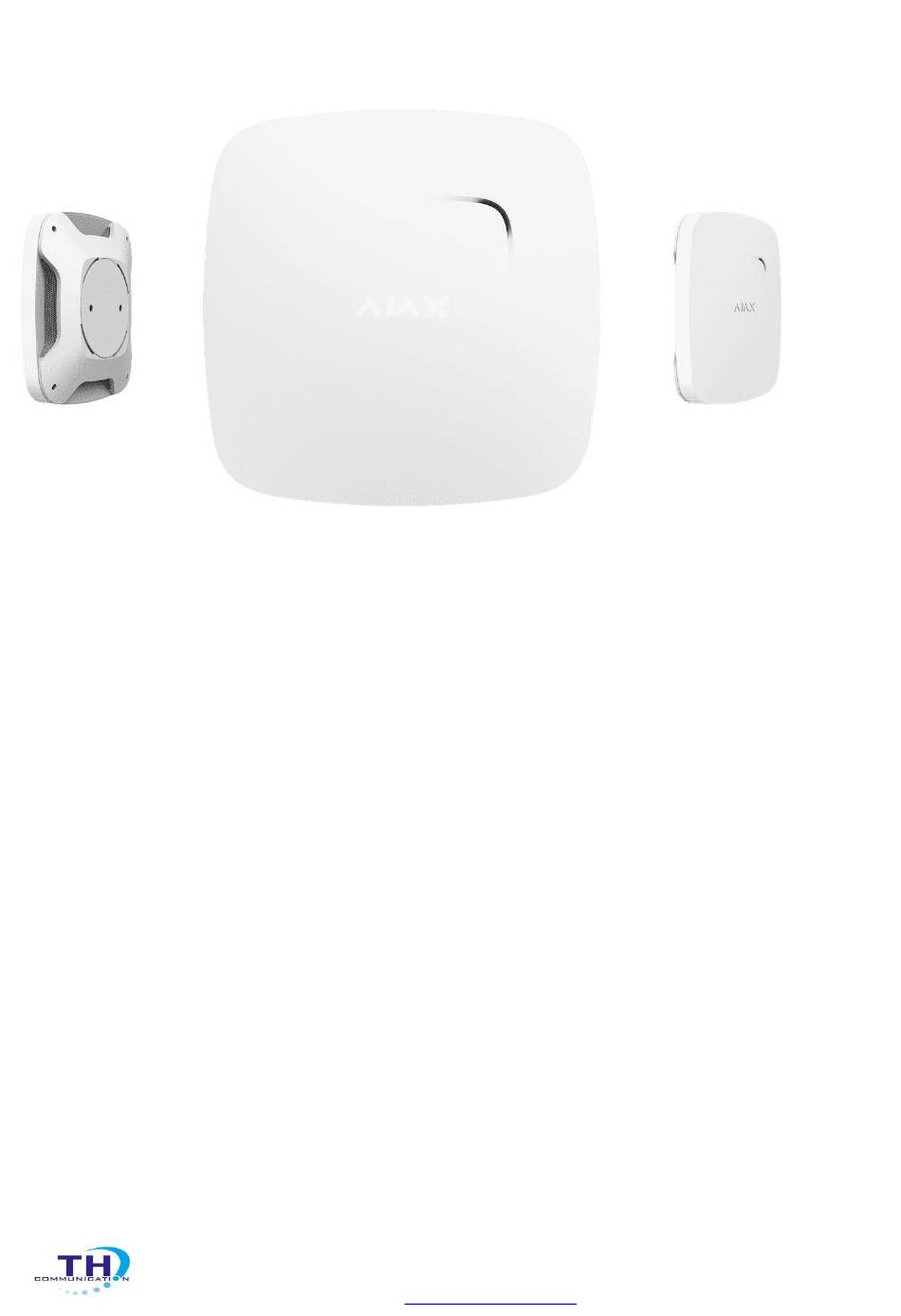

FireProtect / FireProtect Plus User Manual
FireProtect
(FireProtect
buzzer. It can detect smoke generation and temperature increase and function up to 4 years
from a battery and can operate autonomously.
FireProtect
(FireProtect
protected Jeweller protocol to the hub. The communication range is up to 1,300 meters if there
are no obstacles. In addition, the detector can be used as part of third-party security central
units due to the Ajax uartBridge or Ajax ocBridge Plus integration module.
��
Buy fire detector with carbon monoxide sensor FireProtect Plus
The detector is set up via a mobile application for iOS and Android-based smartphones. The
user is notified of all events through push notifications, SMS messages and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring
station of a private security company.
��
Buy fire detector FireProtect
Functional Elements
TH COMMUNICATION SDN BHD
Plus) is a wireless indoor inflammation detector furnished with a
Plus) operates within the Ajax security system, by connecting via the
www.thcomm.com.my
info@thcomm.com.my

Advertisement

loading
Need help?

Need help?

Do you have a question about the FireProtect Plus and is the answer not in the manual?

Questions and answers

Related Manuals for TH COMMUNICATIONS FireProtect Plus

Summary of Contents for TH COMMUNICATIONS FireProtect Plus

  • Page 1 Ajax uartBridge or Ajax ocBridge Plus integration module. �� Buy fire detector with carbon monoxide sensor FireProtect Plus The detector is set up via a mobile application for iOS and Android-based smartphones. The user is notified of all events through push notifications, SMS messages and calls (if activated).
  • Page 2 FireProtect Operating Principle FireProtect operates even without connecting to a security system, determining the smoke contamination level of the room and temperature increase (In addition, FireProtect Plus registers a dangerous CO level), including a sharp one - in the autonomous mode and supplied from batteries.
  • Page 3  within 60–90 min at carbon oxide concentration 50 ppm / 0.005%  within 10–40 min at CO concentration 100 ppm / 0.01%  within 3 min at carbon oxide concentration 300 ppm / 0.03%. You can deactivate the siren in case of smoke/inflammation detection by pressing the touch- sensitive button in the center of the detector's logo and via the Ajax Security System application.
  • Page 4 3. Select Add — the countdown will begin. 4. Switch on the device To make sure that the detector is on, press the on/off button - the logo will light up red for a second. TH COMMUNICATION SDN BHD www.thcomm.com.my info@thcomm.com.my...
  • Page 5 For the detection and interfacing to occur, the detector should be located within the coverage area of the wireless network of the hub (at a single protected object). Request for connection to the hub is transmitted for a short time at the time of switching on the device. If the connection to the Ajax hub failed, sensor will work autonomously;...
  • Page 6 Parameter State Smoke detected Smoke alarm state The alarm state for exceeding the threshold Temperature threshold exceeded temperature Rapid temperature rise The alarm state for rapid temperature rising Temperature of the device. Measured on the Temperature processor and changes gradually Signal strength between the hub and the Signal Strength detector...
  • Page 7 Connection status between the hub and the Connection device Smoke detector State of the smoke detector Smoke detector dust level Dust level of smoke chamber Firmware Detector firmware version Device ID Device identifier Setting Up the Detector Devices → FireProtect → ⚙ Setting Value First field...

  • Page 8: Performance Testing

    Selecting the virtual room to which the device is Room assigned If active, detector will react if temperature is 60°C High temperature alarm and higher If active, detector will react on rapid temperature Rapid temperature rise alarm rising (30°С for 30 minutes or less) If active, HomeSiren and StreetSiren are activated in Alert with a siren if smoke detected case of smoke alarm...
  • Page 9 The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start straight away but within a period of 36 seconds when using the standard settings. The test time start depends on the settings of the detector scanning period (the paragraph on “Jeweller”...
  • Page 10 1. Fix the SmartBracket panel on the ceiling using bundled screws. After selecting other attachment hardware, make sure that they do not damage or deform the panel. The double-sided adhesive tape may be only used for temporary attachment of the detector. The tape will run dry in course of time, which may result in the falling and damage of the detector.

  • Page 11: Tech Specs

    In case of the autonomous use, the detector will notify of the detected fire/smoke with a sound signal and light of the logo. To switch off the siren sound, press on the logo (there is a touch- sensitive button under it) or eliminate the cause of the actuated alarm. Detector Maintenance and Battery Replacement Check the operational capability of the FireProtect detector on a regular basis.

  • Page 12: Complete Set

    132 х 132 x 31 mm Overall dimensions Weight 216 g Complete Set 1. FireProtect / FireProtect Plus 2. Batteries CR2 (pre-installed) - 2 pcs 3. Battery CR2032 (pre-installed) - 1 pcs 4. Installation kit 5. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING”...
