Summary of Contents for Winston WSW1-80L-WM

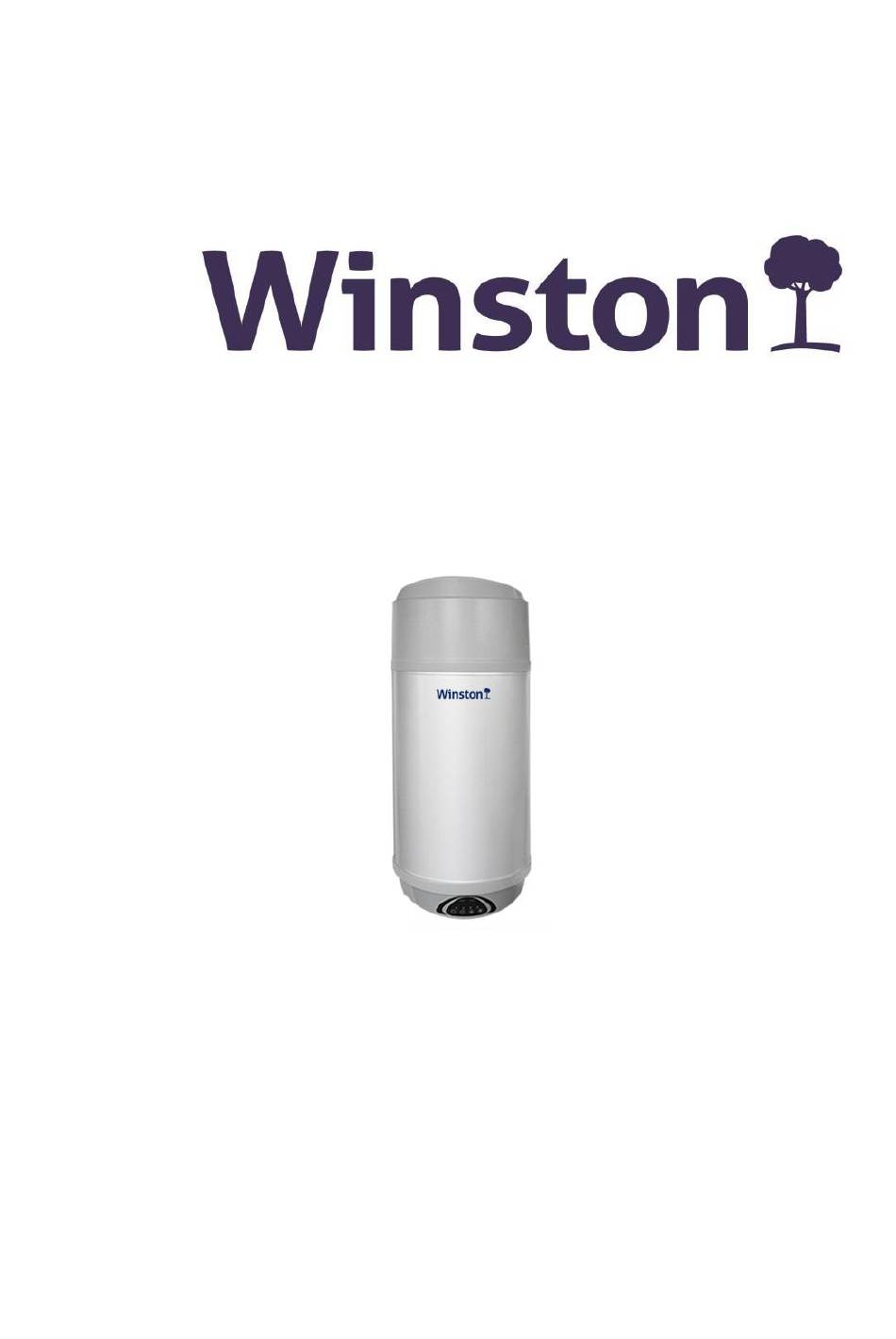

  • Page 1 SANITARY WATER WALL MOUNTED Operation & Installation Manual...
  • Page 2 WARNING This kind of units is the type electrical equipment Ensure perfect earth wire connection before use. If the earth wire connection is in poor condition or there is no earth wire in your house, please don't use the units. If you can not be sure that the earth wire is in good condition, please ask the qualified personnel to check it.
  • Page 3: Table Of Contents

    CONTENTS Safety Precaution 2.Installation Position 3.Safety Points For Attention 4.Specifiction Appearance 2 Feature 3 Principle 4 Structure & Dimension Performance parameter 5.Function 6.Installation 1 Installation sketch map 2 Choose the suitable unit 3 Preservation and transportation 4 Choose the suitable installation position 5 Hydraulic connection 6 Electric wiring 7 Trial operation...
  • Page 4: Safety Precaution

    1. Safety Precaution WARNING Good earth wire connection is necessary for household electricity. Electric leakage protector is necessary for household electricity. Don't rip off any explications, labels or parameter tables on/in the unit. WARNING The heat pump must be installed by qualified personnel to avoid improper installation which will lead to water leakage, electrical shock or fire.
  • Page 5: Installation Position

    2. Installation position Suitable installation position 1 The unit can be installed inside or outside of house. Installed in the basement is better. 2 Choose the place without direct sunlight or other radiant heat source . If it is possible, a cover is necessary to avoid the direct sunlight.
  • Page 6: Safety Points For Attention

    3>Safty attention Safty attention To prevent users' personal property damage and operate the unit in the correct and safety way, please carefully read the main contents in the manual. Based on completely understanding the following contents(the signs and diagrams)then read the body text, comply with the following notice.
  • Page 7 3. Safety attentions It could not be installed near the flammable gas which may cause leakage. Once the flammable gas leaking around the unit, Confirm the it may cause fire. installation location Installation Attention Items Confirm the foundation is solid. Confirm the fixed measure Verifying whether has installed the leakage protection switch.
  • Page 8 3. Safty attentions Warning Take a qualified professional person to be responsible for the installation work, if our own hands, an incorrect installation may cause water leakage, and fire, etc. Choose the location without direct sunlight and other heat source direct radiation. If you can't avoid, please install a covering to prevent the sun blazed down the machine.
  • Page 9: Specifiction

    4. Specification 1. Appearance Wind outlet Wind inlet Water tank Wire controller 2. Features Good looking and high efficiency Unit via streamlined design and combined with the exterior decoration, looks more exclusive. Unit with the characteristics of energy saving, the total energy consumption is only 65% of solar water heater and 25% electrical water heater.
  • Page 10: Principle

    4. Specification 3. Working principle System diagram: High temp. Comp Hot water Air from outside Duct Tank Air fin Cold air Optional discharged exchanger air space needed Water supply Low temp. Throttling Liquid device System Principle: Refrigerant is compressed into vapor with high temperature and high pressure when it goes through the compressor.
  • Page 11: Structure & Dimension

    4>Specification 4. Structure and dimension Unit mm Model WSW1-80L-WM Dimension 1215 0520 Air outlet 0125 Air inlet overheating protector Supporting bracket Pressure release valve Supporting bracket Hot water outlet Cold water inlet Condensing water drainage pipe...
  • Page 12: Performance Parameter

    4. Specification 5. Performance table Model WSW1-80L-WM Wall Mounted Heating capacity Water tank capacity 0.27 Power input Running current 230V~/50H Power supply Compressor number Rotary Compressor °C Rated outlet water temp. dB(A) Noise inch Water inlet/outlet size Net dimensions see the drawing of the units...
  • Page 13: Function

    5> Functions explanation 1.Machine function description Heating capacity Because the supplied hot water absorbs heat from the surrounding air and release the heat at heat exchanger side. Once ambient temperature goes down, the heating capacity may decrease accordingly. 3 minutes protection When stopping after running, the user immediately starts the unit or turns on manual switch, the unit will not run within 3 minutes.
  • Page 14: Installation

    6.Installation and connection Hot water heat pump installation diagram Air flow outlet Air flow inlet ≥ 600mm ≥ 400mm Pressure release valve overheating protector Hot water outlet Condensing water water in Filter drainage pipe One way valve Drainage water The shortest distance allowed: To not affect the air inlet and outlet of the machine, please confirm the installation distance as the picture shows above.
  • Page 15: Choose The Suitable Unit

    6. Installation and connection 2. Choosing a proper model For energy-saving and convenience purpose, please choose proper volume of a water tank, the selection case is below: 80-100L is proper for 1 - 3 users. Notice: The selection of a water tank is only a reference, please choose a proper.
  • Page 16: Choose The Suitable Installation Position

    6.Installation and connection 4 Installation place choosing (1) Wall-mounted installation and offering sanitary hot water See picture below The unit is mounted on the wall which will not take up much space. (1) Waste heat recycled application(See picture below) The unit can be installed outside of kitchens, fire place rooms and garages where have much waste heats.
  • Page 17 6.Installation and connection 3 Sanitary hot water and dehumidification (See picture below) 4 Sanitary hot water and cooling storage room (See picture below) The unit can be put in storage room of wine, drink, fruits. When the unit is making hot water, it also can provide cool air to fresh the foods.
  • Page 18: Hydraulic Connection

    6. Installation and connection Attention items before installation 1) Choose a right way of carrying the unit in. 2) Try best to carry the unit with original package. 3) If the unit is installed on the metal parts of a building, all parts need to be electric- insulated well to fully meet related technical standards on equipments.
  • Page 19 6. Installation and connection Installation instruction diagram The wall Stop valve Heat pumpwater heater Filter Cold water inlet pipe Hot water outlet pipe Pressure release valve drain pipe The draining water pipe for condensate water The location of draining water Accessories provided: safety release valve.
  • Page 20: Electric Wiring

    6.Installation and connection 6. Electric wiring Instruments should be installed in accordance with state wire installation rules. At the bottom of the unit there are electric plugs for the user to connect the unit to the power supply. When the external circuits connecting with the unit, the circuit connection should be with leakage protection device and power broker device.
  • Page 21: Operation & Usage

    7.Operation and usage 1. controling panel function sketch map Outlet water temperature Setting temperature Standard mode indicator Energy saving mode indicator light(green) light(yellow) Running indicator Rapid heating mode indicator light(red) light(red) Modes choosing button Decrease button Power on/off button Increase button 2.
  • Page 22 7.Operation and usage Red shine Red shine Rapid heating mode The functions of three different modes are as following: 1 Standard mode When the yellow light of standard mode shining, it suggests the unit is working in the standard mode condition. The mode is applicable to the climate conditions of the whole year.
  • Page 23: Parameter Seting

    7. Operation and usage Parameter setting Power on and press " to rise the set point, press " to decrease the set point. Set point Water out temp. DOWN press " " to rise the set point Press " " to decrease the set point...
  • Page 24: Set Point Automatic Regulation

    7.Operation & Usage Set point automatic regulation The mode of the factory setting is automatic mode, which it can change the set point follow the ambient temperature automatically. Decreasing the set point properly can save more energy in the summer and the set point will rise automatically to make sure the comfortable use in the winter.
  • Page 25: Maintenance & Repair

    8.Maintenance & Repair 1. Maintenance. Check the parts of the unit and the pressure of the system regularly (1 year). If there is any unusual phenomena, repair and replace it immediately. Check if the electrical wiring is firm and the electrical element has any unusual action and smell. If so, repair and replace it immediately.
  • Page 26: The Non-Fault Phenomena

    8. Maintenance & Repair The non-fault phenomena Why the compressor is not running when I start the unit? Answer When the unit is on after stopping, the unit will not run until 3 minutes later. It is the self-protection of unit. When the ambient temperature is lower than 2°C, the compressor will stop and the electric heater will be on.
  • Page 28 CODE 20170424-0001...
