Protein Skimmer User Manual

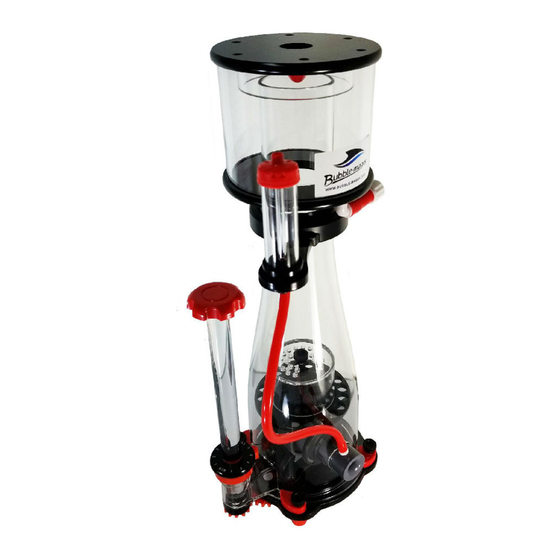

Product's Name: Internal Protein Skimmer Curve Elite Series
Model
CURVE 5 ELITE
CURVE 7 ELITE
CURVE 9 ELITE
Packaging Overview: collection cup, skimmer body, bottom board, water draining system,
venturi with tubing, water pump, and user manual.
Parts List:
1.
Lid
2.
Collection Cup
3.
Drain Tube/Outlet
4.
O-Ring Cup Outlet
5.
Skimmer body
Valid Aquarium
80-130 gallons
130-230 gallons
230-400 gallons
11.
Nylon Screws (10)
12.
Pump Mounts (2)
13.
Bottom Board
14.
O-Ring Muffler
15.
Muffler
Pump Model
SICCE SK 200
SICCE PSK 1000
SICCE PSK 1200
Advertisement
Summary of Contents for Bubble Magus Curve Elite Series
- Page 1 Protein Skimmer User Manual Product’s Name: Internal Protein Skimmer Curve Elite Series Model Valid Aquarium Pump Model CURVE 5 ELITE 80-130 gallons SICCE SK 200 CURVE 7 ELITE 130-230 gallons SICCE PSK 1000 CURVE 9 ELITE 230-400 gallons SICCE PSK 1200 Packaging Overview: collection cup, skimmer body, bottom board, water draining system, venturi with tubing, water pump, and user manual.
- Page 2 Diffuser Plate Water Output Adjusted Valve Pump outlet (Locknut for 7/9 ELITE) Air Intake Tube Leading Box Vanturi Gel mat (4) Lower Diffuser Plate 10. Water Pump ** Note: parts may come pre-assembled. Installation: 1. Mount the pump to board. a.
- Page 3 Maintenance: 1. Service the collection cup and the neck regularly. 2. Disassemble and clean the venturi and pump every 3 to 6 months. a. Disassemble, inspect, and clean the impeller to maximize life and performance. 3. A complete skimmer cleaning is recommended every 6 to 12 months. 4.
- Page 4 CURVE 5/7/9 ELITE Installation sketch map...
