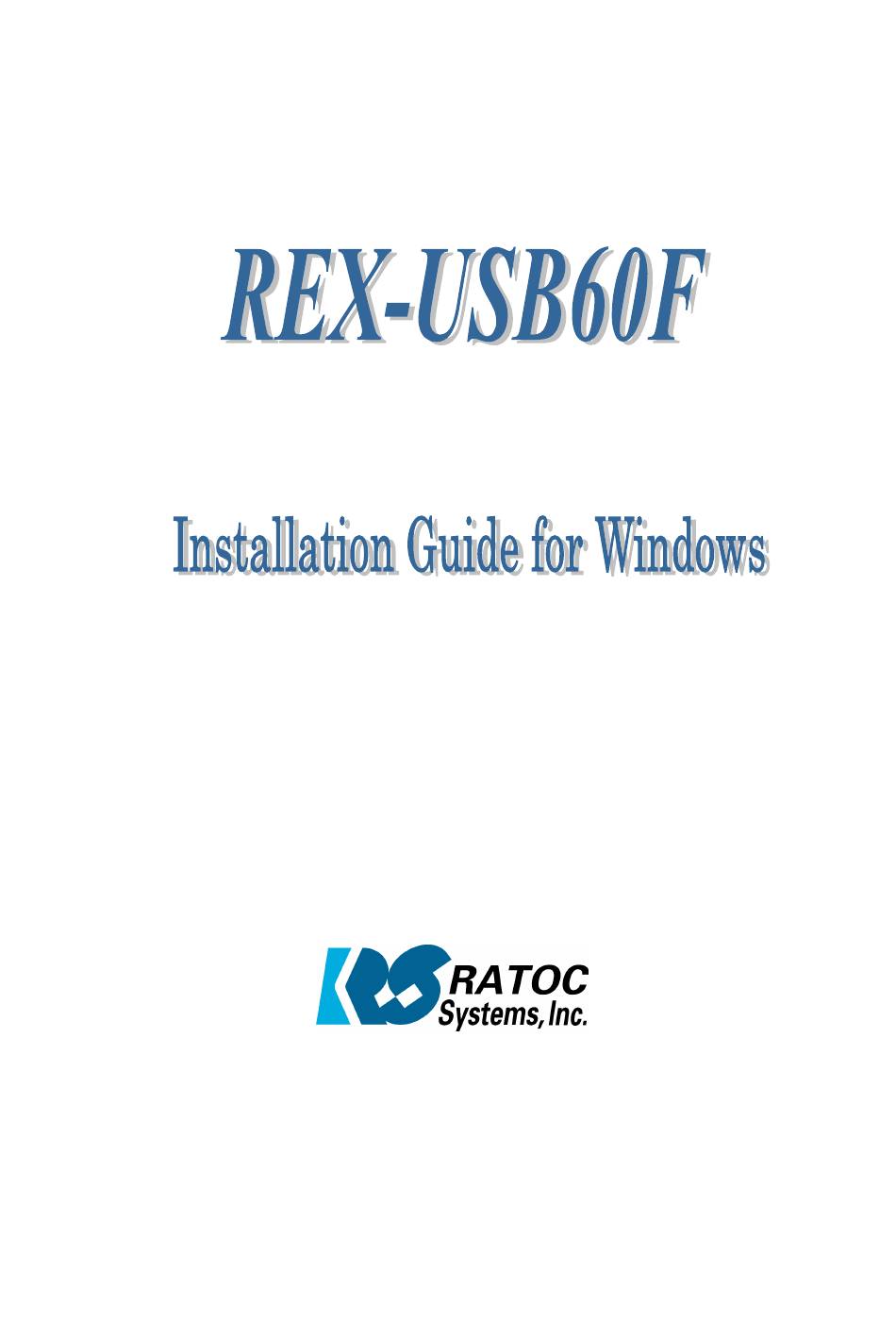

- Page 1 USB Serial Converter USB Serial Converter USB Serial Converter USB Serial Converter 201 1 1 1 6 6 6 6 ..0 0 0 0 5 5 5 5 Rev. 1.0 .0 .0 .00 0 0 0 Rev.
-
Page 2: Table Of Contents
Contents 1. 1. 1. 1.Introduction Introduction Introduction Introduction ..............2 1-1. Overview................2 1-2. Package Contents ..............2 1-3. System Requirements and Restrictions ......2 1-4. DB9(RS-232C) connector Pin Assignment ......3 2 2 2 2 ..I I I I nstallation on nstallation on nstallation on Windows PC nstallation on... -
Page 3: Introduction Introduction
1 1 1 1 - - - - 1. 1. 1. 1. Overview Overview Overview Overview ● REX-USB60F is a USB to serial converter. Compatible with Universal Serial Bus specifications Rev. 1.1. ● Up to 230.4Kbps data transfer rate. ● Standard USB (A type Male) Easy to connect PC. -
Page 4: Db9(Rs-232C) Connector Pin Assignment
1 1 1 1 - - - - 4 4 4 4 ..DB9( DB9( DB9(RS DB9( RS- - - - 232C 232C 232C 232C) ) ) ) connector connector connector connector Pin Assignment Pin Assignment Pin Assignment Pin Assignment The pin assignment of the connector is below: This DB9pin connector is compatible with ANSI/EIA/TIA-574 specifications. -
Page 5: 2 2 2
Before connecting the REX-USB60F USB serial converter to a USB port, follow the instructions below: 1) Insert the setup CD-ROM for the REX-USB60F into your CD-ROM drive. Navigate to the [Setup] folder on the CD that contains the USB60F_Setup.exe Double click USB60F_Setup.exe. - Page 6 3) The InstallShield Wizard for RATOC REX-USB60F Installer will start. Click [Next] to proceed with the installation. 4) A “RATOC REX-USB60F Installer“ will start. Click [Install] to proceed with the installation.
- Page 7 5) A “Windows Security” dialog box will appear. Click [Install] to proceed with the installation. 6) A “Windows Security” dialog box will appear again. Click [Install] to proceed with the installation.
- Page 8 7) The screen will automatically complete and then change to the one below: Click [Finish]. The “RATOC REX-USB60F Installer” has finished. Connect the REX-USB60F to a spare USB port on your PC. The necessary drivers will be found. It will start installation and automatically finish.
-
Page 9: Confirmation
2 2 2 2 - - - - 2 2 2 2 ..Confirmation Confirmation Confirmation Confirmation For confirming the installation has finished properly. Open the Device Manager and select “View > Devices by Connection”. Under the “Ports(COM/LPT)”category, the label “USB Serial Port” with an additional COM port will appear. -
Page 10: Uninstallation On Windows 10/8.1/8/7/Vista Server2012 R2/Server2012/Server2008 R2/Server2008
R2/Server 2008 Open the [Program and function] at the [Control Panel]. Select the [RATOC REX-USB60F Installer] and click [Uninstall]. The InstallShield Wizard for RATOC REX-USB60F Installer will start. The following dialog will appear. Click [Yes] to proceed with the uninstallation. - Page 11 The screen will automatically complete and then change to the one below: Click [Finish] to finish with the uninstallation.
-
Page 12: 3 3 3
3 3 3 3 ..Specification Specifications s s s Specification Specification Product Name REX-USB60F RS-232C level Serial Input/Output level USB(Universal Serial Bus) Specifications Rev. 1.1 USB Specification Connector ：Standard-USB Type A male RS-232C：D-Sub9 male (with anchor [#4-40])
