Lenkeng LKV366 User Manual

BNC TO HDMI CONVERTER

USER MANUAL

If you need to replace expensive LCD video
monitor by normal LCD, or you need to convert
BNC signal to HDMI signal, this BNC to HDMI
video converter will be your best choice. This
converter is an economic, effective and perfect
solution for lossless video conversion.

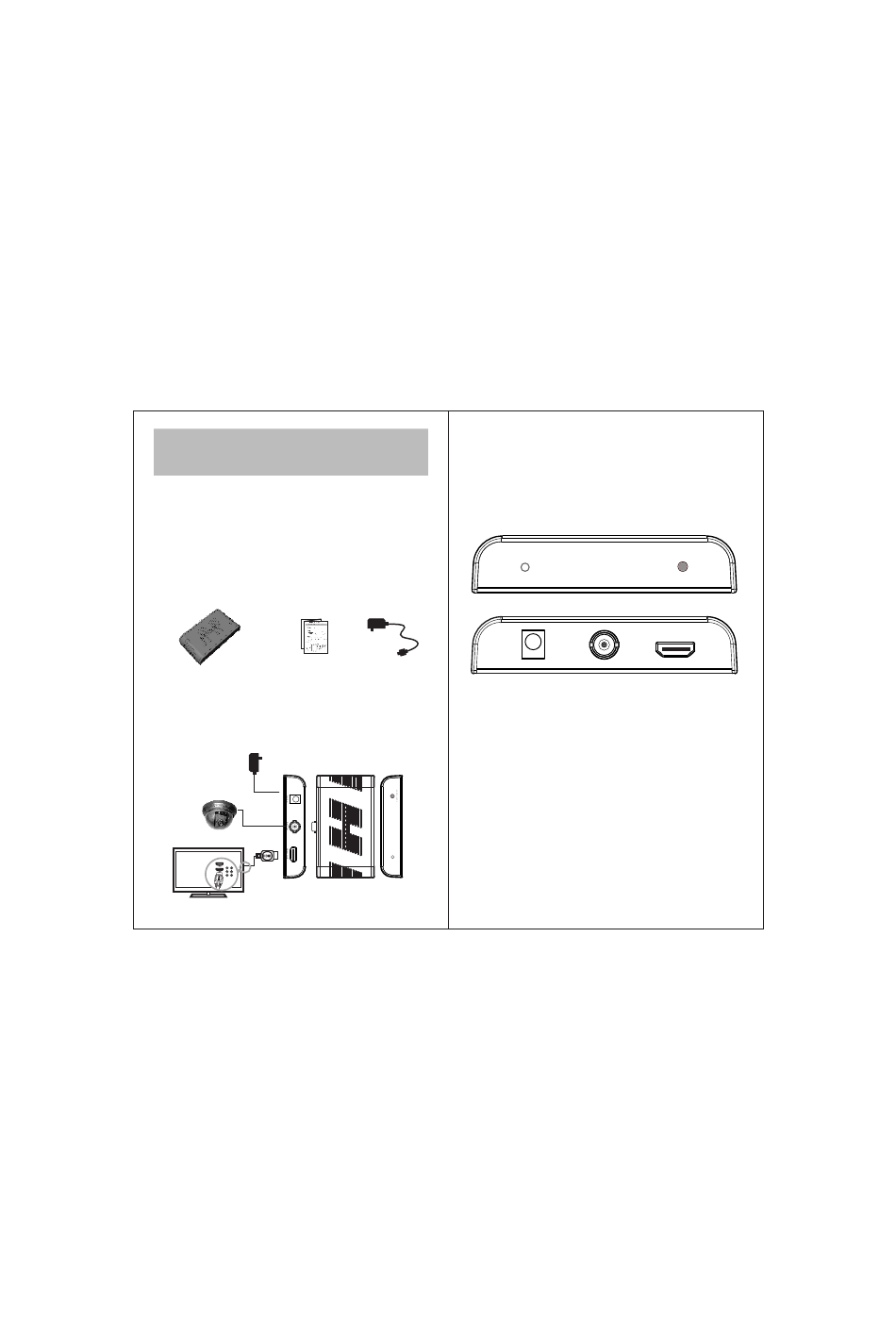

1、Package details
BNC to HDMI converter User Manual
2、D evices requirements
①. Cameras with BNC input or other BNC devices
②. TV or projector with HDMI input
3、I nstallation:
DC 5V/1A
BNC IN
HDTV
①. Connect the BNC source to the converter with
BNC cable
②. Connect the converter to HDTV with HDMI
cable. Power it on and adjust HDTV to the
corresponding HDMI channel.
4. Operation
DC 5V
Power supply DC5V1A
①.720P/1080P: Press to choose output HDMI
signal as 720P@50Hz,1080P@50Hz,720P@60Hz,
1080P@60Hz
LED is red when output 720P, greenwhen output
1080P.
②. Long press 720P/1080P button for 3 seconds to
switch between 4:3 and 16:9 etc mode.
5.Trouble shooting
Q: No image output?
A: 1)Check and make sure all the connection is
correct, signal LED indicator lights up and
HDTV channel is chosen correctly.
2)Check whether TV supports to output HDMI
signal format
720P/1080P
Front panel
BNC IN HDMI OUT
Rear panel
