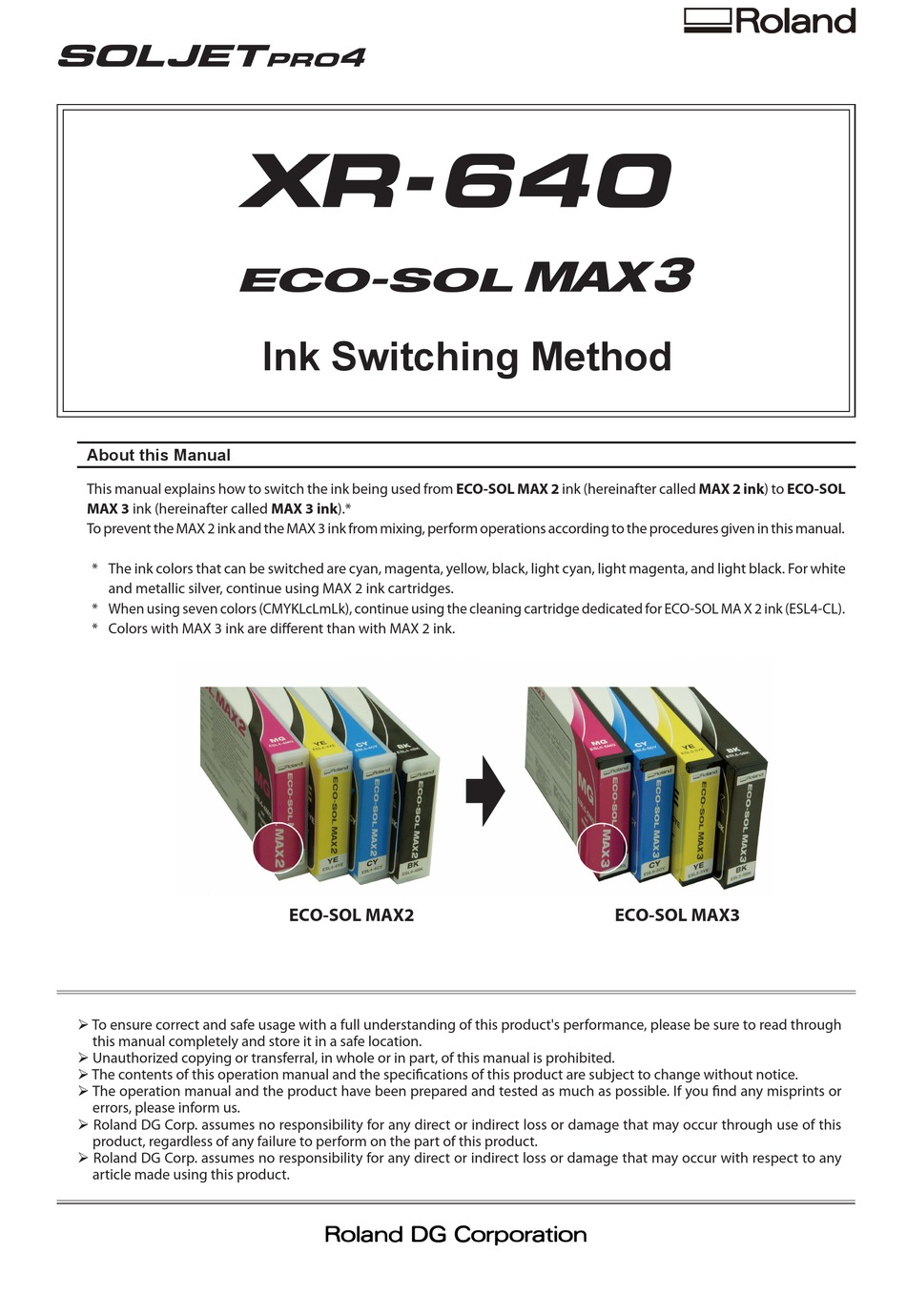

About this Manual
This manual explains how to switch the ink being used from ECO-SOL MAX 2 ink (hereinafter called MAX 2 ink) to ECO-SOL
MAX 3 ink (hereinafter called MAX 3 ink).*
To prevent the MAX 2 ink and the MAX 3 ink from mixing, perform operations according to the procedures given in this manual.
* The ink colors that can be switched are cyan, magenta, yellow, black, light cyan, light magenta, and light black. For white
and metallic silver, continue using MAX 2 ink cartridges.
* When using seven colors (CMYKLcLmLk), continue using the cleaning cartridge dedicated for ECO-SOL MA X 2 ink (ESL4-CL).
* Colors with MAX 3 ink are different than with MAX 2 ink.
 To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through
this manual completely and store it in a safe location.
 Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.
 The contents of this operation manual and the specifications of this product are subject to change without notice.
 The operation manual and the product have been prepared and tested as much as possible. If you find any misprints or
errors, please inform us.
 Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage that may occur through use of this
product, regardless of any failure to perform on the part of this product.
 Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage that may occur with respect to any
article made using this product.
Ink Switching Method
ECO-SOL MAX2
ECO-SOL MAX3
