3. Installation
Figure-2 and figure-3 below shows the front and rear panels of 6-channel and 14-channel 8512 series module.
3.1. Rack Mounting
The Model 8512 Series can be mounted in any rack or cabinet that conforms to EIA RS-310 or MIL-STD-189.
3.2. Initial Setup
The following initial setup procedures should be performed prior to operating the Model 8512.
1. Perform an initial inspection of the unit.
2. Verify the AC power connection is configured to the correct voltage for your region.
Installation

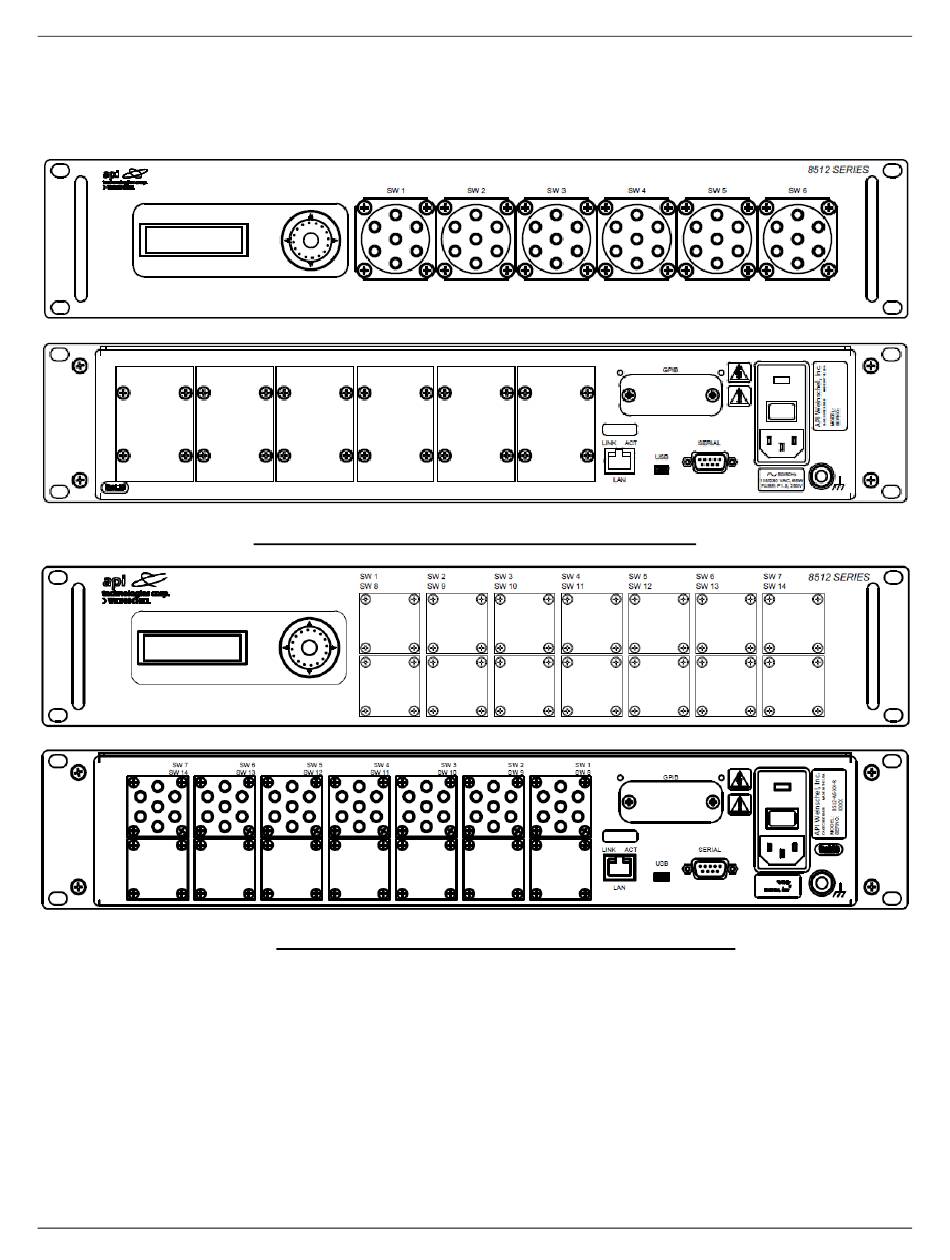

Figure-2: Front and rear panel of 6 channel module
Figure-3: Front and Rear Panel of 14 channel module
MANUAL IM635
Page 10
