- Page 1 Seabury Talia 19 707 19 708 English English page ..1 page ..1 Français Français page ..2 page ..2 Español Español página ..3 página ..3 95.904.231ÄM 49 245/01.04 TP 107 C041...
- Page 2 19 707 19 708 Please pass these instructions on to the end user of the fitting! S.v.p remettre cette instruction à l'utilisateur de la robinetterie! Sirvanse pasar ese instrucción al utilizador de la grifería!
- Page 3 35 250 35 251 19 707 35 252 35 253 19 708...
- Page 4 English Installation Note: The preset maximum temperature will change if the inlet 1. Remove the two screws (A1) from the fitting template (A), temperatures change or the setting of the water heater then remove the template, see fold-out page I, fig. [1]. thermostat is altered.
- Page 5 Français Installation Remarque: La température maximum préréglée change lorsque les 1. Enlever les deux vis (A1) du gabarit de montage (A), puis températures d'arrivée varient ou lorsque le réglage du retirer celui-ci, voir volet I, fig. [1]. thermostat du chauffe-eau est modifié. 2.
- Page 6 Español Instalación Nota: 1. Saque los dos tornillos (A1) del patrón de montaje (A) La temperatura máxima prefijada cambiará si las y extraiga a continuación el patrón, ver la página temperaturas de entrada varían o si se altera el ajuste del desplegable I, fig.
Need help?
Do you have a question about the Seabury 19 707 and is the answer not in the manual?
Questions and answers
How do I get the K part off. Grohe Seabury
Still does not pull off I used vinegar . Do i ineed a tool?
To remove the K part (scale handle) from the Grohe Seabury 19 707, follow these steps:
1. Unscrew the handle (M) or lever (N), as shown in fig. [9].
2. Unscrew the handle sleeve (L) and pull off the scale handle (K).
This will detach the K part from the assembly.
This answer is automatically generated

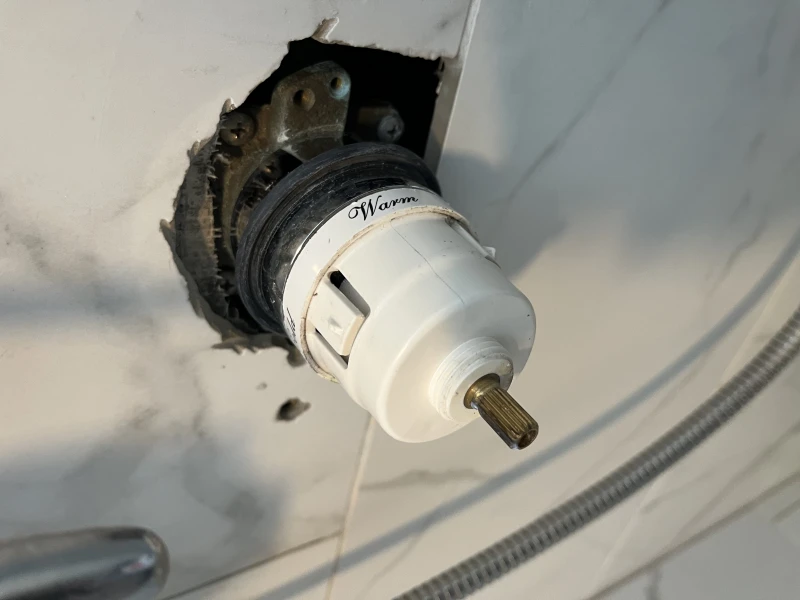

How do I remove the part with the temperature?
To remove the temperature control part of the Grohe Seabury 19 707, follow these steps:
1. Unscrew the handle (M) or lever (N) – Do not use excessive force.
2. Unscrew the handle sleeve (L) and pull off the scale handle (K).
3. Loosen the screw (G2) and remove the adapter (G).
4. Loosen screws (J1) and remove the escutcheon (J).
5. Shut off hot and cold water stops (C) – The slots should be vertical when in the off position.
6. Loosen screws (E2) and detach the plastic guide (E).
These steps allow access to the temperature control components for removal or adjustment.
