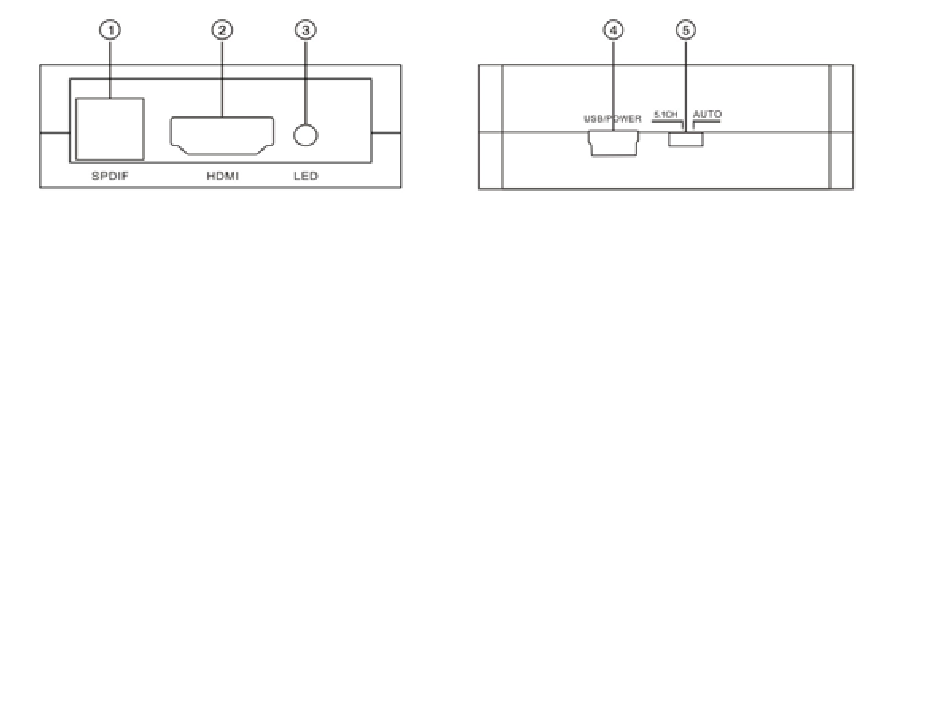

1) SPIDF (Digital) Output: Connect to an amplifier using optical fiber cable Toslink
cable.
2) HDMI Input: This socket connects from the HDMI source, i.e. DVD, game console,
etc.
3) Power LED: This red LED illuminate when the device is connected to an active HDMI
source.
4) Power Input: This input does not to be connect to any power for standard operation.
5) Switch: Select 5.1CH, AUTO audio mode based on the Audio format.
