Summary of Contents for Digitech Audio Visual AC1741

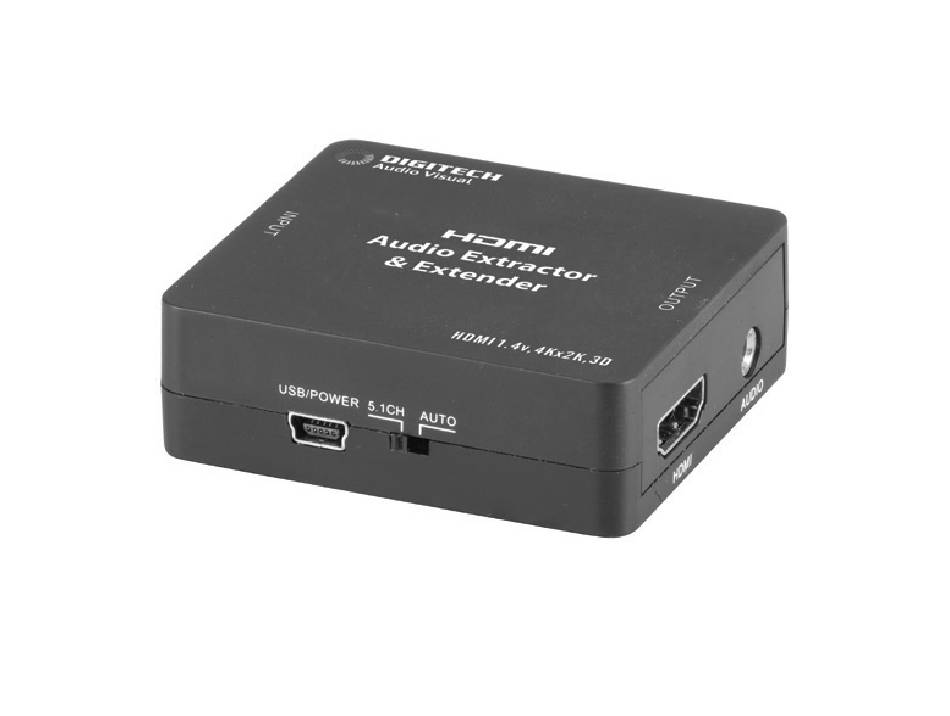

- Page 1 HDMI Audio Extractor And Signal Booster – AC1741 User Manual Package...
- Page 2 HDMI Audio Extractor USB Power Cable 3.5mm to RCA cable Operation Manual Specifications Frequency Bandwidth 2.97Gbps Input Ports 1 x HDMI Female ports. Output port 1 x HDMI Female port,1x Toslink,1x Earphone HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, Power Supply 5V DC , 500ma (Not supplied, sold separately) ESD Protection...
- Page 3 1) SPIDF (Digital) Output: Connect to an amplifier using optical fiber cable Toslink cable. 2) HDMI Input: This socket connects from the HDMI source, i.e. DVD, game console, etc. 3) Power LED: This red LED illuminate when the device is connected to an active HDMI source.
- Page 4 6) HDMI Output: This socket connects to a HDTV or monitor with HDMI cable. 7) Audio (Analogue) Output: Connect to an amplifier using 3.5mm stereo cable. Power Input & HDMI Extender Feature Note; To extend HDMI signal up to 20m, a power supply is required that has an output rating of, 5V DC 500mA.
-
Page 5: Application Example
Application Example IMPORTANT: - Never attempt to open, repair or modify any part of this unit or its accessories. - Never get any part of the device or its accessories wet. - Failure to adhere to these points will result in a void of warranty.
