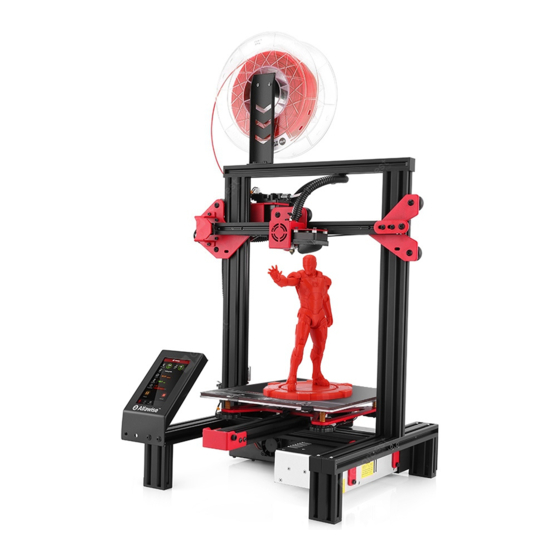

Summary of Contents for Alfawise U30 Pro

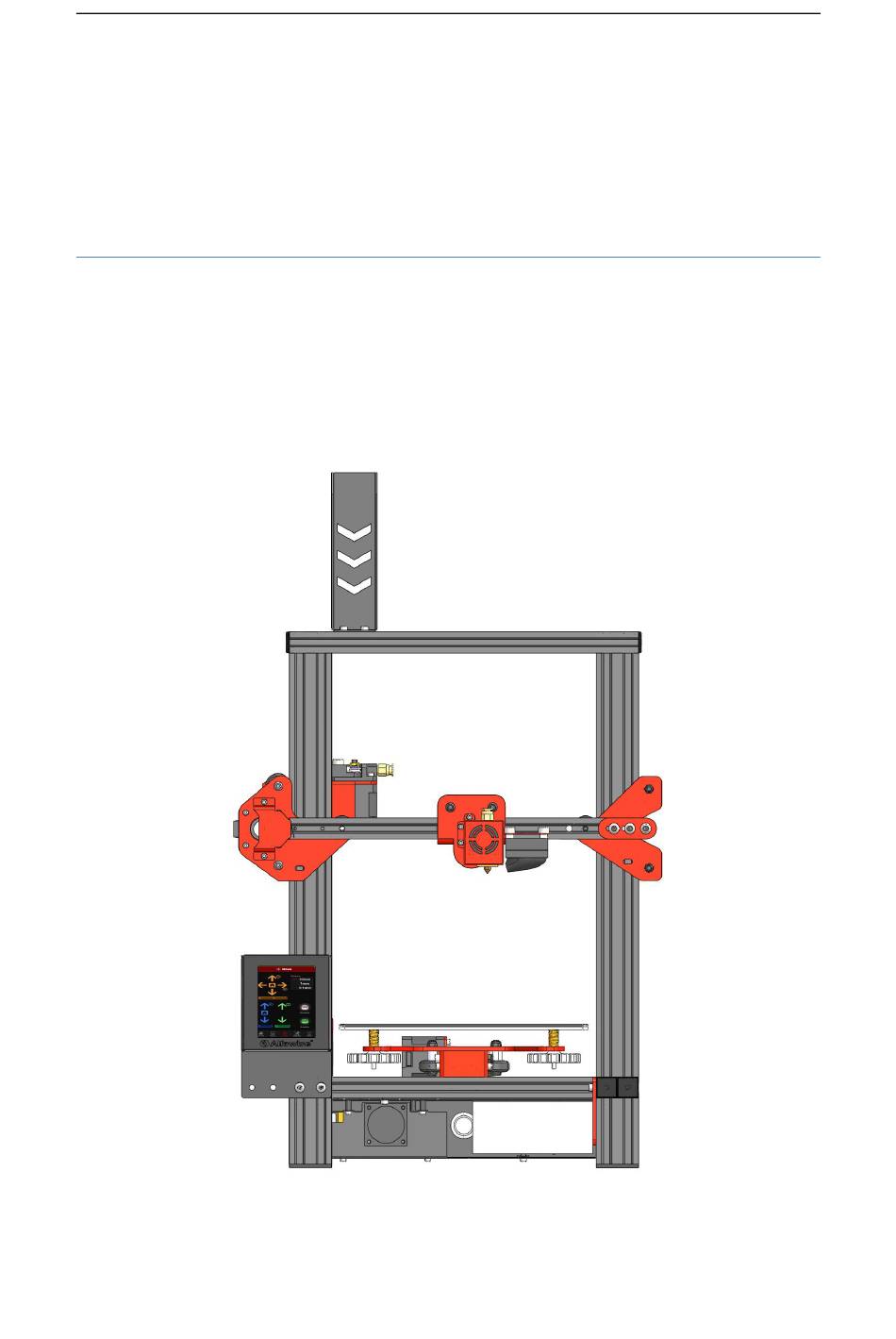

  • Page 1 U30 Pro operating instruction Alfawise...

  • Page 2: Table Of Contents

    catalogue A. Product information........................3 (1) Model parameter........................3 (2) Machine introduction......................2 (3) Nozzle module exploded view....................2 (4) Machine assembly......................... 3 1. Gantry installation......................3 2. X-axis installation......................4 3. Mounting the x-axis beam....................7 4. Install the gantry upper beam..................7 5. Mounting screw.......................7 6.Install Teflon tube......................8 7.Install the z-axis limit switch....................
  • Page 3 between the nozzle and the heated bed are very far or very close. If the spring is adjusted to the extreme position, it still cannot be leveled. What should I do?... 43 Question 6: ..........................44...
  • Page 4 Safety Precautions 1) The temperature of the nozzle parts can reach 250 °C during the operation of the machine. To ensure your safety, it is forbidden to touch the model and nozzle directly with your hand while the printer is printing or cooling.
  • Page 5 The front end of the consumable should be fixed on the tray to avoid consumables and affect the next print. To use this printer, it is recommended to use the supplies provided by the company. At present, the quality of consumables sold in the retail market is uneven, and printing is prone to breakage.

  • Page 6: Product Information

    A.Product information (1) Model parameter model U30 Pro Machine size 402*382*655mm frame Classic aluminum Machine weight 7.8KG frame Molding FDM (hot melt Package 467*412*187mm production) dimensions Number of nozzles Consumable color Multi-color optional Molding size 220*220*250mm Output 24V Power requirement Layer thickness 0.1-0.4mm...

  • Page 7: Machine Introduction

    (2) Machine introduction Rack Gantry Extruder module Nozzle module Hot bed Motherboard Foot power supply (3) Nozzle module exploded view 4010 fan Air guide 3010 fan Quick pneumatic joint Sheet metal protective case Heat sink Heating block nozzle Thermistor Heater...

  • Page 8: Machine Assembly

    (4) Machine assembly 1. Gantry installation Two blue boxes in the picture, need to be in one direction The screw used is M5*20...

  • Page 9: X-Axis Installation

    2. X-axis installation Screws are all M4*16 If the nozzle block wheel cannot enter, use a wrench to adjust the eccentric nut.
  • Page 10 Box side up...
  • Page 11 The tension of the belt can be adjusted by the two screws on the...

  • Page 12: Mounting The X-Axis Beam

    3. Mounting the x-axis beam If the wheel does not fit in, you can adjust the wheel with the eccentric nuts on both sides. Let the X-axis beam enter 4. Install the gantry upper beam Use 4 M5*20 5. Mounting screw Use 2 M4*16...

  • Page 13: Install Teflon Tube

    Let the lead screw snap into the coupling and the motor shaft is also aligned with the lead screw. Tighten the top wire Adjust the screw movement by adjusting these two screws. The two screws cannot be tightened too tightly. Turn the coupling hand adjust...

  • Page 14: Install The Z-Axis Limit Switch

    7.Install the z-axis limit switch Z-axis limit opening installation is about 15mm from the base (this is adjustable) 8.Mounting aluminum substrate...

  • Page 15: Wiring

    9.Wiring 1. X motor line 2. X limit switch line 3. E-axis motor line 4. E-axis break detection 5. Z-axis motor line 6.Z-axis limit swit 10. Screen wiring...

  • Page 16: Mounting Rack And Glass

    11.Mounting rack and glass 12 .Assembly completed...

  • Page 17: 5） Power Regulation

    （5） Power regulation If the access voltage is 220V, please adjust the power supply in the control box to 220V, please be sure to confirm before powering on. Otherwise it will burn the power If the access voltage is 110V, please adjust the power supply control box to 110V, please...

  • Page 18: 6）Leveling Method

    （6）leveling method You can manually click the XY zero and Z zero in the Leveling interface, then unlock, manually move the hot bed and the nozzle, and then adjust the leveling nut so that the distance from the nozzle to the hot bed is about one A4 paper thickness.。...

  • Page 19: B． Machine Operation

    B． Machine operation （1）Machine control interface description Primary Secondary Explain interface interface Nozzle temp Display nozzle temperature Heatbed temp Display the temperature of the hot bed File The name of the file Time Print time HOME Progress Print process Height Print height Pause time out...
  • Page 20 Restore Restore default (100%) step Nozzle flow step size LEDs Open \close LEDs light control Nozzle temp Nozzle temperature display Hot bed temperature Heatbed temp display Filament type PLA\ABS Filament Cool Nozzle\ Heatbed Utilities Feeding/returning length Filament change control Load\Unload Feeding/returning control Start Leveling...

  • Page 21: 2）Home Interface

    （2）Home interface Print file parameter information Pause Cancel...

  • Page 22: 3）Move Interface

    （3）Move interface Distance adjustment XY zero XY mobile interface Z zero mobile interface Motor unlocked\locked E-axis feed and discharge...

  • Page 23: 4）Tune Interface

    （4）Tune interface Nozzle temperature temperature Feed rate override Fan speed Nozzle flow rate...
  • Page 24 Distance ajustment restore cooling cooling increase reduce restore stop...

  • Page 25: 5）Utilities Interface

    （5）Utilities interface Consumable setting control Automatic leveling control...
  • Page 26 Temperature parameter Nozzle Consumable temperature heating option return to zero temperature return to zero Nozzle Feed temperature adjustment Return material...

  • Page 28: 6）Print Interface

    （6）Print interface File selection and display scroll Select the display of the file Start...

  • Page 29: C． Cura Installation And Operation Software

    C． Cura installation and operation software 26 26...
  • Page 30 27 27...

  • Page 32: 1）Slice Software Offline Printing Instructions

    （1）Slice software offline printing instructions...

  • Page 35: 2）Software Parameter Setting

    （2）Software parameter setting...
  • Page 36 Layer thickness：0.1~0.4mm available. 0.1mm high precision but long printing time, 0.4mm low precision but printing time is too short, in general select 0.2mm. Shell thickness: 0.4mm is very thin, in general select 1.2mm,that will increase printing time. Enable retraction: To prevent the wire from leaking when printing quickly, otherwise it will affect the appearance.
  • Page 37 Nozzle size: 0.4mm. Retraction Speed: The speed of retraction when printing. Retraction distance: The length of material retraction, generally select 4.5~8mm. Initial layer thickness: The first layer thickness of printing. Select default option. Initial layer line width: 100% will be thicker and denser, Select default option. Cut off object bottom: The length of cutting off the bottom of model.

  • Page 38: D． Operation For Online Printing

    D． Operation for online printing Power on the printer, connect USB to a computer, the driver will be installed automatically. If it doesn't install automatically, find the driver under the driver folder and install it manually.
  • Page 39 2. Ctrl + "," opens the "Preferences" dialog. 3. Click on the menu "Model" "" Model Settings" to open Select the corresponding serial port (different computer serial ports may be different, generally choose the larger one), the baud rate is "AUTO", click "OK".
  • Page 40 2.After loading a file, click the status icon above or "Ctrl+P" to start printing, and the print window will pop up. We can click on the gray circle on the window to control the motion of the XYZE axis, respectively, 0.1, 10, 100 means the amount of each movement. The G-code control can be entered in the lower right corner text box.

  • Page 41: E． Resume Printing And Filament Run-Out Detection Function

    E ． Resume printing and filament run-out detection function （1）Power failure When printing, the power is suddenly turned off. If the height of the printed model exceeds 0.1mm, the icon will be displayed when the power is turned on. Only the icon will be displayed once.

  • Page 42: 2）Broken Material Detection

    （2）Broken material detection At this point, pull the Teflon tube out of the extruder end, take out the material, refill the consumables to the nozzle, click YES, after replacing the material, click Utilities, and finally click Print to start, the model will print.

  • Page 43: F． Faq Manual

    F． FAQ manual Question 1: How to update the firmware? 1. Connect the data cable to your computer and printer and open the cura15.04.3 version. 2. Click cura's machine setting, click baudrate, set to 115200. 3. Click on Install custom firmware in cura 4.
  • Page 44 Question 2:What if the filament does not discharge from the machine? 1. After the machine nozzle is heated, the consumables are normally fed into the feeding mechanism by hand, and then passed through the Teflon tube to enter the nozzle. 2.
  • Page 45 Question 3: When the machine returns the filament, it can't be returned. What should I do when stuck in the pneumatic joint? 1. Before returning the material, please heat the nozzle first, and then withdraw the consumables as soon as possible. If you can't pump it, you can re-feed the material with the advanced material, and melt the extruded block formed at...
  • Page 46 Question 5: When the machine is leveling, the nozzle moves to the left, it can be leveled normally. When the nozzle moves to the right, it is found that the distance between the nozzle and the heated bed are very far or very close. If the spring is adjusted to the extreme position, it still cannot be leveled.
  • Page 47 Question 6 After the machine heats up, the filament is discharged normally. However, when the printing is performed for the first time, the curling occurs on the platform. After printing several layers, the filaments get out of the platform. What can I do 1.
