U10 Pcking List Items Name Picture Qty NO. Items Name Picture Shovel *1 Screw Driver *1 Cutting Nipper *1 M5 Hex W rench*1 M3 Hex W rench*1 Bottom Part ① ⑧ M2.5 Hex W rench*1 M2 Hex W rench*1 M1.5 Hex W rench*1...

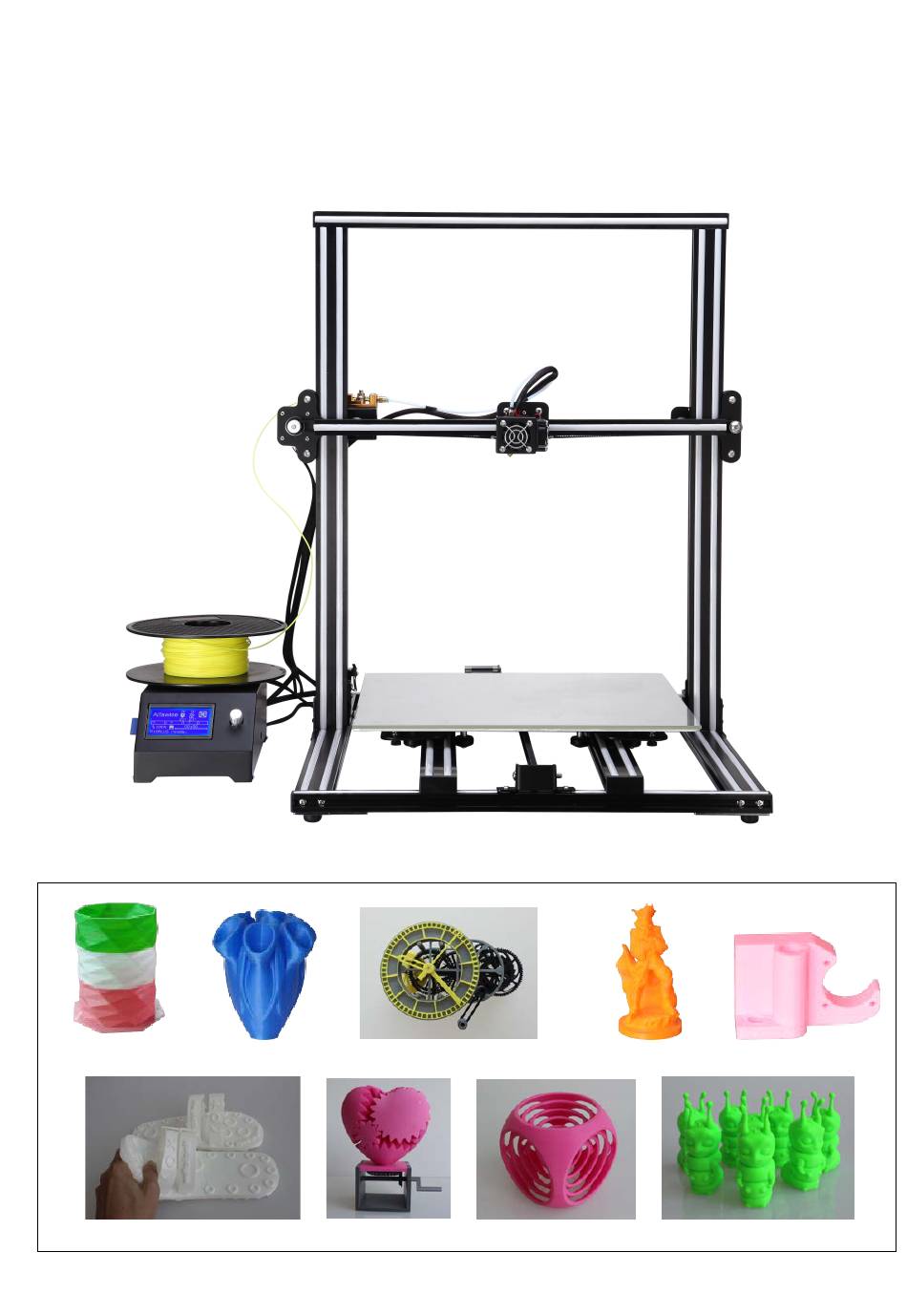

3D Printer Quick Start Guide Foreword Thanks in advance for choosing our 3D Printer! With the Quick Use Guide (here in after as “Guide”), you could enjoy Test and Printing step by step. Meanwhile, you will also learn the structure principle and its special FDM printing technology deeply, and then you will get great progress on not only the theoretical knowledge but also the manipulative ability.
3.Important Notice and Attentions For better using experience, please read the following detail instruction carefully before you use the printer: 3.1 Please ensure that you move to the right tap position for input voltage (110V or 220V) of the power supply (as shown in the picture).
Pay attention to the safety: Please do not reach into the machine's inner space. 5. Installation of U10 This manual will offer your assemble instruction including wire connection, operation instruction, and support resources. Unlike Acrylic kit required to be built piece by piece for over 10 hours to complete, you will find it done to be ready for first print in minutes! 5.1 Step1 Preparation prior to install...
UK. (Fig.01) ③ Check heating bed if it is wobbly. Adjust the tension of heating bed by Allen key and wrench (obtained in tool pack) to fix this if so. Fig.01 5.2 Step2 Install printer Items needed: Bottom Part, Frame Part, 4 pcs of M5*30 Philips cap screw, 8 pcs of T Nut, 4mm Glass Platform, 8 pcs of Button Head Hex Screw and 2 pcs of T-Connector.
Page 9
Insert screws from bottom of “Bottom Part” to reach holes of “Frame Part”. Please refer to Fig.03. Fig.03 Then, put the 4mm glass platform on the top of the heatbed.
And Fig.04 is what is to be end of this step. Fig.04 (Build Frame) 5.3 Step3 Wire connection Items needed: Control box and Build Frame. Make “Control Box” circuits and “Build Frame” (Fig.04) circuits connected well. Please note that there are l a bels of each wire, please refer to Fig.05, and connector at end of each wire.
Page 11
Plug a connector to the other matching connector, please refer to Fig.06. Fig.06 After done this, we get what in Fig.07. Fig.07...
Page 12
Also please refer to Fig.08 when connecting Fig.08 (Overall Details)
Remark: Tension of X and Y axis belt. A proper tension of belt is required ahead of printing. Tension is well adjusted in factory, so generally speaking, it shall be ok. But may loose, check tension check is required. If too loose, need to fix it. Load filament system.
Page 15
Screen Information. ① Select “Control ” → “ Temperature ” → “ Bed ”. Turn the bed temperature to 55°C. Then navigate back to the Info Screen. This will heat the bed to actual printing conditions, making the leveling more accurate. ②...
6.1 Step1 Leveling the X Axis Get a regular rectangle object, to keep a same distance between top surface of Z-Axis Motor Fixed Plate and bottom face of Z-Axis Link Block (Left&Right). If not, turn a side of “Flexible Coupling” to keep two sides same to make it level.
Extruder moves towards hotbed. It should be only allow a piece of A4 paper to pass through. If not, make clockwise (or counterclockwise) rotation of the Wing Nuts beneath hotbed surface. Please refer to Fig.12. ③ Manually move hotbed or slide extruder to other vertexes of hotbed to make four corners of hotbed level evenly.
Page 18
Fig.13 Remark: ① When the printer is fully heated, check to make sure the filament is fully loaded. This also removes all of the previous material left in the printer from other prints. To do this, manually push filament through the heated nozzle until the new color begins coming out of the nozzle.
6.6 Step6 Printing. In this step, clip the edge of hotbed with clips for firmness. Stick some masking tapes on the surface of hotbed if you like. Also be okay to prints directly on the surface of glass. Panel Control, “Print from SD”, wait for the extruder moving and start to print. Remark: You may need to make fine adjustments to the bed level when you start printing.The first layer of the print will show whether the distance between the nozzle and build plate is correct.
Nozzle and heated bed perfect in distance 6.7 Step7 Removing Filament. To remove the filament cleanly, you should do a “soft pull.” This involves heating the nozzle to 100°C, then pulling the filament out of the printer. ① Panel Control, “Prepare” → “Preheat PLA”, and wait until the nozzle temperature reaches 100°C. (You can also select “Control”...
program. We recommend free programs, such as TinkerCAD, OnShape, and Blender. Another is SketchUp, which has free licenses available for schools. These programs take some time to learn, and can be challenging. But they are also rewarding, especially when you see your own creation being printed on your 3D printer! Every CAD program allows users to save or export digital files for 3Dprinting.
Page 23
Step4: ② Open the Cura application. You’ll be given several options. In the Configuration Wizard, choose the RepRap Machine and Mendel in other machine settings (RepRap (Marlin/Sprinter) G-Code Flavor, if it asks).
Page 25
③ Once you add the new machine, click Machine > Machine settings and change the machine settings to: Max width 400, Max depth 400, Max height 500, extruder count 1, and check Heated bed. Click “OK.” ④ Load the model file in Cura. Rotate the file to the best orientation for printing. You may want to scale the file at this point as well.
Page 26
“Layer height” is the most Shell Thickness: Thickness of the important setting to outside shell in the horizontal determine the quality of direction.This is used in Retract the filament when the nozzle your print. Normal quality combination with the nozzle size to is moving over a none-printed area.
Page 27
Retraction: Retract the filament when the nozzle is moving over a none-printed area. Details about the retraction can be configured Speed: Speed at which the in the advanced tab. filament is retracted, a higher retraction speed works better. But a very high retraction speed can lead to filament grinding.
Click on the model, “Rotate” “Scale” “Mirror” 3 buttons appear on left bottom coner. ⑤ When you are satisfied with the Cura settings and the position, orientation, and scale of the model, select File > Save G Code. Save the file to the micro SD card that came with your printer. 7.3 Step3 Send the file to the printer.
Step3: Start to connect Step4: Connecting successfully 7.4 Step4 Print ① On the U10 control screen, select Init./Change SD card, the last selection on the bottom of the main screen. ② Select Print from SD. ③ Select your print (*.gcode) file.
8 Frequently Asked Questions and Solutions Please get the “Common problem” from the SD card for your reference (SD-Card: \Common problem) This section covers the most common printing problems and how to fix them. If this section doesn’t solve your printing problems, then contact our Customer service. We’re here to help you every step of the way to get you 3D printing! 8.1 Step-by-Step Troubleshooting Step 1: Diagnose the problem.
8.3 Mechanical problem: Leveling the build plate Many of the failures in 3D printing are caused by a build plate that is not level or is not the correct distance from the nozzle. See the section “Hotbed Leveling” in this manual. 8.4 Mechanical problem: Filament is not coming out of the Nozzle When filament is not coming out of the nozzle, the nozzle may be clogged.
