Crux SOOGM-19L Manual

INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Retains factory features in select GM LAN V2 (LIN) Bus vehicles while functioning with an aftermarket radio.
- Retains OnStar functionality.
- Retains all chime functions.
- Retains OEM Auxiliary Input.
- Retains Factory Bluetooth in Vehicles 2008-upwards if equipped with the new OnStar device.
- Retains factory Steering Wheel Controls via built-in, preprogrammed interface.
- Retains RAP (Retained Accessory Power).
- Includes factory backup camera connection for the IO3 system. (vehicles with IO4, IO5 & IO6 systems can be hard
wired to retain the OEM camera. See page 3)
PARTS INCLUDED:
SOOGM-19L MODULE

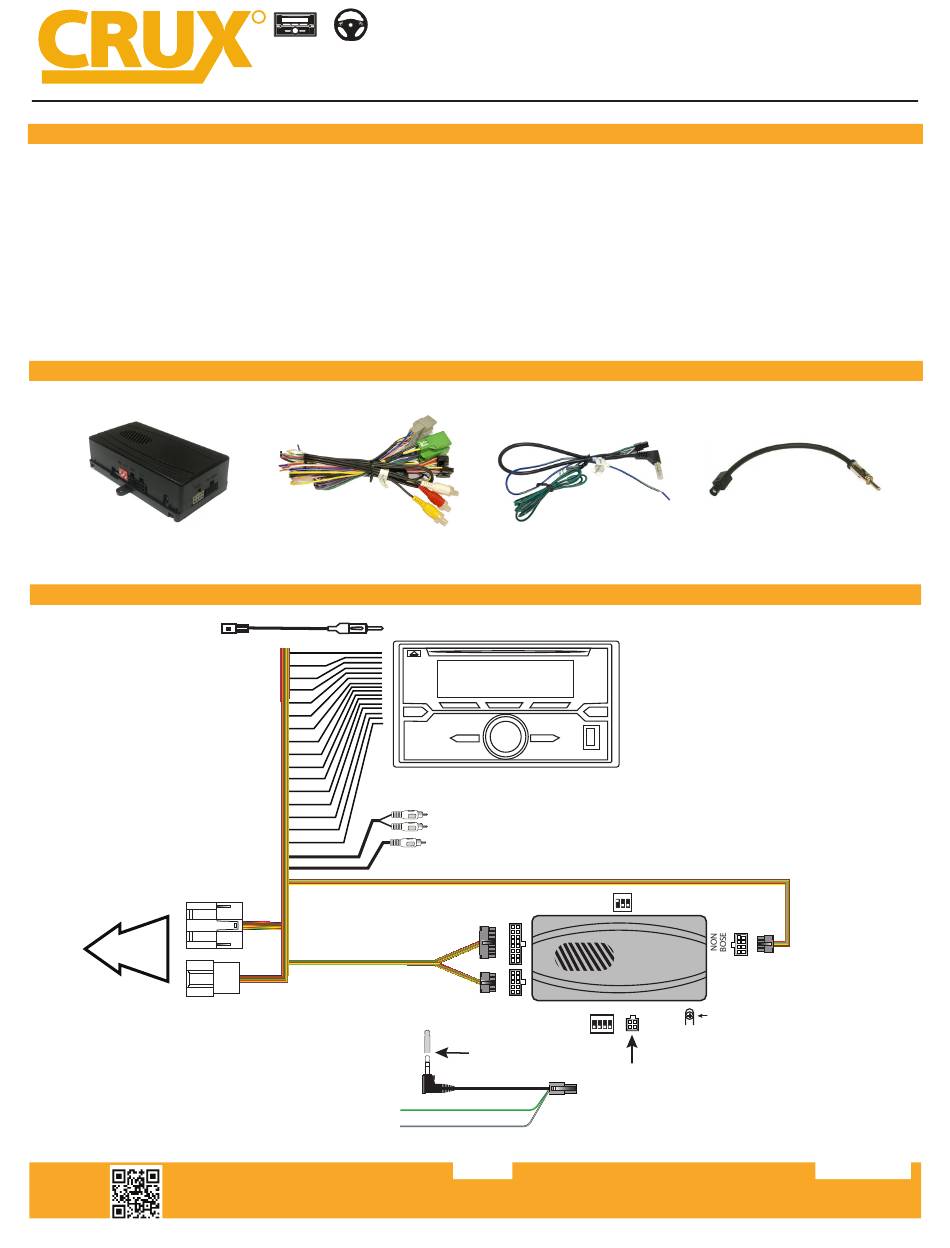

INSTALLATION DIAGRAM:
Antenna Adapter
(Included)
Reverse
Illumina�on (+)
+12V Constant
+12V ACC
Ground
Entertainment Turn On
Parking Brake
Vehicle Speed Sense
Right Front (+)
Right Front (-)
Le� Front (+)
Le� Front (-)
Right Rear (+)
Right Rear (-)
Le� Rear (+)
Le� Rear (-)
16-Pin Green
Connector
TO FACTORY
HARNESS
20-Pin Gray
Connector
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
R
+
RADIO REPLACEMENT
SWC RETENTION
SOOGM-19L HARNESS
Red/White
Orange
Yellow
Red
Black
Blue/White
Yellow/Black
Purple/White
Gray
Gray/Black
White
White/Black
Violet
Violet/Black
Green
Green/Black
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
OnStar Radio Replacement Interface with Steering Wheel
Control Retention for GM LAN v2 (LIN) Bus Vehicles 2014 - 2018
SWC CABLE
AFTERMARKET
RADIO
Audio Input
Rear Camera (IO3)
24-Pin
Connector
10-Pin
Connector
Cap or insulate if
not being used
4-Pin
Connector
LIN BUS (Green/Black)
JVC/Kenwood (Blue / Yellow)
1 of 4
SOOGM-19L
ANTENNA ADAPTER
VR Activation
ON
for OnStar (set DIP#1 to ON)
1 2 3
Connector
SWC DIP SWC Chime Volume
Adjustment
ON
1 2 3 4
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See "DIP SWITCH SETTINGS" section.
8-Pin
rev.110419
