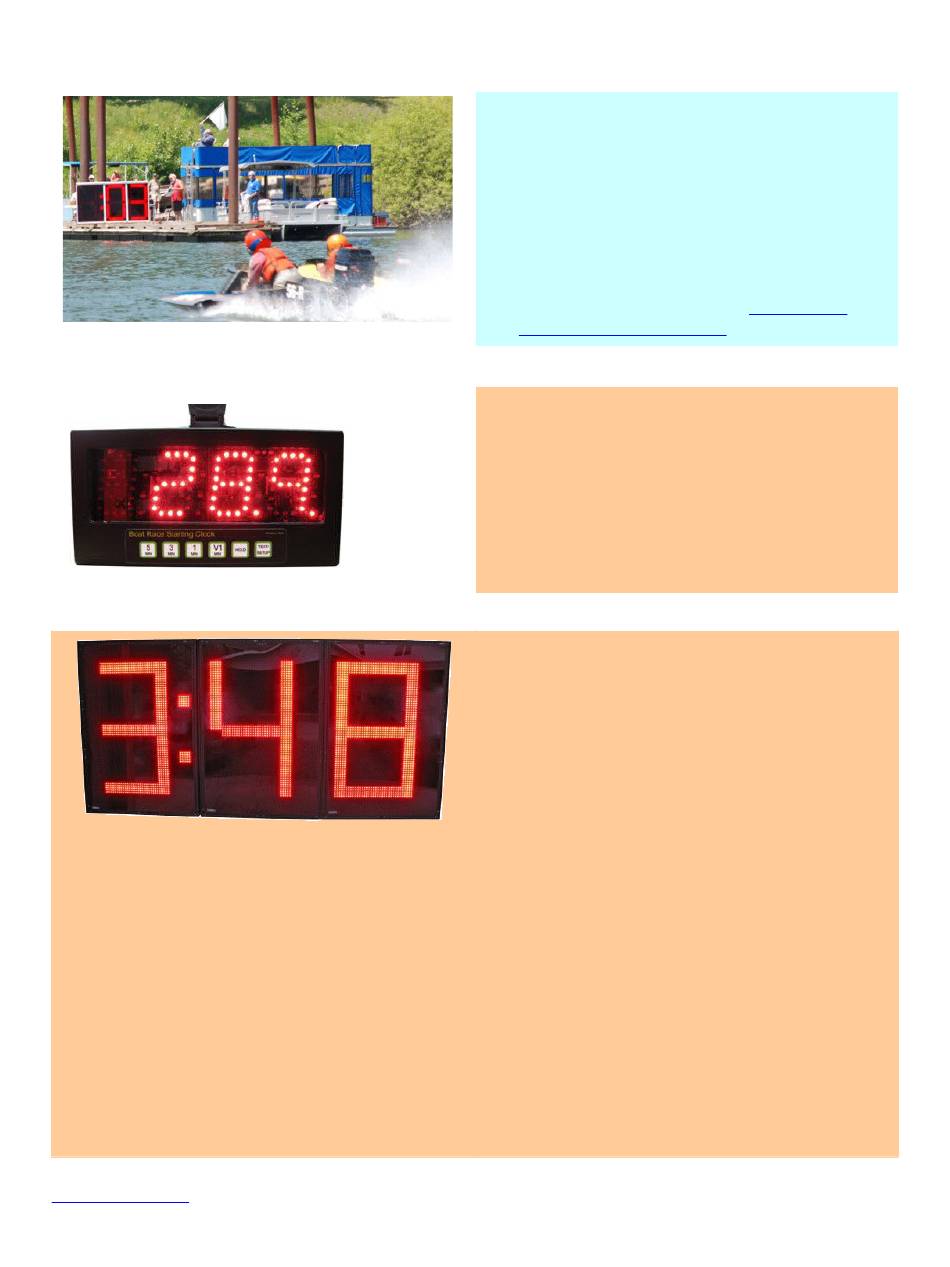

Outboard Racing Starting Clock
Introduction:
Components:
Power Specifications
• Display Input Voltage Range: 12-14.5 Volts DC
• Display Powered by 12 Volt Car Battery
• Display Alternate Power Source: 15 AMP or
Larger Power Supply may be used
• Current consumption:
• All Segments ON: 12 AMP
• All Segments OFF: 1/2 AMP
Cables
• Left Digit to Center Digit: 40" 7-Conductor 14GA
Cable
• Center Digit to Right Digit: 40" 7-Conductor
14GA Cable
• Right Digit to Power Source: 15" 4-Conductor
14GA Cable
• If you have an optional second display, a 10' 4-
www.alzatex.com
Outboard Racing Starting Clock –
Use for Countdown to Begin Boat
Race
• 3-Digit Main Display (DSP3603A) with 36" High
Digits
• Controller (DS204A-BSC) Capable of Count
Down Timing between 5 Minutes and 0
• Unistrut Stand (SUPERSTRUTB-1400-HS)
• Race Clock Cover
• Go online for video tutorials -
timer.com/boat-race-clock/
Controller (DS204A-BSC)
• 4-Digit Display with 2.5" High Digits
• 6 Waterproof Buttons in Water Resistant
Enclosure
• One Connector for Connecting to Right Digit of
Main Display: 30' 4 -Conductor 18GA Cable
Main Display (DSP3603A)
• Overall Display Size 48" High x 96" Wide
• 3-Digit Display showing M:SS (min & sec)
• Digits 36" High x 21" Wide
• Red LED Solid Segment Digits
• Digits Each in Separate Enclosures
• Enclosure Each 48" High x 32" Wide
• Enclosure Covered with 1/8" Thick
Transparent Red Plexiglas (#2423)
• Left Digit
• LED Clusters to Represent Colon
between Min and Sec in Mode 0 & 1
• Chassis Mount Connector x 1 for Power
and Data from Center Digit
• Center Digit
• LED Cluster to Represent Decimal
between Sec and Tenths in Mode 1
• Chassis Mount Connector x 2, 1 for
Power and Data, 1 to Pass Power and
Data to Left Digit
• Right Digit
• Chassis Mount Connector x 4, 3 Supply
Power and Data for all 3 Digits (see
Wiring Diagram for Connection Details), 1
for Camera LED
1
User Manual
