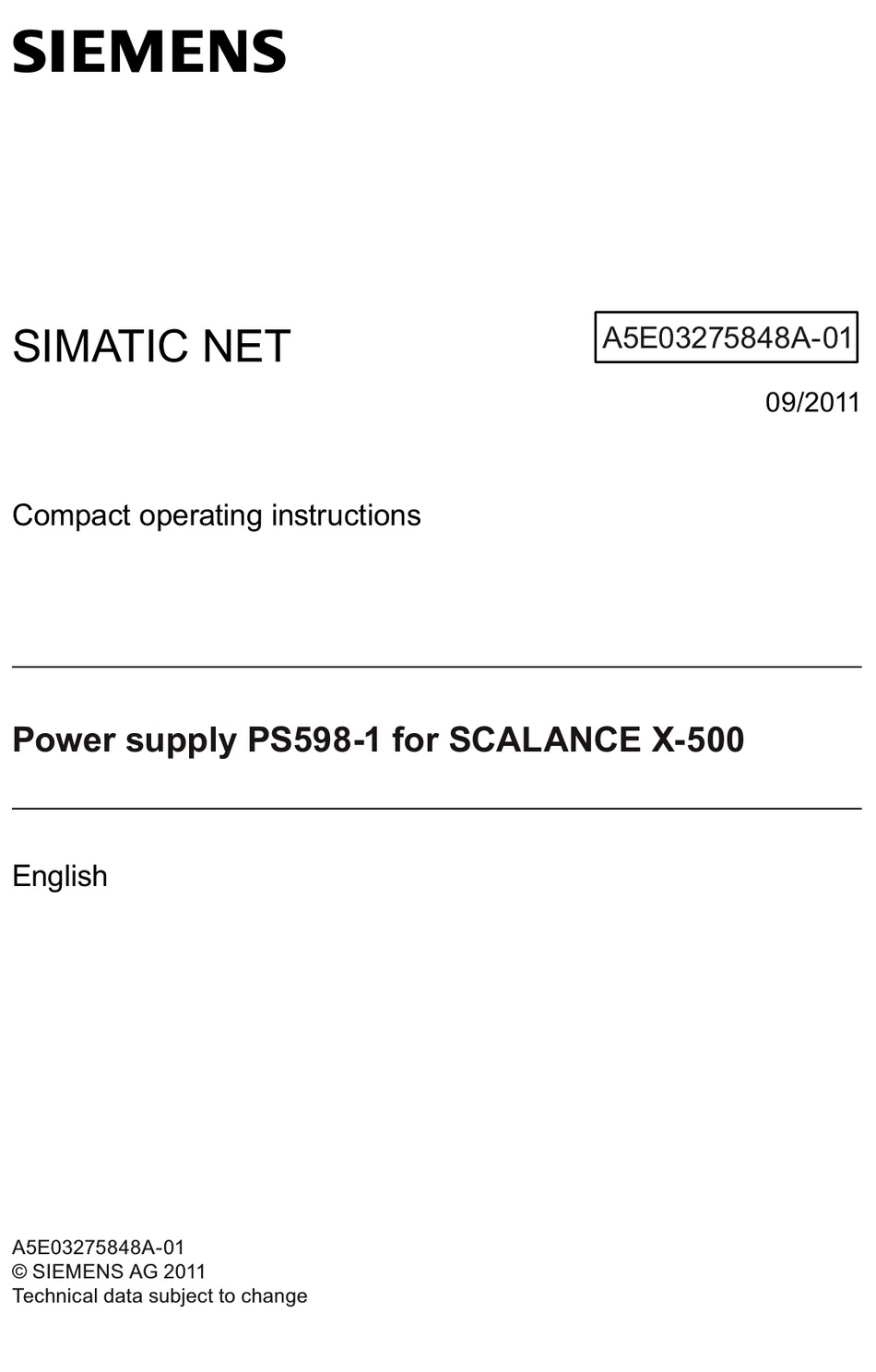

SIMATIC NET
09/2011
Compact operating instructions
Power supply PS598-1 for SCALANCE X-500
English
A5E03275848A-01
© SIEMENS AG 2011
Technical data subject to change

Advertisement

Table of Contents
loading

Summary of Contents for Siemens SIMATIC NET PS598-1

  • Page 1 A5E03275848A-01 SIMATIC NET 09/2011 Compact operating instructions Power supply PS598-1 for SCALANCE X-500 English A5E03275848A-01 © SIEMENS AG 2011 Technical data subject to change...
  • Page 3: Table Of Contents

    Table of contents Introduction ......................6 Safety notes ......................7 Important notes on using the device ..............7 Description ....................... 8 Product characteristics ..................8 Unpacking and checking..................9 Mounting ........................ 10 19" rack mounting of the PS598-1 ...............10 Mounting the PS598-1 on the rear panel of an XR-500M ........12 Connection......................
  • Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 5 If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property damage. © Siemens 2011 A5E03275848A-01, 09/2011...
  • Page 6: Introduction

    Introduction Introduction Purpose of the compact operating instructions Based on the compact operating instructions, you will be able to install and connect up the PS598-1 correctly. Validity of these compact operating instructions These compact operating instructions apply to the product PS598-1 as of product version 1.
  • Page 7: Safety Notes

    Safety notes Safety notes Important notes on using the device Safety notices on the use of the devices The following safety notices must be adhered to when setting up and operating the device and during all work relating to it such as installation, connecting up, replacing devices or opening the device.
  • Page 8: Description

    Description Description Product characteristics Connectors Type Power Input voltage Output voltage PS598-1 300 W 100 to 240 VAC 24 VDC Note Two connectors for the 24 VDC output voltage The PS598-1 has two connectors with the output voltage 24 VDC. Note that you can only use one connector on the front or the connector on the rear of the PS598-1.
  • Page 9: Unpacking And Checking

    WARNING Do not use any parts that show evidence of damage! If the consignment is incomplete or if there is damage to the exterior, contact your supplier or your local Siemens office. Power supply PS598-1 for SCALANCE XR-500M A5E03275848A-01, 09/2011...
  • Page 10: Mounting

    Mounting Mounting 19" rack mounting of the PS598-1 Power supply unit for 19" rack installation The PS598-1 was developed specifically for use with devices of the XR-500M product group. This power supply unit can be mounted directly above or below a SCALANCE XR-500M since the ventilation openings are on the sides of both the basic device and the power supply unit.
  • Page 11 Mounting Procedure Follow the steps below to install the PS598-1 in a 19" rack: 1. Secure the two mounting brackets with four screws each (M3 x 6 supplied with the product) to the side panels of the power supply unit. The maximum tightening torque for these screws is 0.5 Nm.
  • Page 12: Mounting The Ps598-1 On The Rear Panel Of An Xr-500M

    Mounting Mounting the PS598-1 on the rear panel of an XR-500M CAUTION Damage to the device due to inadequate cooling If the ventilation grilles are fully or partly covered or the air filters are contaminated, the temperature inside the housing can rise and exceed the maximum permitted temperature and damage the device.
  • Page 13 Mounting Procedure Power supply PS598-1 for SCALANCE XR-500M A5E03275848A-01, 09/2011...
  • Page 14 Mounting On the rear panel of a SCALANCE XR-500M, there are sockets for the direct connection of a maximum of two PS598-1 power supply units. On the rear of the PS598-1 there is a corresponding plug. Follow the steps below to install the PS598-1 on the rear panel of a SCALANCE XR-500M: 1.
  • Page 15: Connection

    Connection Connection Connecting devices with 100 to 240 VAC power supply Switches for the input voltage ① ③ The socket X1 (position ) and the switch S1 Power (position ) for the input voltage are located on the right-hand side of the front panel of the housing: CAUTION Connect and disconnect the power supply unit only when it is not energized! The PS598-1 is not capable of hot plugging.
  • Page 16 Connection Pin assignment of the X2 socket on the front L M M L Contact Assignment +24 VDC Ground Ground +24 VDC Power supply PS598-1 for SCALANCE XR-500M A5E03275848A-01, 09/2011...
  • Page 17 Connection Pin assignment of the X3 plug on the rear Connector X3 is located on the back of the PS598-1. Connector X3 is intended only to connect the PS598-1 directly to an XR-500M. M M M Contact Assignment +24 VDC Ground Power supply PS598-1 for SCALANCE XR-500M A5E03275848A-01, 09/2011...
  • Page 18 Connection One PS598-1 per device, no redundancy Connect the SCALANCE XR-500M and the PS598-1 with one cable for 24 VDC and a cable for ground. As an alternative, you can also mount the PS598-1 on the back of the SCALANCE XR-500M and secure it with screws. In this case, no extra cables are necessary.
  • Page 19 Connection Three PS598-1 units for two devices - 2-out-of-3 redundancy Connect each SCALANCE XR-500M to its own PS598-1. In addition to this, connect both SCALANCE XR-500M devices to the third PS598-1. Both SCALANCE XR-500M devices can now continue to operate after the failure of one PS598-1. The SCALANCE XR-500M detects the failure of a power source and signals the failure.
  • Page 20: Upkeep And Maintenance

    Upkeep and maintenance Upkeep and maintenance Changing the air filter The PS598-1 has a service panel, behind which there is a removable air filter. The air filter can be replaced during operation. Procedure 1. Open the service panel. 2. Take the air filter out of the device. 3.
  • Page 21: Technical Data

    Technical data Technical data Mechanical and electrical data Device variants The following technical specifications apply to the following device: ● PS598-1 Connectors ● 4-pin terminal block for 2 x 24 VDC on the front of the device. Power ● Plug on the rear of the housing for direct connection to a SCALANCE XR-500M.
  • Page 22 Technical data Electrical data Rated power 300 W Input voltage 100 to 240 VAC / 50/60Hz Output voltage 24 VDC Output current 12.5 A Input current at 300 W 3,6 ... 1.6 A Overcurrent protection of the F6.3 A / 250 VAC power supply Environmental conditions Transportation/storage...
  • Page 23: Dimension Drawings

    Technical data Dimension drawings View from front and above Dimensions are specified in mm. Power supply PS598-1 for SCALANCE XR-500M A5E03275848A-01, 09/2011...
  • Page 24: Approvals

    Approvals Approvals The SIMATIC NET products described in these Operating Instructions have the approvals listed below. Note Issued approvals on the type plate of the device The specified approvals apply only when the corresponding mark is printed on the product. You can check which of the following approvals have been granted for your product by the markings on the type plate.
  • Page 25 The current descriptions of the currently available products can always be found on the Internet under the specified entry IDs/Internet pages: – SIMATIC NET Industrial Ethernet Network manual ID = 27069465 (http://support.automation.siemens.com/WW/view/en/27069465) – EMC Installation Guideline, Planning Guide ID = 28518276 (http://support.automation.siemens.com/WW/view/en/28518276) –...
  • Page 26: Mechanical Stability (In Operation)

    *) Note: When rack mounted with four securing points Trademarks All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
