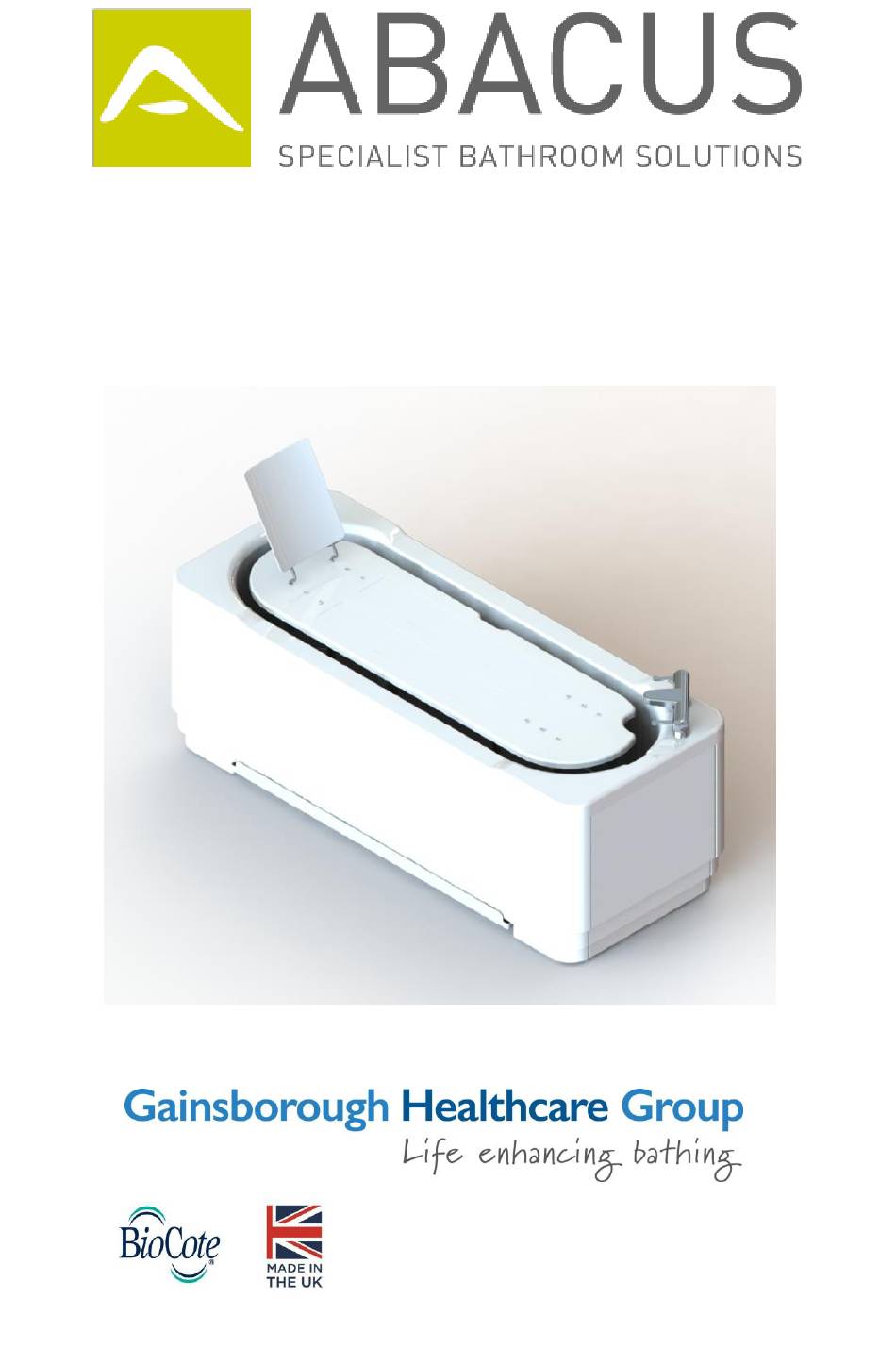

- Page 1 GEMINI 2000 USER MANUAL New image required Tel: 01527 400024 Email: info@abacushealthcare.co.uk www.abacushealthcare.co.uk Gemini 2000 User Manual v1.3...
- Page 2 575 x 525 x 1756 Bath capacity 350L Bath weight (empty) 240kg Platform (W x L) 490 x 1700 Fill time 6 minutes 20 seconds Power supply 24 Volt DC battery/transformer Maximum user weight 165kg Dimensions Figure 1.0 Gemini 2000 User Manual v1.3...
-
Page 3: Warranty
These require regular maintenance for which Abacus engineers are available. • Electrical All electrical components fitted to Abacus baths are CE marked to comply with current European Standards. Electrical items must not be replaced with alternative components without the authorisation of Abacus Healthcare. -
Page 4: Safety Instructions
Clean the bath and fittings using a soft cloth and non abrasive cleaner with anti-bacterial agent. Monthly: Test RCDs. Annually: Servicing by an approved company in accordance with the manufacturer’s instructions Gemini 2000 User Manual v1.3... - Page 5 WARNING: Risk of electric shock; do not allow electrical appliances within 1.5m of the bath. WARNING: Ensure hands and objects are kept away from the underside of the seat and bath when in operation. Gemini 2000 User Manual v1.3...
- Page 6 (fig 3) Fig 3 4. Allow/assist the bather to transfer onto the platform (a bed type transfer for an ambulant bather)(fig 4). A: Ambulant B: Ceiling track hoist Fig 4 C: Mobile/portable hoist D: Wheelchair Gemini 2000 User Manual v1.3...
- Page 7 – figure 5.0 on page 6). 7. Empty the bath using the pop up waste by turning the handle Fig 3 anticlockwise. 8. Prepare the bath ready for the next bather (clean, disinfect etc). Fig 4 Gemini 2000 User Manual v1.3...
-
Page 8: Handset Lock
2. To de-activate the handset, press and hold the ‘Bath Down’ and ‘Platform Down’ buttons simultaneously. The handset will emit one short beep, followed by a longer beep. This sound indicates that the handset is now unlocked, and normal function may continue. Gemini 2000 User Manual v1.3... - Page 9 (Hinge-stay will engage). To close the platform: 2. Lift the platform the fully open position, immediately followed by step 3. 3. Fold out the Hinge-stay to disengage. Slowly lower the platform to the horizontal position. Gemini 2000 User Manual v1.3...
- Page 10 The footrest has three adjustable positions, and can be easily removed when not required. Adjusting the footrest is simple, lift the footrest free of the platform and locate to a preferred position along the platform. Gemini 2000 User Manual v1.3...
- Page 11 Abacus believe in providing wellness with peace of mind so bathing is enjoyable and therapeutic. BioCote is not a coating, it is integrated into GRP during the bath manufacture so cannot be wiped or worn away.
- Page 12 Press again to change colour, repeat until desired colour is selected. At any point hold down for 2 seconds to change to the auto rotating spectrum cycle. The button is perfectly safe to use with wet hands. Gemini 2000 User Manual v1.3...
-
Page 13: Autofill Option
LED lights will go out, confirming water lock out. To Unlock Press and hold down both buttons again for 10 seconds. The buttons will turn red and blue confirming unlock. For optimum performance it is recommended that the bath is cleaned regularly. Gemini 2000 User Manual v1.3... -
Page 14: Bath Operation
WARNING In the event of mains failure during use of the bath, back-up batteries will enable the bather to exit the bath. Do not carry on using until mains power is restored. Gemini 2000 User Manual v1.3... -
Page 15: Troubleshooting
Mains power has failed to the unit – See section titled ‘Bath does not move’ Bath Panels touching /noisy If the upper and lower panels touch, marking will occur. Adjust panels as necessary to correctly align. Gemini 2000 User Manual v1.3... -
Page 16: Cleaning Information
Any consequence arising from unskilled or incorrect handling of the product is not covered by this guarantee. The following items, when supplied by Abacus Healthcare are guaranteed for a period of twelve months from the date of supply for the parts only (labour costs are not covered). - Page 17 GAINSBOROUGH HEALTHCARE GROUP. OPERATES A POLICY OF CONTINUOUS PRODUCT DEVELOPMENT AND RESERVES THE RIGHT TO CHANGE SPECIFICATIONS AND DESIGNS WITHOUT PRIOR NOTICE SO LONG AS THEY DO NOT MATERIALLY ALTER THE FUNCTION OF THE BATH. Gemini 2000 User Manual v1.3...
