BLUM MOVENTO 763 Installation Instructions

MOVENTO 763/769
Lateral Stabilizer Installation Instructions
Installation

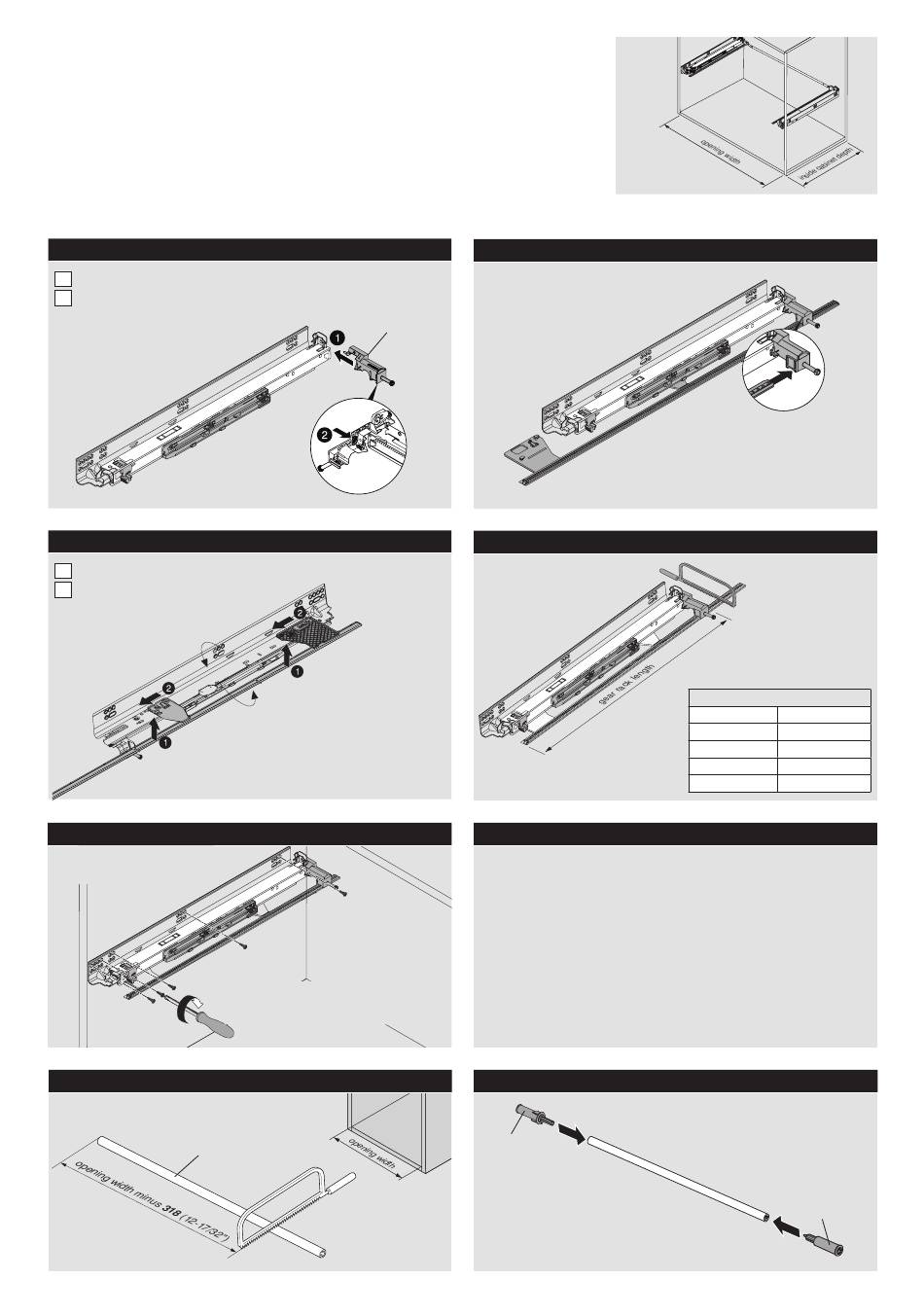

Step 1 – Attach left and right pinion housings
1 Insert locating pins into MOVENTO runner
2 Press orange locking clips to lock into place
Step 3 – Install gear racks
1 Insert locating tabs into cut-outs on bottom of runners
2 Slide backward to lock into place
click
Step 5 – Install runners
Minimum inside cabinet depth =
setback + runner length + 18 (23/32")
Step 6 – Cut linkage rod to length
linkage rod
Subject to technical modifications without notice. © 2016 Blum, Inc.
pinion housing
click
click
The rear bracket moves to
accommodate up to 610 (24")
length MOVENTO runners
NOTE: Recommended for opening widths
610 (24") to 1369 (53-29/32") wide
Step 2 – Slide gear racks into pinion housings
Step 4 – Cut gear racks to length
NOTE:
For use in panel and blocked-out face frame applications with
305 (12") to 610 (24") length drawers or face frame applications with
rear attachment and 305 (12") to 533 (21") length drawers.
However, for best results use in panel or blocked-out face frame
applications.
MOVENTO runners will sit 3 (1/8") higher when using the lateral
stabilizer in bottom mount applications, and may have to be raised for
some bottom mount drawer applications using SERVO-DRIVE.
Step 7 – Press pinion adapters into linkage rod
pinion adapter
Gear rack length
763x3050x 331 (13-1/32")
763x3810x 407 (16-1/32")
76xx4570x 483 (19-1/32")
76xx5330x 560 (22-1/16")
769x6100x 637 (25-3/32")
pinion adapter
