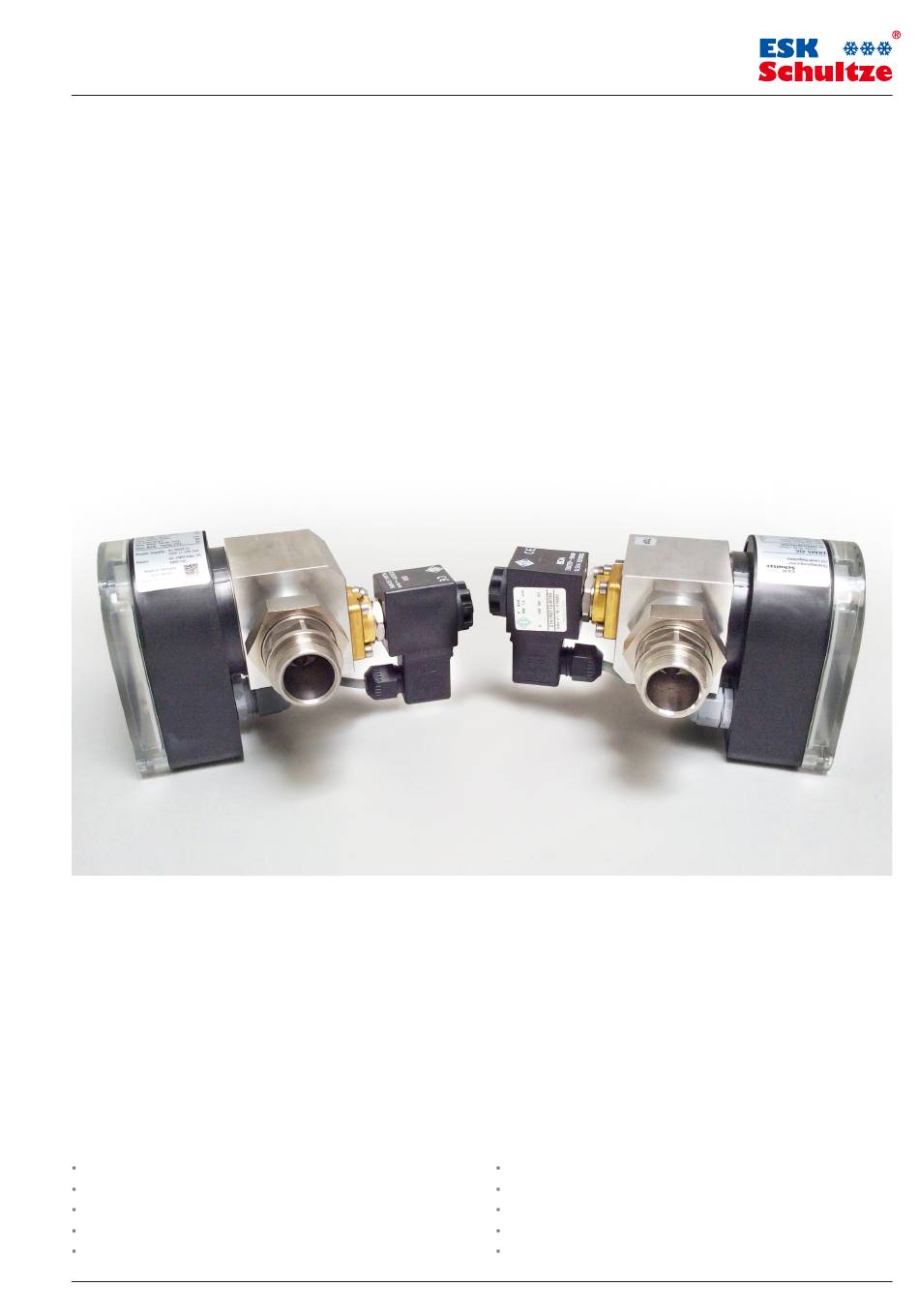

Umbauanleitung

How to modify the device

Elektronische Ölspiegel-
regulatoren ERM 5 / ERM 6
für die rechtsseitige Montage
Alle Komponenten und deren Zubehör sind für die
Handhabung, Installation und Gebrauch durch fach-
und sachkundige Anlagenbauer, Installateure und
Betreiber vorgesehen. Diese müssen über grundle-
gende Kenntnisse der Kältetechnik, der Kältemittel
und der Kältemaschinenöle verfügen.
Zweck der Umbauanleitung
Diese Umbauanleitung zeigt, wie das Elektronikgehäuse vom
ERM5..
ERM6..
und vom
in gespiegelter Position montiert werden
kann.
Der Umbau wird erforderlich, wenn die LED-Anzeige aufgrund der
baulichen Situation nicht einsehbar ist oder das Elektronik gehäuse
mit div. Bauteilen kollidiert.
Die „gespiegelten" Ölspiegelregulatoren sind auch ab Werk erhält-
-B
lich. Diese haben ein „
" am Ende der Artikelbezeichnung, zum
ERM6-OC-B
ERM6-0-BC-B
Beispiel:
,
Notwendiges Werkzeug für den Umbau:
Kreuzschraubendreher
Sechskantschlüssel 4 mm
Sechskantschlüssel 2,5 mm
Cuttermesser
Maulschlüssel 19 mm
www.esk-schultze.de
ERM6-CDH-OC-B
,
etc.
Electronic Oil Level
Regulators ERM 5 / ERM 6
for right-hand mounting
All components and their accessories are intended
for handling, installation and use by expert and
knowledgeable plant engineers, installers and
operators. They must have basic knowledge of
refrigeration, refrigerants and refrigeration oils.
The aim of this guide
These conversion instructions show how the electronics housing of
ERM5..
ERM6..
the
and the
can be mounted in mirrored position.
The conversion is necessary if the LED display is not visible due to
the structural situation or if the electronics housing collides with
various components.
The „turned" oil level regulators are also available ex works.
-B
These have a „
" at the end of the article designation, for example:
ERM6-OC-B
ERM6-0-BC-B
,
,

Necessary tools for the conversion:

Phillips screwdriver
Allen key 4 mm
Allen key 2.5 mm
Utility knife
Open-end wrench 19 mm
MADE IN GERMANY
ERM6-CDH-OC-B
etc.
1/4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERM5 and is the answer not in the manual?

Questions and answers

Summary of Contents for ESK Schultze ERM5

  • Page 1 Kältemaschinenöle verfügen. Zweck der Umbauanleitung The aim of this guide Diese Umbauanleitung zeigt, wie das Elektronikgehäuse vom These conversion instructions show how the electronics housing of ERM5.. ERM6.. ERM5.. ERM6.. und vom in gespiegelter Position montiert werden and the can be mounted in mirrored position.
  • Page 2 ERM 5 / ERM 6 Elektron. Ölspiegelregulatoren Electronic Oil Level Regulators www.esk-schultze.de Umbauanleitung How to proceed Achtung: Das Gerät muss spannungsfrei sein! Attention: the device must be voltage-free! 1. Deckel lösen (4 x Kreuzschraube) 2. Elektronikgehäuse vom Grundkörper lösen (3 x Sechskantschlüssel 2,5 mm) 1.
  • Page 3 ESK-Katalog / ESK Catalogue 8. Kunststoffmutter und U-Scheibe 8. Screw the plastic nut and the washer Typ ERM5 an das Magnetventil schrauben to the solenoid valve Montage- und Betriebsanleitung / Installation and operating instructions 9. Elektronikgehäuse an den 9.
  • Page 4 ERM 5 / ERM 6 Elektron. Ölspiegelregulatoren Electronic Oil Level Regulators www.esk-schultze.de ESK Schultze GmbH & Co. KG Parkallee 8 D-16727 Velten (0) 3304 3903 0 + 49 (0) 3304 3903 34 + 49 info@esk-schultze.de www.esk-schultze.de...
