Model D2260A
Mini Mobile Base
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Introduction
Your new Model D2260A Mini Mobile Base (Figure 1) is
designed to give you a stable and mobile platform upon
which to mount machinery and equipment with a variety
of base dimensions and weights.
Specifications
•
Minimum Inside Dimensions .............. 10
•
Maximum Inside Dimensions ............. 21
•
Maximum Weight Capacity ....................... 600 lbs
Tools
Tape Measure ....................................................1
Wrenches or Sockets 13mm ...................................2
Wrenches or Sockets 14mm ...................................2
Light Machine Oil (Optional) ...................... As Needed
Crowbar (Optional) .............................................1
Rubber Mallet (Optional) ......................................1
6" 2x4's (Optional) ..............................................2
6" 2x6 (Optional) ................................................1
12" 4x4 (Optional) ..............................................1
Inventory
(Figure 2)
A. Swivel Casters ..............................................2
B. Fixed Casters ...............................................2
C. Left Corner Bracket .......................................1
D. Right Corner Bracket ......................................1
E. Right Corner Bracket w/Foot Post ......................1
F. Left Corner Bracket w/Foot Post .......................1
G. Side Rails 15
⁄
" Long .....................................2
1
8
H. Side Rails 10
⁄
" Long ....................................2
5
8
I.
Knobs M12-1.75 ............................................2
J.
Feet ..........................................................2
K. Hardware Bag (not shown)
— Hex Bolts M8-1.25 x 16 (Brackets, Casters) ....... 32
— Lock Nuts M8-1.25 (Brackets) ....................... 16
— Lock Washers 8mm (Casters) ........................ 16
— Flat Washers 8mm (Casters) ......................... 16
— Hex Nuts M8-1.25 (Casters) .......................... 16
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#11850BL
COPYRIGHT © MAY, 2009 BY WOODSTOCK INTERNATIONAL, INC.
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
⁄
" x 14
⁄
"
1
1
2
2
⁄
" x 17
⁄
"
1
1
2
2
C
B
Qty
Do not use the Model D2260A until
you have read and understood this
instruction sheet and completed the
entire assembly procedure. Serious
personal injury may occur if you ignore
this warning.

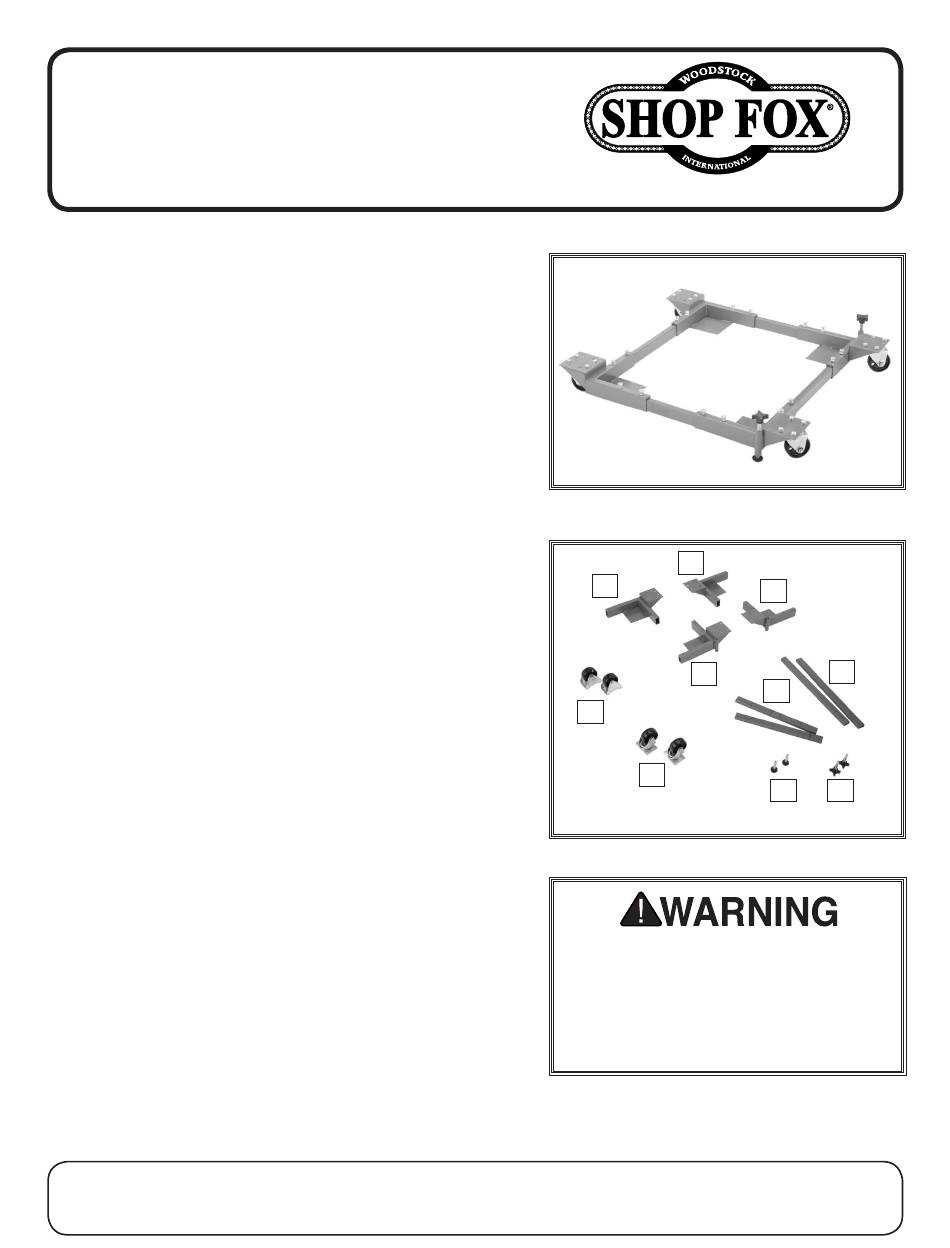

Figure 1. Model D2260A.
D
E
F
H
A
J
Figure 2. Inventory.
Printed in China
G
I
Advertisement
Related Manuals for Shop fox D2260A
Summary of Contents for Shop fox D2260A
- Page 1 Mini Mobile Base Instruction Sheet Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz Introduction Your new Model D2260A Mini Mobile Base (Figure 1) is designed to give you a stable and mobile platform upon which to mount machinery and equipment with a variety of base dimensions and weights.
- Page 2 D2260A Mini Mobile Base Instructions Preparation The machine base must sit on the four corner brackets of the mobile base shown in Figure 3. To prepare the mobile base for assembly, do these steps: 1. If you haven't already done so, make sure the weight and footprint size of your machine are within the specifications of the mobile base shown in Specifications on Page 1. Corner Pad Note: Anything extending outward within a 2"...
-
Page 3: Assembling Base
D2260A Mini Mobile Base Instructions 3. Determine how you will get the machine on the mobile base. Lift heavy equipment carefully and with — If the machine can be lifted, follow the the proper equipment. Get assistance is instructions in Assembling Base, and Mounting if needed to reduce the risk of serious Machine onto Mobile Base on Page 11. - Page 4 Note: Before continuing with the next step, you Fixed Corner Long Rail will have to remove one of the rails on the Model D2260A and replace it with the rail in the Model Figure 9. Side rails inserted into corner D2259A kit with the rectangular mounting bracket brackets (casters removed for clarity).
- Page 5 D2260A Mini Mobile Base Instructions 8. Secure each corner bracket to two rails with (4) M8-1.25 x 16 hex bolts, and 8mm lock nuts, as shown in Figure 11. Tip: Thread the hex bolts into the rails but do not tighten the lock nuts against the rails until instructed later. Each side rail-to-corner bracket connection must have a minimum of two hex bolts installed, making a total of four bolts at each corner, as shown in Figure 11.
- Page 6 D2260A Mini Mobile Base Instructions Assembling Base Around Machine 1. Thread each knob several turns into the foot posts, Corner Brackets as shown in Figure 12 in Assembling Base on Page 5. w/Knob 2. Insert a foot into the bottom of each foot post (see Figure 12 on Page 5). The knob should pick up the magnetic shaft of the foot when it gets close.
- Page 7 D2260A Mini Mobile Base Instructions 6. Slide the other pair of rails that are of identical size into the ends of the corner brackets from Step 5, then fasten with (4) M8-1.25 x 16 hex bolts, and 8mm lock nuts, as shown in Figure 15. Tip: Thread the hex bolts into the rails but do not tighten the lock nuts against the rails until instructed. Figure 15. Rails fastened to brackets. (Machine removed from assembly for clarity.) 7. While an assistant lifts one side of the machine up, slide the front rail-bracket assembly from Step 6 under the machine, as shown in Figure 16.
- Page 8 D2260A Mini Mobile Base Instructions 9. With the help of an assistant, lift the rear side of the machine up, then place a 4x4 block under the machine. 10. Slide each of the corner brackets into the remaining rail and slide the assembly over the block and up against the machine, as shown in Figure 19. Note: This rail is the same size as the one you installed on the front of the machine between the corner brackets with the foot posts.
- Page 9 D2260A Mini Mobile Base Instructions 17. While an assistant lifts up on the back of the Front Rail-Corner Rear Fixed machine, slide the rear fixed caster assembly Bracket Assembly Caster Assembly onto the side rails of the front rail-corner bracket assembly so the rear assembly is close to the machine base, and the corner pads slide under the Side Rail machine, as shown in Figure 22. — If the rear assembly is too narrow or too wide to fit onto the side rails, loosen the hex bolts that secure the corner brackets to the rear rail, adjust the width of the rear fixed caster assembly so it slides into the side rails, then retighten the hex bolts.
- Page 10 Needed Materials for Base Plate • Plywood ⁄ " x 21 ⁄ " x 17" (Max. for D2260A) ..2 • Wood Glue ........As Needed • Wood Screws #6 x 1 ⁄ " ......... 24 •...
- Page 11 D2260A Mini Mobile Base Instructions Mounting Machine onto Mobile Base 1. Check to make sure all fasteners are tightened on the mobile base. Lift heavy equipment carefully and with the proper equipment. Get assistance 2. Check to make sure the machine will clear the side if needed to reduce the risk of serious rails all the way around the machine base.
- Page 12 D2260A Mini Mobile Base Instructions 4. Push the machine from the lowest possible point to avoid tipping it over and move it to its new location. Before moving the machine and mobile Tip: The best control is usually achieved by pushing base, check to make sure the pathway is on the side with the swivel casters.
