Summary of Contents for Metal Samples MS2600E

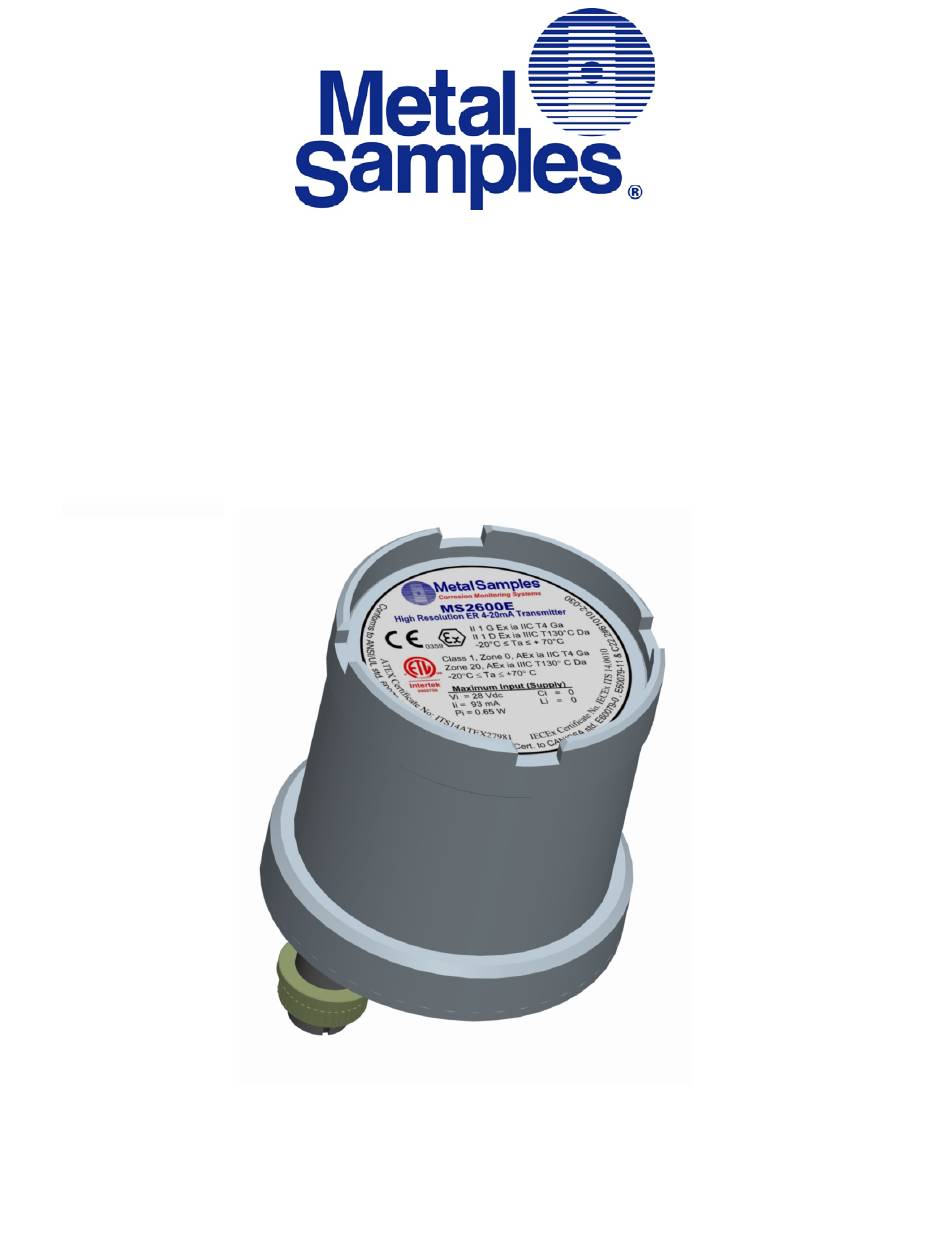

- Page 1 Metal Samples Company A Division of Alabama Specialty Products, Inc. 152 Metal Samples Rd., Munford, AL 36268 Phone: (256) 358-4202 Fax: (256) 358-4515 E-mail: msc@alspi.com Internet: www.metalsamples.com...
-
Page 3: Table Of Contents
Table of Contents I. Introduction .............................. 1 A. General Description ........................ 1 B. Principles of Operation ...................... 1 C. Technical Specifications ...................... 3 II. Installation and Operation ........................ 4 A. Receiving the MS2600E Transmitter .................. 4 B. Installation .......................... 4 1. Physical Mounting and Probe Connection .............. 4 a. Direct‐Probe Mounting .................. 4 b. Remote Mounting .................... 5 2. Current Loop Connection ..................... 5 a. Making Connections .................. 5 b. Grounding ...................... 6 c. Wiring for a Safe Area Installation .............. 7 d. Wiring for a Hazardous Area Installation ............ 7 3. Setup and Operation ....................... 9 a. Probe Selection Switches ................ 9 ... -
Page 5: Introduction
I. Introduction A. General Description The MS2600E is a high‐resolution meter designed to transmit corrosion (metal loss) data from an Electrical Resistance (ER) probe to a plant control system or other recording device. The MS2600E utilizes traditional 4‐20mA current loop communication and is loop‐powered, so it requires only a two‐ wire interface. This results in a simple and low‐cost installation. The use of the 4‐20mA protocol also allows the MS2600E to be placed great distances from the control system or recorder while maintaining good noise rejection. Practical current loop distances can be many thousands of feet (see pages 6 and 7 for exact specifications.) The MS2600E is compatible with all types of Metal Samples ER probes, as well as any standard ER probe from other manufacturers. Unlike competitors’ products, the MS2600E Transmitter does not require factory modification to accommodate different probe types. The probe type can be easily changed at any time using the on‐board probe selection switches (see page 9.) The MS2600E is available as direct‐mount (standard) or remote‐mount. In the direct‐mount version the MS2600E is mounted directly to the ER probe. This option offers the simplest installation and minimizes noise problems. The remote‐mount option allows the MS2600E to be mounted independently from (but in close proximity to) the ER probe. It is then connected to the probe via a short probe cable. (See page 5 for mounting diagrams and specifications.) B. Principles of Operation The MS2600E operates on the Electrical Resistance (ER) technique and is used in conjunction with an ER probe. The ER probe utilizes a resistive sensing element manufactured from the material of interest (or a close approximation) which is exposed to a corroding environment. This is called the Exposed or Corroding Element. The resistance of the Exposed Element is directly related to its thickness, so as the element corrodes the resulting loss of metal causes a proportional increase in the element’s resistance. The probe also contains an internal Reference Element which is used to compensate for the influences of temperature on the Exposed Element. The MS2600E is designed to work with any standard ER probe, but it is recommended that Cylindrical and Large Flush type probes be used to ensure optimum performance. Their physical design places the Reference Element in closer proximity to the Exposed Element compared to other probe types, providing more effective temperature compensation and thus reducing the effects of thermal noise. Because they are designed to corrode, ER probes are sacrificial in nature. Each ER probe will have a finite life that is based on the element thickness. ER probes are available in a number of geometries and thicknesses designed to suit a wide variety of applications. Table 1 lists the common ER element options available from Metal Samples and the effective life of each. 1 ... - Page 6 Table 1. Standard ER Probe Elements The MS2600E measures an ER probe utilizing a high‐resolution, 16‐bit measurement. This allows the MS2600E to detect much smaller amounts of metal loss, thus responding faster to corrosion events and upsets (compared to traditional ER meters.) At 16‐bit resolution the MS2600E can measure metal loss amounts as small as 0.0015% of the probe life. Metal loss readings taken by the MS2600E are converted to a linearized 4‐20mA current loop output. The 4‐20mA signal can be fed into a plant control system or other devices and scaled ...
-
Page 7: Technical Specifications
C. Technical Specifications Model MS2600E ‐ High Resolution ER 4‐20mA Transmitter Physical Data Instrument W eight: 3.70 lb. (1.68 Kg) 6.0”H Total Weight w/ Accessories: 5.76 lb. (2.61 Kg) (15.25cm) 4.0” Dia Instrument D imensions: 6.0"H x 4.0"Dia (10.16cm) (15.25cm H x 10.16cm Dia) 32° to 158°F (0° to 70°C) Operating T emperature: -40° to 176°F (‐40° to 80°C) Storage T emperature: Figure 1. MS2600E Dimensions Enclosure Material: 316 Stainless Steel Mounting S pecifications: Direct probe mount (standard) May be pole mounted using optional hardware (Up to a 2.5” (6.35cm) Dia. pole) Performance Data Measurement T ype: ER measurement using any standard ER probe type ... -
Page 8: Installation And Operation
II. Installation and Operation A. Receiving the MS2600E Transmitter Check the MS2600E Transmitter for any shipping damage when it is first received. When the MS2600E is unpacked, verify that the following items are included: MS2600E Transmitter Current Loop Wiring Harness Meter Prover User’s Manual Probe Cable (optional, for remote‐mount only) Mounting Hardware (optional, for remote‐mount only) In the event of shipping damage, quantity shortage, or missing items, it is recommended that the event is documented immediately and that digital photographs are taken. Any shortages or missing items should be reported to Metal Samples immediately. In the event of shipping damage, a claim should be opened with the responsible carrier. B. Installation Using this product in any way other than that specified within this manual may impair the CAUTION: intrinsic safety protection. Installation of the MS2600E Transmitter involves the following steps: 1. Physical Mounting 2. Electrical Connection 3. Setup and Programming ... -
Page 9: Remote Mounting
To mount the MS2600E: 1. Align the keyways of the transmitter and probe connectors. 2. Insert the transmitter connector plug fully into the probe connector receptacle. 3. Secure the transmitter to the top of the probe by tightening the coupling nut. NOTE: Hand‐tight is sufficient. Do not over‐tighten the coupling nut. NOTE: Never force the connectors to mate. If there is resistance, stop and check for bent pins on the probe and for foreign material in the female sockets of the transmitter connector. Gently straighten any bent pins and clear any foreign material that may be found. Align Key Insert Connector Tighten Coupling Nut 1 Figure 2. MS2600E Direct Mount Installation b. Remote Mounting When it is not practical to direct‐probe mount the MS2600E, the unit can be remote mounted instead. In this case the instrument is mounted to a separate mounting pole using the optional Remote Mounting Hardware Kit. The MS2600E is then connected to the ER probe via the optional probe extension cable. When possible, the MS2600E should be mounted within 10’ (3m) of the probe to keep the probe cabling short and minimize signal degradation. 2. Current Loop Connection a. Making Connections The MS2600E current loop connection is made via the external 6‐pin circular connector as shown below. This hermetically sealed connector prevents moisture ingress, and eliminates the need for internal wiring by an operator which reduces the risk of damage to the circuit. 5 ... -
Page 10: Grounding
Current Loop Connector Figure 3. MS2600E Current Loop Connector To facilitate wiring, a thirty‐three foot (10 meter) Current Loop Wiring Harness is provided. This wiring harness connects directly to the 6‐pin connector, and extends to a nearby junction box (not included) to make the necessary wiring connections to the current loop wiring from the control (DCS/SCADA) system. The wiring harness can be cut to length if required. MS2600E Wiring Harness Junction Box (Not Included) Figure 4. MS2600E Wiring Harness NOTE: Do not connect cable shielding to the Transmitter. The shield must remain floating at the Transmitter. The maximum permissible length of the current loop wiring between the MS2600E Transmitter and the control system is determined by the control system supply voltage, the electrical resistance of the current loop cable and the load of the control system input. If the Transmitter is to be installed in a safe area, refer to section c. Wiring for a Safe Area Installation for details. If the Transmitter is to be installed in a hazardous area, refer to section d. Wiring for a Hazardous Area Installation. b. Grounding The MS2600E enclosure is grounded internally through the wiring harness, but an additional, external grounding terminal is provided as well. The enclosure should be grounded properly using the external grounding terminal to ensure safe operation. 6 ... -
Page 11: Wiring For A Safe Area Installation
Where: D = Max. cable length in feet. = Power supply voltage. S R = Cable resistance in ohms per 1000 feet. Example: VS = 24 Volts R = 16.1 (22 AWG cable) 21,739 4 ∗ 10 16.1 d. Wiring for a Hazardous Area Installation This section provides general guidelines for hazardous area wiring. However, regardless of CAUTION: anything stated here, the MS2600E must be installed in full compliance with the control drawing located on page 18 and all of the local area requirements. When used in Hazardous areas, equipment must be supplied with a pre‐approved power CAUTION: supply unit or approved equipment via a certified intrinsically safe barrier or a galvanically isolated barrier) with the following maximum input parameters. Ui = 28 V, Ii = 93 mA and Pi = 0.65 W Whenever an electrically driven sensor or measuring device is used in a potentially explosive environment the measuring system must be installed in such a way that electrical energy is either effectively isolated from the explosive environment (via explosive‐proof containers, cable conduits, etc.) or the amount of electrical energy produced in the hazardous area must be limited to an intrinsically safe level. ... - Page 12 Caution: When a safety barrier is used with the MS2600E system, the current loop cable must be connected to the barrier’s hazardous area terminals. All other connections must be made to the barrier’s safe area terminals. The type of repeater safety barrier employed in the MS2600E system depends on the specific classification of the hazardous environment in question. Metal Samples will provide, upon request, assistance and technical advice in the selection of a repeater safety barrier or its equivalent. For most installations, Metal Samples recommends the intrinsically safe MTL 5441 Repeater Power Supply. The maximum length of the current loop cable that connects the MS2600E Transmitter to the repeater safety barrier is as follows: Example: 17.5 Volts 22 AWG Cable = 5,434 feet maximum 16 AWG Cable = 21,788 feet maximum For hazardous area installations, the maximum inductance and capacitance of the loop CAUTION: wiring between the safety barrier and the transmitter cannot exceed the entity parameters of the selected barrier. 8 ...
-
Page 13: Setup And Operation
3. Setup and Operation a. Probe Selection Switches Housed within the MS2600E enclosure are probe selection switches which allow the instrument to be set for any standard ER probe type. They also allow the instrument to be placed into several test modes which output fixed values, allowing verification of the current loop connection and DCS program. Probe Selection Switch Probe Cable Connector (See detail below) 4‐20mA Current Loop Connector Figure 5. Connector and Switch Details Switch Switch Switch Switch Setting Wire Loop Off (↓) On (↑) On (↑) Off (↓) Operating Tube Loop/Flush On (↑) Off (↓) On (↑) Off (↓) -
Page 14: Testing The Current Loop
1) 4mA Output – Forces a constant 4mA output on the current loop. 2) 20mA Output – Forces a constant 20mA output on the current loop. 3) 4‐20mA Sweep – Causes the output to continually cycle from 4mA up to 20mA. These test modes can be useful when troubleshooting problems with the current loop wiring and DCS/SCADA system. iii. Testing the MS2600E with the Meter Prover A Meter Prover is provided to allow routine checks of the MS2600E. The Meter Prover simulates a Wire Loop type probe at a fixed value. To test the MS2600E with the Meter Prover: 1) Disconnect power. 2) Disconnect the MS2600E from the probe (or if the MS2600E is remote‐mounted, disconnect the probe extension cable from the probe.) 3) Connect the Meter Prover to the MS2600E probe connector stem (or to the probe extension cable if the MS2600E is remote‐mounted.) 4) Loosen the MS2600E Enclosure Lock Screw. 5) Unthread and remove the MS2600E cover. 6) Change the Probe Selection Switches to the Wire Loop position (see page 9.) 7) Reconnect power and allow the instrument to measure for several minutes to stabilize. 8) After several minutes observe the transmitter output. The output should closely match the value printed on the Meter Prover label. If the transmitter output matches the Meter Prover value, you may return the Probe Selection Switches to their previous setting and reconnect the MS2600E to the probe. If the transmitter output shows a significant difference compared to the Meter Prover value, further troubleshooting may be required. Refer to page 14 for troubleshooting or contact the factory for further assistance. ... -
Page 15: Interpreting Data
i. Metal Loss The MS2600E measures the Metal Loss of an ER probe and converts that value to a linearized 4‐20mA current loop output. The 4‐20mA output is directly proportional to the cumulative Metal Loss of the ER probe at any given time. The overall span of the 4‐20mA output is proportional to the life of the probe in use, so for DCS/SCADA programming the 4‐20mA signal can be scaled as follows: 4mA = 0 mils (0% Metal Loss) 20mA = Probe Life in mils (100% Metal Loss) The Probe Life can be found in Table 1 and is also listed on the Metal Samples probe tag (as the “Multiplier”.) Figure 6. Metal Samples Probe Tag Figure 7 illustrates the relationship between Loop Current and Metal Loss. In this example a probe with a 10‐mil life is assumed. However, the X axis could be changed to represent any Probe Life. Figure 7. Output Relationship As seen here, the transmitter output begins at 4mA for a new probe (zero Metal Loss) and increases as the probe element corrodes, eventually reaching a maximum of 20mA when the probe sensing element has been completely consumed by corrosion (in this case, 10 mils of Metal Loss.) At this time the probe has reached its end‐of‐life and must be replaced. ii. Calculating Corrosion Rate As explained previously, ER probes and instruments report Metal Loss. However, the value that is of 11 ... - Page 16 ultimate interest is Corrosion Rate. The Corrosion Rate is essentially Metal Loss over time, so the Corrosion Rate can be calculated using the following formula: ∆Loop Current mA Corrosion Rate mpy Probe Life mils ∆Time days where: Loop Current(mA) is the difference between two readings Time(days) is the time difference between those two readings It is a common practice to program this formula into the control (DCS/SCADA) system and have it calculate Corrosion Rate on a continual basis from the Metal Loss data. The challenge in doing this is selecting an appropriate time interval. Using an interval that is too short may give erratic results, while selecting an interval that is too long may give results that are insensitive to system upsets. The ideal time period depends on many factors, and will vary from system to system. It may take some trial and error to settle on the best time period for your installation. In some cases it may be necessary to review the raw Metal Loss data and manually apply the Corrosion Rate formula to periods of interest. For example, look at the graph below and see how much the calculated Corrosion Rate can vary depending on the time period used. Figure 8. Corrosion Rates calculated from Metal Loss data While each of the results is valid for the selected time period, the one of most interest is the value of 11.81 mpy which represents some type of system upset. When the Corrosion Rate is calculated automatically on a pre‐selected time period, there is no guarantee that the selected time period will always coincide with system upsets such as this. That is why manual review and interpretation of Metal Loss data is also helpful. 12 ...
-
Page 17: Commissioning
Once the MS2600E has been installed, tested, and properly configured for the probe in use, it can then be closed and put into service. First, perform one last visual inspection to ensure that all electrical connections are secure, and that the enclosure o‐ring is in place and is in good condition. Then thread the enclosure lid onto the base fully. Once the lid has been threaded into place, tighten the Lock Screw to prevent unauthorized tampering. Figure 9. Enclosure Lock Screw The Lock Screw on the instrument base must be tightened securely to prevent unauthorized CAUTION: personnel from opening the MS2600E, and ensure that the intrinsic safety is not violated. Only qualified personnel should be allowed to install, operate, and maintenance the MS2600E. C. Maintenance Once installed, the MS2600E requires little maintenance. However, it is important to verify the following items periodically to ensure continued safe operation. Before performing any tests or maintenance on the MS2600E, ensure that all hazardous area CAUTION: requirements are met. Inspection Item Frequency Inspect the enclosure o‐ring for any signs of damage. Replace as necessary. Annually Inspect the probe connector o‐ring for any signs of damage. Replace as necessary. Annually Inspect the external electrical connections for signs of corrosion, mechanical damage, or Annually foreign matter that could cause damage or cause an electrical short. Clean as necessary. Ensure that the locking screw is in place and is secure Annually The MS2600E enclosure is made of corrosion‐resistant 316 stainless steel. However, it ... -
Page 18: Troubleshooting
Measure continuity to each of the other pins. There should be continuity (low resistance) to each pin. NOTE: Continuity on each pin does not ensure that the probe is good. However, if you find an open circuit on any pins then it is almost certain that the probe is bad and should be replaced. 2. Ensure that the Probe Selection Switches are set correctly for the probe being used. Confirm the probe type, and refer to Table 2 on page 9 to verify the appropriate switch settings. 3. Perform a visual inspection of the circuit boards to look for any signs of mechanical or electrical damage. 4. Ensure that all electrical cables and wiring are in good condition. 5. Ensure that all electrical contacts are secure and free of corrosion. 6. Ensure that there is adequate supply voltage at the 4‐20mA Current Loop Connector. 7. Verify that the supply voltage polarity is correct. 8. If there is insufficient supply voltage on the 4‐20mA Current Loop Connector, check the safety barrier (if applicable) for a blown fuse or any other failure. 9. Test the MS2600E using the supplied Meter Prover (see page 10.) 10. Test the MS2600E with a local multi‐meter or loop calibrator. These basic checks should indicate the source of any problem (probe, power supply, wiring, etc…) If it is determined that the MS2600E is malfunctioning, or if you need further assistance in troubleshooting, contact Metal Samples Technical Support. If the MS2600E shows any signs of damage remove it from service immediately and consult the CAUTION: factory. ... -
Page 19: Service And Warranty Information
III. Service and Warranty Information A. Warranty Metal Samples warrants that any part of the MS2600E and accessories which proves to be defective in material or workmanship within one year of the date of original shipment to Purchaser will be repaired or replaced, at Metal Samples option, free of charge. This warranty does not cover (1) probe assemblies, (2) items expendable in nature, or (3) items subject to damage from normal wear, misuse or abuse, or failure to follow use and care instructions. All damaged items are to be shipped at Purchaser’s expense to and from Metal Samples which shall have the right to final determination as to the existence and cause of a defect. The foregoing shall constitute the sole and exclusive remedy of any purchaser of Metal Samples products for breach of warranty and IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL METAL SAMPLES BE LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN THE PERFORMANCE OF THIS WARRANTY DUE TO CAUSES BEYOND ITS CONTROL. The technical information and suggestions contained herein are believed to be reliable, but they are not to be construed as warranties since conditions of use are beyond our control. B. Obtaining Service and Returning the Instrument for Repair If you experience problems with your instrument please contact the factory at 256‐358‐4202 and ask for customer support for instrumentation. Our customer support department will assist you in troubleshooting your instrument. Most issues can be resolved over the phone, but in some cases it may be necessary to return your instrument for further evaluation and repair. In this case, please obtain a Return Materials Authorization (RMA) number from the sales person or support technician. This RMA number will ensure that your instrument is routed to the correct department when it is received at the factory. After receipt of an RMA number you may pack your instrument for return. Be sure to pack your instrument in a sturdy box and to pad it sufficiently to avoid damage during transit. Also be sure to complete the “Instrument Repair Form” on the next page and include a copy with your repair. This will ensure that the repair department has sufficient information regarding the problems you are experiencing with your instrument, as well as the billing, contact, and return shipping details for the repair. ... -
Page 20: Instrument Repair Form
C. Instrument Repair Form This form may be photocopied for use when returning an instrument to Metal Samples for repair. Please fill in all known information and enclose a copy of the completed form with the instrument. General Information Model Serial Number Number RMA Date of Number Purchase* *If known. Contact Information for Repair Contact Name Company Phone E‐mail Number Address Return Shipping Information Recipient ... -
Page 21: Appendix A: Drawings
Appendix A: Drawings A. Wiring Diagrams Control Drawing (Hazardous Area Wiring Diagram) Safe Area Wiring Diagram ... - Page 22 HAZARDOUS AREA SAFE AREA NOTE: INSTALLATION OF MS2600E 2-WIRE ER TRANSMITTER MS2600E HIGH RESOLUTION ER 4-20mA TRANSMITTER IN GROUP IIC HAZARDOUS LOCATIONS. A - (+) B - (-) CERTIFIED SAFETY BARRIER (EEx ia) IIC Probe Cable Assembly 28VDC, 93mA, 300 W £...
- Page 23 MS2600E HIGH RESOLUTION ER 4-20mA TRANSMITTER A - (+) B - (-) 10-28Vdc Probe Cable Assembly POWER SUPPLY UNIT (DC) ER Probe (Simple Device) NOTE: PRE-APPROVED POWER SUPPLY UNIT OR APPROVED EQUIPMENT WITH THE FOLLOWING MAXIMUM INPUT PARAMETERS SHOULD BE USED;...
-
Page 24: Appendix B: Revision History
Appendix B: Revision History Revision Date Changes A 6/29/2014 Initial Release 7/25/2014 Added ‘X’ to certificate numbers on page 3. Added ‘X’ restrictions on B page 3. Added ‘CAUTION’ note on page 4. C 5/5/2015 Changed Current Loop Wiring Harness length from 3’ to 33’ on page 3 and 6. ...
