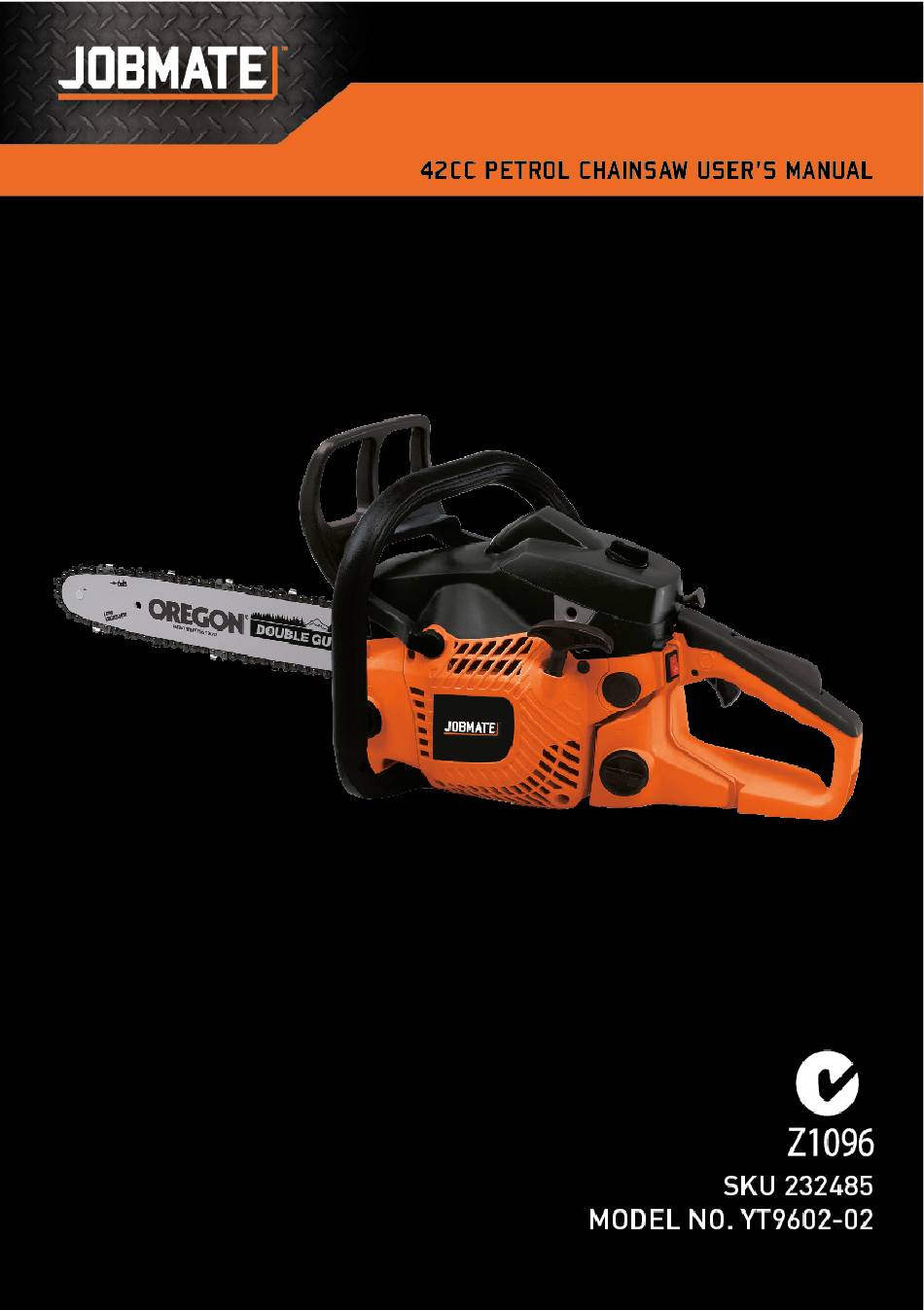

jobmate YT9602-02 User Manual

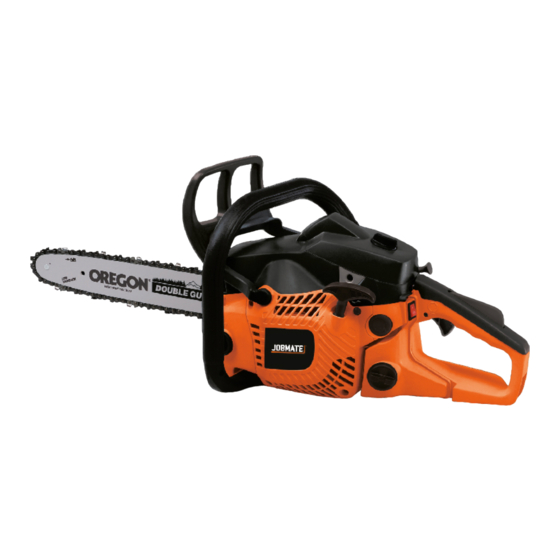

42 cc petrol chainsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YT9602-02 and is the answer not in the manual?

Questions and answers

Related Manuals for jobmate YT9602-02

Summary of Contents for jobmate YT9602-02

  • Page 2: Table Of Contents

    CONTENTS Know Your Product....................3 Description of Symbols...................4 Contents of Petrol Chainsaw..................General Safety Instructions..................6 Additional Safety Instructions for Petrol Chainsaw..........8 Assembly Instructions.................... 10 Operation....................... 14 Starting the Engine................... 14 Stopping the Engine..................14 Tips for Using This Petrol Chainsaw............... 14 Maintenance......................

  • Page 3: Know Your Product

    KNOW YOUR PRODUCT 1 Guide bar 2 Low kickback saw chain 3 Chain-tensioning screw 4 Spark arresting muffler 5 Chain brake lever /front hand guard 6 Front handle 7 Starter handle 8 Spark plug 9 Cylinder cover 10 Stop switch 11 Bar lube reservoir cap 12 Starter cover 13 Fuel tank cap...

  • Page 4: Description Of Symbols

    DESCRIPTION OF SYMBOLS SAFETY ALERT SYMBOLS Safety alert symbols are used to draw your attention to possible dangers. These symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

  • Page 5: Contents Of Petrol Chainsaw

    DESCRIPTION OF SYMBOLS (CONT.) Disconnect from power supply when for repair. This symbol is known as the ’Crossed-out Wheelie Bin Symbol’. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general housed hold waste. Some chemicals container within electrical/electronic products or batteries can be harmful to health and the environment.

  • Page 6: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all the instructions listed in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. General Safety Instructions • DO NOT handle the unit with wet hands. •...
  • Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) cause the operator to be struck when the tension of the wood fibers is released. Use extreme caution when cutting small-sized brush and saplings, as slender material may catch the saw chain and be whipped toward the operator or pull the operator off balance.

  • Page 8: Additional Safety Instructions For Petrol Chainsaw

    ADDITIONAL SAFETY INSTRUCTIONS FOR PETROL CHAINSAW BASIC SAFETY PRECAUTIONS • DO NOT rely exclusively upon the safety devices built into the unit. • DO NOT allow the unit to be used as a toy. • Please read the entire operator’s manual carefully before attempting to assemble, operate or maintain the unit.
  • Page 9 ADDITIONAL SAFETY INSTRUCTIONS FOR PETROL CHAINSAW (Cont.) in the opposite direction, sending the saw straight back toward the operator. Pull-In can happen when the moving chain on the bottom of the guide bar hits a foreign object inside the wood. This can cause the chain to suddenly stop.

  • Page 10: Assembly Instructions

    ADDITIONAL SAFETY INSTRUCTIONS FOR PETROL CHAINSAW (Cont.) Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. equivalent. These are available from authorized service dealers. Use of any unauthorized parts or accessories could lead to serious injury to the operator or damage to the unit and will void the warranty.
  • Page 11 ASSEMBLY INSTRUCTIONS (Cont.) Fig. 5 Fig. 6 Fig. 4 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15...
  • Page 12 ASSEMBLY INSTRUCTIONS (Cont.) oil that is formulated to perform over a wide range of temperatures with no diluting required in the bar lube reservoir. Do not use motor oil or any other petroleum-based oil. 1. Remove the bar lube reservoir cap (Fig. 8). 2.
  • Page 13 ASSEMBLY INSTRUCTIONS (Cont.) 1. Turn the unit on its side so that the fuel tank is facing up (Fig. 9). 2. Slowly unscrew and remove the fuel tank cap by turning it anti- clockwise. 3. Slowly pour the proper fuel/oil mixture into the fuel tank until the tank is full. 4.

  • Page 14: Operation

    OPERATION STARTING THE ENGINE 1. Pull the orange choke lever out to the full extent (Fig. 16). 2. Fully press and release the primer bulb 10 times, slowly (Fig. 17). Some amount of fuel should be visible in the primer bulb. If fuel cannot be seen in the bulb, press and release the bulb until fuel is visible.
  • Page 15 OPERATION (Cont.) A buttress root is a large root extending from the trunk of the tree above the ground. Remove large buttress roots prior to felling (Fig. 25). 2. Remove the resulting loose section from the work area. 3. Remove any remaining large buttress roots. FELLING Felling is the term for cutting down a tree.
  • Page 16 OPERATION (Cont.) to leave a straight line. To keep the weight of the wood off the saw, always make the lower cut of the notch before the upper cut (Fig. 27). 2. Felling Back Cut. This cut fells the tree. Make the back cut level and horizontal, and at a minimum of 5cm above the horizontal cut of the notch (Fig.
  • Page 17 OPERATION (Cont.) Fig. 16 Fig. 17 Fig. 18 Fig. 19 Fig. 20 Fig. 21 Fig. 22 Fig. 23 Fig. 24 Fig. 25 Fig. 26 Fig. 27 Fig. 28 Fig. 29 Fig. 30 Fig. 31 Fig. 32 Fig. 33...
  • Page 18 OPERATION (Cont.) Fig. 34 Fig. 35 Fig. 36 Fig. 37 Fig. 38 Fig. 39 Fig. 40 Fig. 41 Fig. 42 log. Give special attention to logs under stress to prevent the guide bar and chain from pinching. 1. When the log is supported on one end (Fig. 34): First, cut from the bottom (underbuck) 1/3 of the way through the log to avoid splintering.
  • Page 19 OPERATION (Cont.) Work slowly, while maintaining a proper grip and stance. Do not cut from a ladder; this is extremely dangerous. Leave this operation for professionals. Do not cut above chest height, as a saw held higher is difficult to control during kickback.
  • Page 20 OPERATION (Cont.) Long-term Storage Instructions In addition to the standard storage instructions described above, perform the following steps when storing the unit for 30 days or more: 1. Drain the fuel tank by running the unit dry. Alternatively, tip the engine housing/ fuel tank over to pour the fuel mixture into a suitable container and then run the engine until it stops in order to remove fuel from the carburettor.

  • Page 21: Maintenance

    MAINTENANCE If the unit is not working as it should, has been dropped, damaged, left outdoors or dropped into water, do not use the unit. Have the unit serviced by an authorized service centre. All service, other than the maintenance procedures described in this manual, should be performed by an authorized service centre.

  • Page 22: Warranty

    WARRANTY POLICY Congratulations on your purchase of Petrol Chainsaw. In order to get maximum benefit from your new purchase, please be aware of the warranty provisions outlined in this document. 2 YEAR [REPLACEMENT/REPAIR] WARRANTY Your Petrol Chainsaw is guaranteed for a period of 24 months from the original date of purchase.
  • Page 23 Mitre 10 or Mitre 10 MEGA store where the product was purchased from, for the warranty to be applicable. Please retain your Proof of Purchase. Only the original owner is covered by the manufacturer’s warranty and must have purchased the product from a Mitre 10 or Mitre 10 MEGA store in New Zealand. What is not covered under warranty? •...
