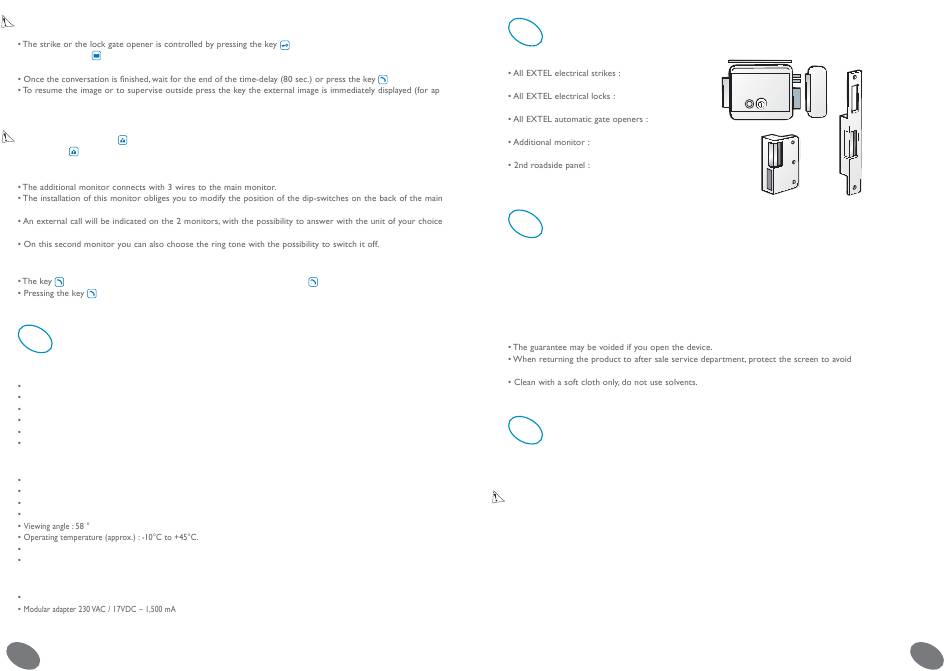

WARNING :The tactile keys must be only depressed with the fingers. (Pressure 200-300 gr).
by pressing the key .
This function is only available if the screen is in video door phone mode.
prox. 40 sec.).
If you have a second optional roadside panel, press a second time this key to view it.
If you press twice the key that the camera is not connected, you have a black screen and a noisy sound. Press
again the key To return to the camera of the kit.
f. Optional additional unit
monitor.
(for approx. 120 sec.)
Intercommunication mode
is used to call the other monitor and to communicate, if the key
puts an end to the conversation.
7
TECHNICAL FEATURES
a. Monitor (VPMN ITOUCH)
Type : 810261
Power supply : 17 VDC
Power consumption : 14W max.
Screen : COLOR of 26 cm (7')
Resolution : 2400 (H) x 480 (V)
Dimensions : 30 (width.) x 20 (height.) x 2 (thick.) cm
b. Roadside panel (VPPLA JCHTOUCH)
Type : 820150
Camera CCD
Resolution : 270 000 pixels
Rotating lens
Dimensions : 9.5 (width.) x 18 (height.) x 3 (thick.) cm
IP 44
c. Power supply
Type : 830461
10GB CFI EXTEL ITOUCH - 12/2009 - V1
, the automatic gate opener is controlled
-
is pressed on the monitor called.
8

OPTIONS

WECA 90501, WECA 90301 and WECA 90201.
WE 5001/2 BIS, WE 5002/2 BIS and WE 5004/2 BIS.
WEAT V, WEAT B and WEAT C.
WEVPMS JCH TOUCH SER.R1
WEVPPL JCH TOUCH SER.R1
9
INFORMATION FOR USERS
It is necessary to disconnect the power supply for at least 30 seconds in any cases when the product does not
work properly and particularly after :
- Adding a monitor
- Modifying the wiring
- Modifying the position of dip-switches on the back of a monitor
- 230 V~ power failures following a thunderstorm or works
scratches.
10

MAINTENANCE

The warranty is void if the parts are dismantled. Clean the outside only with a soft and dry cloth. Before cleaning,
disconnect and switch off the video surveillance system.
Caution : Do not use any acid or alcohol based or other similar cleaning product or solvent. You may damage the
appliance and the vapours are explosive and dangerous for your health.
Do not use any tool which can be voltage conductor (metallic brush, sharp tool...or other) for cleaning.
