Expert Electronics ColibriDDC Getting Started

Hide thumbs Also See for ColibriDDC:

1. Install ExpertSDR2 software for ColibriDDC

Download installer version ExpertSDR2 for ColibriDDC receiver



Install the program on your PC



1. Connect antenna to the receiver's antenna input.

2. Connect PC to the router using LAN cable

3. Connect the receiver to router using LAN cable

4. Connect power supply from the set to the receiver. Then plug it into the outlet.

5. Press Power button

6. Wait till the LED will stop blinking and green light start burning, it means that receiver

received IP-address from the router and is ready to work.

Start ExpertSDR2 program for ColibriDDC receiver



Press the button Start in the program



If everything is done correctly you will see the spectrum in the program's window and hear the air

noise. You can start the work. If there appear any errors, see Troubleshooting.

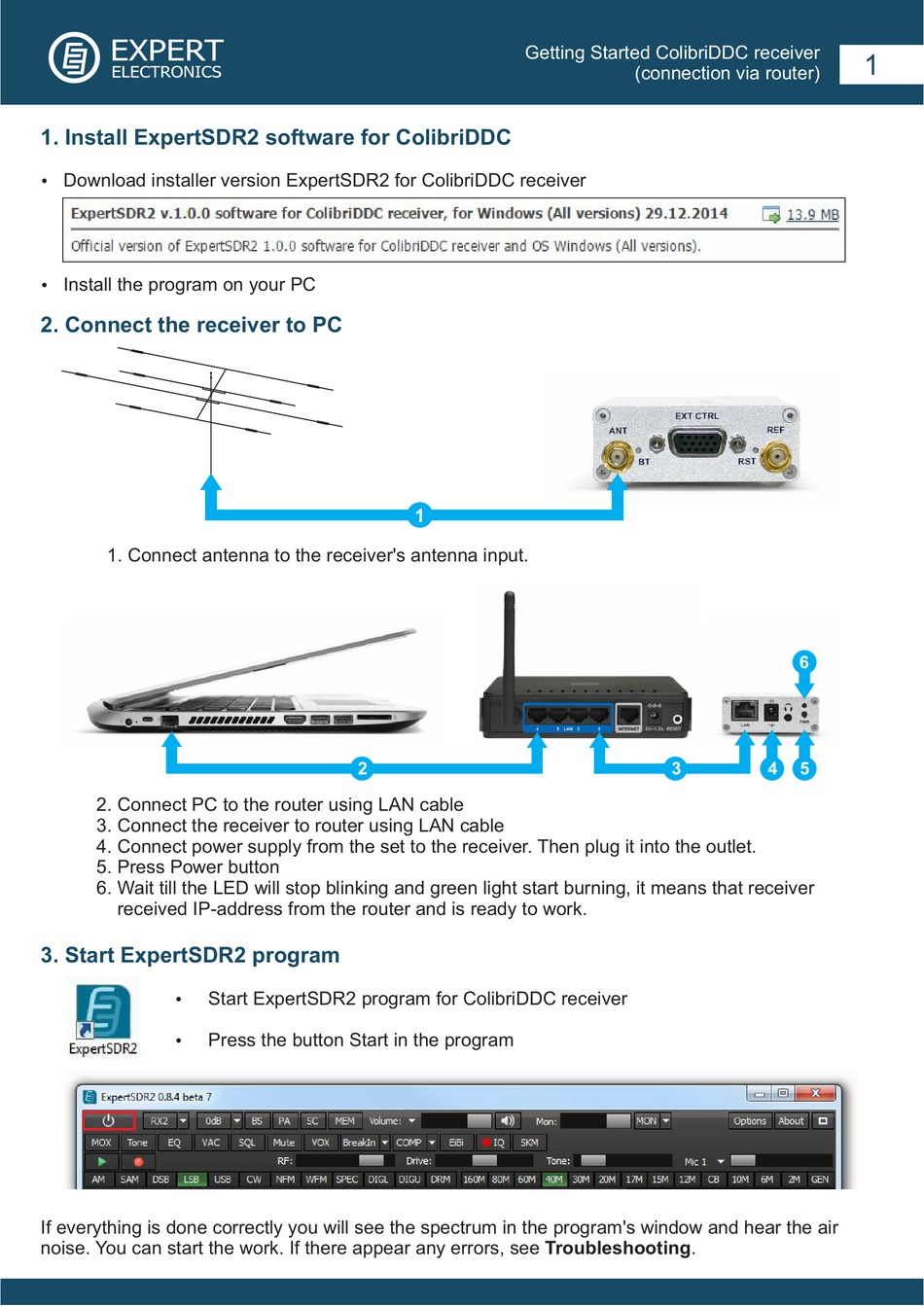

Getting Started ColibriDDC receiver

(connection via router)

Table of Contents

Do you have a question about the ColibriDDC and is the answer not in the manual?

Page 1 Getting Started ColibriDDC receiver (connection via router) 1. Install ExpertSDR2 software for ColibriDDC Download installer version ExpertSDR2 for ColibriDDC receiver  Install the program on your PC  2. Connect the receiver to PC 1. Connect antenna to the receiver's antenna input.
Page 2 Getting Started ColibriDDC receiver (connection via router) Troubleshooting 1. Problem: Can't ﬁnd receiver in network. Work-around: The automatic IP address receipt is not set in the network adapter settings. Set the check box Obtain an IP address automatically (see the ﬁgure).
