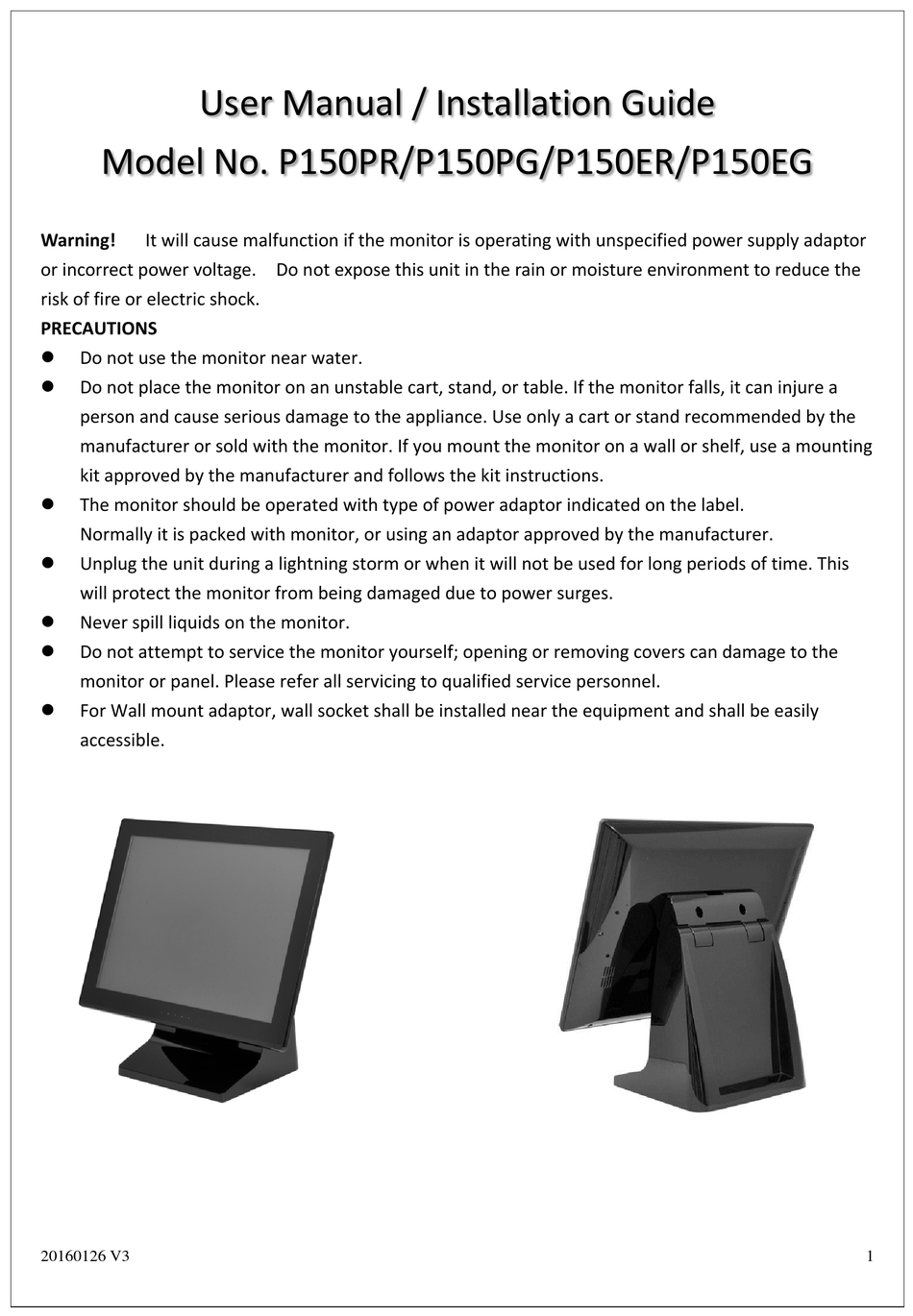

User Manual / Installation Guide
Model No. P150PR/P150PG/P150ER/P150EG
Warning! It will cause malfunction if the monitor is operating with unspecified power supply adaptor
or incorrect power voltage. Do not expose this unit in the rain or moisture environment to reduce the
risk of fire or electric shock.
PRECAUTIONS
Do not use the monitor near water.
Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a
person and cause serious damage to the appliance. Use only a cart or stand recommended by the
manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting
kit approved by the manufacturer and follows the kit instructions.
The monitor should be operated with type of power adaptor indicated on the label.
Normally it is packed with monitor, or using an adaptor approved by the manufacturer.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This
will protect the monitor from being damaged due to power surges.
Never spill liquids on the monitor.
Do not attempt to service the monitor yourself; opening or removing covers can damage to the
monitor or panel. Please refer all servicing to qualified service personnel.
For Wall mount adaptor, wall socket shall be installed near the equipment and shall be easily
accessible.
20160126 V3
1
Advertisement
Table of Contents
Related Manuals for Phistek P150PR
Summary of Contents for Phistek P150PR
- Page 1 User Manual / Installation Guide Model No. P150PR/P150PG/P150ER/P150EG Warning! It will cause malfunction if the monitor is operating with unspecified power supply adaptor or incorrect power voltage. Do not expose this unit in the rain or moisture environment to reduce the risk of fire or electric shock. PRECAUTIONS Do not use the monitor near water. Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follows the kit instructions. The monitor should be operated with type of power adaptor indicated on the label. Normally it is packed with monitor, or using an adaptor approved by the manufacturer. Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from being damaged due to power surges. Never spill liquids on the monitor. Do not attempt to service the monitor yourself; opening or removing covers can damage to the monitor or panel. Please refer all servicing to qualified service personnel. For Wall mount adaptor, wall socket shall be installed near the equipment and shall be easily accessible. 20160126 V3...
-
Page 2: Table Of Contents
Index: Introduction ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3 Features‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3 Unpack the monitor‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4 Check Accessories‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4 Recommended network application and setting ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5 Basic Extended Mode(or Mirror Mode) ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 6 Zero Client with WMS2012 Multipoint ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 9 III. Drivers Installation ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 10 Install Elite USB Server ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 10 ... -
Page 3: Features
P150PR(PG, ER, EG) is a Zero Client Audio/Video over Ethernet Display, designed as an endpoint of a PC sharing solution such as Windows MultiPoint Server 2012. With Windows MultiPoint Server 2012, it can work as a standalone workstation. The solution enables a host PC(Server) to communicate with multiple and independent stations. Each station is consisted of one P150PR (PG, ER, EG) Monitor (zero client) with a keyboard, mouse, and monitor connected, allowing multiple users to share the resources/computing of one single server. By simple Ethernet connection, the server provides each station user with a familiar and independent Windows® experience. P150 series Model and function table listed as below: Model PoE power supply Resistive touch Protective cover lens panel P150PR Yes Yes NA P150PG Yes NA Yes P150ER NA Yes NA P150EG NA NA Yes ... - Page 4 P150PR/ER/PG/EG Mini USB to USB A type cable P150PR/ER/PG/EG Power Adaptor for Non PoE Model User guide & Driver CD ...
-
Page 5: Recommended Network Application And Setting
Recommended network application and setting: The Phistek P150PR/PG/ER/EG can be configured to the following modes: Basic Extended mode LAN cable Gigabit LAN switch Host PC LAN cable LAN cable LAN cable LAN cable P150xx P150xx P150xx P150xx Monitor Monitor Monitor Monitor Display 3 Display 4 Display 1 Display 2 Zero Client With WMS2012 Multipoint Ethernet( LAN) network connection ... - Page 6 Please note that Extended mode only provide extended function of video display, audio, USB ports. 1.1 Set Up Procedures: 1.1.1 Required Hardware Ingredients The P150xx Zero‐Client: typically available directly from PHISTEK. The host computer: should be scaled according to the usage scenarios CPU Intel i7 Intel i5 Intel i3 Inel Atom D525 DRAM 8G 8G 4G 2G OS Win7 64bit Win7 64bit POS Ready7 POS Ready2009 Video 1080p 8 sets(max) 6 sets(max) 0 set 0 sets Video 720p 8 sets(max) 8 sets(max) 1 sets(max) 0 sets ...
- Page 7 4) This program will search for P150P(/E) Zero‐Clients: 5) Click “Configuration”, you can set IPv4 to Static IP or DHCP 6) Per each cluster, per each P150P(/E) terminal: Click “Assign to this PC”: 7) Windows will identify and install USB sound driver. 8) A dialog will pop up – search for P150P(/E) Zero Client software – click cancel. 20160126 V3...
- Page 8 9) Each client connection will be completed as below: ...
- Page 9 0x00000004 (4) The default number is 4, click MAxNumberOfUsbAdapters to change number. The numbers of clients to use depend on the Host PC resources, Recommend maximum number set <10 Zero Client with Windows MultiPoint Server 2012 2.1 With Windows MultiPoint Server 2012, zero clients can work independently as standalone PC 2.2 Pls visit Microsoft Website for Windows MultiPoint Server 2012 Evaluation. to get image and installation guide. http://www.microsoft.com/en‐us/download/details.aspx?id=35821 In addition to the image, pls visit Phistek website to download following drivers Elite Driver for wms2012: GenericWMSZeroClientService_Setup_13_1217_S0122_G1042_Cert SMSC driver for wms2012: SetupSgfxWmsFbr‐5_3_60_8411 Patch file: WMS‐KB2791647‐ENU‐x64 Please mail to: sales@phistek.com to get download account and password. The recommended PC System equipment: Minimum base PC system running RDSH (formerly “Terminal Services”) desktops (supporting up to 4 lightly loaded stations): Dual Core Processor and 1 core or thread for each two stations ...
-
Page 10: Drivers Installation
III. Drivers Installation: The attached CD includes three drivers for installation: Elite USB Server (for extended mode) SMSC Driver (for extended mode) EETI Touch Driver (For Touch screen models only) 1.0 Install Elite Driver: USB Server: P150PR/GR/ER/EG: Elite USB Server 1.1 Installation is automatically run as below: ... - Page 11 1.2 After installation, screen will display as below, please press “Finish” 1.3 Screen will then display as below, please choose to restart your computer. 20160126 V3...
-
Page 12: Install Smsc Driver
2.0 Install SMSC Driver: P150PR/GR/ER/EG: 2.1 Please press “I Accept” 20160126 V3... - Page 13 2.2 Please select and confirm the “Language” 2.3 Installation start as below, installation run automatically and completed with no additional message, please restart your computer to complete it. 20160126 V3...
-
Page 14: Install Eeti Touch Driver (For Touch Screen Models Only)
3.0 Install EETI Touch Driver (For Touch screen models only) P150PR/GR/ER/EG: 3.1 Screen display as below, please click Next. 3.2 Select the set up type, don’t tick the box if PS2 interface is not required, 20160126 V3... - Page 15 Click “Next> 3.3 RS232 interface driver installed is default, please click Next> 20160126 V3...
- Page 16 3.4 You can select to do Touch screen calibration after system boot up or not Default setting is” None” 3.5 Select to use Multi‐Monitor system, then press Next> 20160126 V3...
- Page 17 3.6 Choose destination location, default folder location shown as below. Press Next> 3.7 As Figure shown below, please press Next> to complete installation 20160126 V3...
-
Page 18: Control Buttons/Connectors
Control Buttons/Connectors: Capacitive Touch Key Control Use the power switch to turn the power ON or OFF. We recommend turning Power your system power on first, then the LCD monitor. ( ) Press Power key to turn on and Press again for 2~3sec. to power off monitor Pressing to execute AUTO‐Adjusting function. This function will optimize the display image Auto Adjust Sometimes this function can't achieve the optimal effects. Please follow the (AUTO) manual adjusting procedure. After OSD menu is activated, press this key can turn off the OSD menu. a. Press Menu key to activate OSD Menu b. - Page 19 Structure of OSD settings: Item Level 1 Level 2 Level 3 Operating Procedure Press “UP” or “DOWN” to adjust H‐phase & H‐position & Auto Adjust V‐position clock automatically. Press “UP” key to increase brightness, “DOWN” key to decrease Brightness brightness. Press “UP” key to increase contrast, “DOWN” key to decrease Luminance Contrast contrast. Press “UP” key to increase image sharpness, “DOWN” key to Sharpness decrease image sharpness. Exit Exit to previous Menu Main Press “UP” key to shift screen left, “DOWN” key to shift screen H. Position ...
- Page 20 9300K Press “UP” or “DOWN” to choose three types of color 6500K temperature 9300°k, 6500°k, sRGB and user define. 5400K Color User Preset Red Select User Preset to enter Color Adjust Menu, Green Select desired color to adjust Blue Exit Exit − ...
-
Page 21: For Your Safety
Rear side connection: Reset Microphone Mini USB USB A type Mini USB Phone LAN port DC 12V in B type B type RJ‐45 LAN Port RJ‐45: This monitor act as a client and use LAN port( x1 RJ‐45, 10/100/1000Mb Ethernet) connect to host PC for video, audio, and data communication. Downstream‐ports: This monitor support 3 down‐ stream ports USB hub for keyboard, mouse and other ... -
Page 22: Power Over Ethernet(Poe) Power Supply
This monitor support 3 down‐ stream port USB hub USB A type connector x1 Mini USB B type connector x2 VIII. Power Over Ethernet(PoE) Power supply: Meet IEEE 802.3 af/at standard Build in PoE power supply (For P150PR/ P150PG only) 44~57V dc through Ethernet cable, driven from a PSE Typical power: 25W For PoE , IEEE 802.3af /at Standards A and B, RJ‐45 pin assignment, PoE, DC: 44~57V RJ‐45 pin no. 1000 (1 Gigabit) 1000 (1 Gigabit) 10/100 DC on 10/100 Mixed DC DC & Bi‐Data DC & Bi‐Data Spares (mode B) & Data (mode A) (mode B) (mode A) 1 Tx + Tx + DC + TxRx A + TxRx A + DC + 2 Tx ‐ Tx ‐ DC + TxRx A ‐ TxRx A ‐ DC + ... -
Page 23: Mechanical Dimension
XI. Mechanical dimension: 20160126 V3... -
Page 24: Fcc Class A Warning
XII. EMC Warning: FCC Class A Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. XIII. - Page 25 X2 Mini USB B type connector downstream port USB Hub x1 Standard USB A type connector downstream port Microphone in x1 3.5Ø phone jack x1 3.5Ø Headphone jack Headphone output (Plug in Headphone jack will disable Speakers out) Audio Speakers (option) 2W x2 Reset Reset IP address Resistive Touch Panel(P150PR/ER, only) Type Five‐Wire Analog Resistive Input Mode Stylus or Finger Touch Control type USB Touch Control Driver eGalax Touch Full Flat protective Glass P150PG/P150EG only 1. 12Vdc 3.0A AC‐DC adaptor Power supply ...
- Page 26 Network IP address setting: Note: All zero clients’ IP address shall be in the same segment For example: Host PC: IP address=192.168.1.10, Subnet mask=255:255:255:0 Zero clients shall be IP=192.168.1.xxx, Subnet mask=255:255:255:0 There are two ways to set up IP address: DHCP: See a general home network diagram below as an example: Connect Host PC and zero clients to a network switch(better to use Gigabit switch). The Router will automatically assign IP via switch to devices connect to this switch Host PC Gigabit Zero Client A Lan Hub Zero Client B Router ADSL Modem ...
- Page 27 Click configuration, a set up table will appear, DHCP shall be ticked. Set Host PC to DHCP: see below ...
- Page 28 After all devices’ IP address has been set up to DHCP, the router will assign IP automatically, the USB server utility will look like as below: Click Assignment to this PC for each client, connection will be made: 20160126 V3...
- Page 29 If the client IP is not in the same segment, the IP address shown is RED, see example below: Please tick “DHCP” to get DHCP IP. Manual assign IP: If the system is for local use( not connect to router to website), you may also assign IP manually, The IP address shall be in the same segment, and Subnet mask shall be the same. For example: Host PC: IP=192.168.1.1, subnet: 255:255:255:0 Zero Client A IP=192.168.1.11, subnet: 255:255:255:0 Zero Client B IP=192.168.1.12, subnet: 255:255:255:0 20160126 V3...
- Page 30 Yes P150ER NA Yes NA P150EG NA NA Yes 3. Page1, add description: P150xx, represent P150PR, P150PG, P150ER, P150EG 4. Page9 , remove Userful Multiplatform add Phistek eVDI 5. Page11, 16, Touch workstation change to Touch screen models 6. Page21, change Structure of OSD settings 7. Page24, Speakers option: Build‐in Speakers Output (option) : 2 W x 2 Note: Speakers option is added upon customer’s request 20160126 V3...
