ShenPaz Blazir User Manual

Zirconia
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Ver 1.11 2018
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blazir and is the answer not in the manual?

Questions and answers

Related Manuals for ShenPaz Blazir

Summary of Contents for ShenPaz Blazir

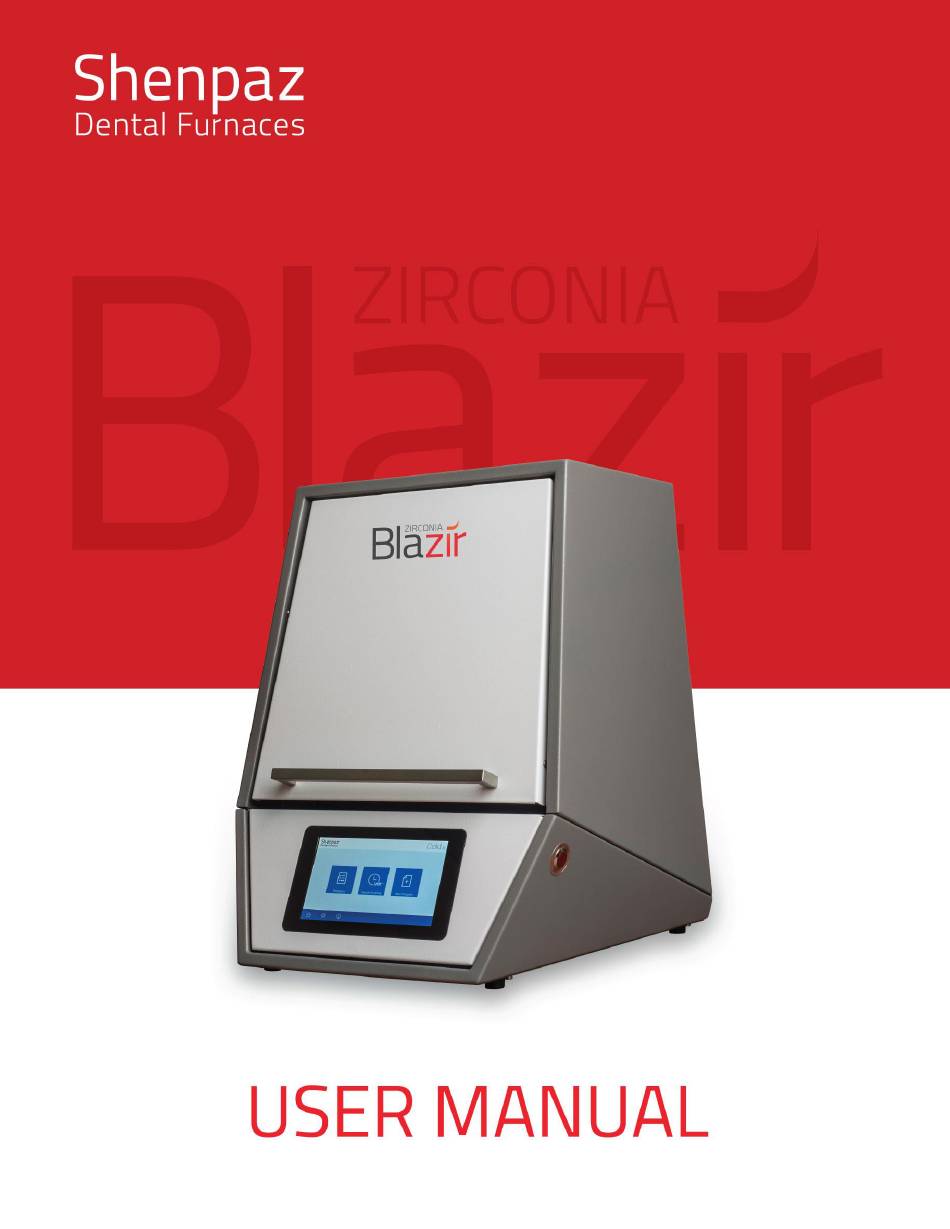

  • Page 1 Ver 1.11 2018...

  • Page 2: Table Of Contents

    Ver 1.11 2018 Table of Contents Table of Contents ............................2 Explanation of Symbols ........................4 General Safety Instructions ......................... 4 2.1 Location and environmental conditions ..................7 2.2 Rating & Fuses: ..........................7 Power Source:..........................7 2.4 Standards and approvals: ........................ 8 CE Declaration of Conformity ........................
  • Page 3 Ver 1.11 2018 Via preset ....................Error! Bookmark not defined. Wifi Preset : ............................30 Installation ............................32 4.1 Setting Up ............................33 4.2 Installation of the heating rod elements ..................34 Dismantling the Furnace Cover ......................34 Earthing cable ............................34 Mounting the Heating Rods ........................

  • Page 4: Explanation Of Symbols

    Ver 1.11 2018 1. Explanation of Symbols Warning indications Warning indications in the text are marked with a color-backed triangle and boxed. In case of hazards through electricity, the exclamation mark in the warning triangle is substituted by a lightning bolt. Signal words at the beginning of a warning indication specify the type and severity of the consequences, if the measures to avert the hazard are not adhered to.
  • Page 5 Ver 1.11 2018 WARNING: Operation with power sources, products, consumables, auxiliary aids, etc., which are subject to the Ordinance on Hazardous Substances or in any way has an impact on the health of the operating personnel is not permitted. NOTE: Switch the machine off when not in use or unsupervised for longer periods, e.g., overnight.
  • Page 6 Ver 1.11 2018 Warning ATTENTION! ATTENTION! Mount on non-flammable surface material only! Take out the furnace with the assistance of two persons. To do so, each person will take a side by holding the bottom of the furnace with one hand and the top side with the other hand. Do not pull out the furnace by its support in order to avoid damages.

  • Page 7: Location And Environmental Conditions

    Ver 1.11 2018 Caution! Caution! Caution! Risk or Danger Risk of electric shock Hot surface! Refer to documentation. 2.1 Location and environmental conditions a) Altitude up to 2000 meters; b) Ambient Temperature 5ºC to 40ºC; c) Maximum relative humidity 80% for temperature up to 31ºC decreasing linearly relative humidity at 40ºC;...

  • Page 8: Standards And Approvals

    Ver 1.11 2018 Connect the furnace to a grounded power outlet socket. Be certain that the power supply conforms to the electrical specifications of the Blazir. A single source of electricity must be used. 2.4 Standards and approvals CE Declaration of Conformity This product was designed and manufactured based on careful selection of the harmonized standards to be observed, as well as additional technical specifications.
  • Page 9 Ver 1.11 2018 “This product has been tested to the requirements of CAN/CSA-C22.2 No. 61010-1, Third edition, including Amendment 1, or a later version of the same standard incorporating the same level of testing requirements Class A equipment Equipment suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

  • Page 10: Machine Specifications

    Ver 1.11 2018 3. Machine specifications Blazir is a sintering furnace for dental zirconia oxide materials. 3.1 Delivery Scope 1 High-temperature furnace, model name, Blazir 4 SiC Heating rods 1 Mains cable 2 meters 1 Sintering tray After unpacking, check the machine for completeness and possible transport damages.

  • Page 11: Intended Use

    Ver 1.11 2018 3.2 Intended Use Blazir is a high-temperature furnace for sintering milled ZrO units up to 1530°C. The compact furnace is a table-top model. This high-temperature furnace has been specially developed for sintering most of the standard Zirconia products on the market.

  • Page 12: Components And Interfaces

    Ver 1.11 2018 3.3 Components and Interfaces Figure 1- Main screen Figure 2 - Furnace overview, front Figure 3 - Top cover with exhaust airpipe Fig 2-b: Furnace door, open Fig 2-c: LCD touch screen...
  • Page 13 Ver 1.11 2018 Figure 4 - Mounted SiC heating rods, furnace top Emergency switch Electric socket Main rocker switch Fuse compartment Ethernet connection Figure 5 - Back panel, connections MACHINE SPECIFIC...

  • Page 14: Display , Screens Overview And Programming Possibility

    Ver 1.11 2018 ATIONS 3.4 Display , screens overview and programming possibility The display is a touch screen. For editable fields, pop-up keypads will open. Icons: Home icon, bring you back to homepage Setting, bring you to internal setting of the furnace Info, the version of the software Save, Keep in memory programs and parameters Ramp, Speed of heating up or down...

  • Page 15: New Program

    1. MAIN SCREEN - After turning on the furnace by flipping the main switch at the back of the furnace, the Logo “SHENPAZ” will appear for few seconds, followed by the main screen. There are 3 ways to start to operate the furnace: 1.
  • Page 16 An editing screen will open to allow you to create your own program The Blazir allow you to program without any restriction any profile of cycle from 1 step up and one step down to an unlimited quantity of steps according to the different...
  • Page 17 Ver 1.11 2018 In case of error, the field will appear in reddish color, thus indicating to the user that the parameter setting is not within range of the furnace or missing . b. The product brand remains on default, unless edited After assigning a name, press ACCEPT.

  • Page 18: Via Screen

    Choose program name from list or use the Generic option 2.VIA SCREEN By selecting the icon “VIA – simple sintering” in the Main Screen, you will access the Shenpaz easy sintering Wizard. A limited list of tested ZrO brands are preset under VIA.
  • Page 19 Ver 1.11 2018 Figure 9 - VIA Simple Sintering screen After selecting an available ZrO brand from Product Name, there are 4 parameters that need to be entered. A program will be recommended and able to be launched automatically, once reviewed by the operator. TRAY –...

  • Page 20: 3-Preset Programs

    Ver 1.11 2018 3-PRESET PROGRAMS (from list) By selecting the icon “Programs”, you access the preset list of programs in the furnace. Scroll to the requested program you wish to run. Figure 10 - Program screen Highlight the chosen program, press the icon” pencil” and the program parameters will appear on the next screen.
  • Page 21 Ver 1.11 2018 Figure 11- Parameters screen...
  • Page 22 Ver 1.11 2018 The parameters screen shows the programs parameters for your review and modification if desired. The parameters can be modified only if the program is not locked. Locked programs are password protected. (Cannot be modified or erase). Modifications are simply performed by selecting a field. A keyboard pop-up will appear, modify value and save the program change to memory by pressing the Save icon in bottom right corner.

  • Page 23: Settings Screen

    Ver 1.11 2018 SETTINGS SCREEN The Settings screen allows the user to change the settings of the furnace. Figure 13 - Settings screen LANGUAGE – a drop box is opened with a list of languages. By choosing the relevant flag, the factory preset language may be changed. TEMPERATURE SCALE –...
  • Page 24 Ver 1.11 2018 REGULAR COOLING or FAST COOLING– selecting FAST COOLING activates as part of the cycle an internal ventilation to cool faster the furnace. SHUT-OFF button – It is highly recommended to logoff the furnace at the end of session.

  • Page 25: Advance Setting Screen

    Ver 1.11 2018 ADVANCE SETTING SCREEN To open the Advanced setting - you need to get the password from manufacturer or authorized support technician. 1. In Admin password pop-up screen, place cursor into empty field. 2. Keyboard will appear, type password, press Accept. 3.
  • Page 26 Ver 1.11 2018 Figure 16 Advanced Screen Once the password is accepted you will arrive to the “Advanced” screen. From this screen (on the PC, computer, laptop, and smartphone) you can: • Edit VIA programs • Products - Add/Create/Remove products •...
  • Page 27 Ver 1.11 2018 EDIT VIA (authorized technical support ONLY) Figure 17 EDIT VIA SCREEN In this screen Shenpaz personnel modifies and adapts the Via preset to the different Zr product and loading. PRODUCTS – edit / add/ create program names Figure 18 - Advance setting screen By pressing the + icon add a new brand product to the list.

  • Page 28: How To Connect Furnace To A Device

    Ver 1.11 2018 CONNECTING furnace to a device via Network Connect your furnace to a PC to upload new software and programs. Set the adaptor or the computer with the following setting Open the network connections on the PC: Choice and open Ethernet connection...
  • Page 29 Ver 1.11 2018 Press internet protocol version 4(TCPIP/ V4) , then press on propriety. and set detail as follow: Type in your PC, the set IP address 10.0.0.186. You are now connected to your furnace and you can see and operate your furnace from the PC.

  • Page 30: How To Upload Sintering Program Files

    Ver 1.11 2018 Network Preset (for IT manager use only). Those are the internal preset the furnace under Network. HOW TO UPLOAD SINTERING PROGRAM FILES...

  • Page 31: How To Upload Software

    Ver 1.11 2018 By pressing on your PC on CSV icon you can load or download a CSV file. The new program will be uploading to the furnace by pressing the icon above. The PC will confirm that the file was uploaded. By pressing the second Out Icon you may copy the program from the furnace to the The file will be stored in the Document \Download \CSV –export.

  • Page 32: Manufacture Calibration

    Ver 1.11 2018 In any case of error the following screen will appear and a sound will be audible. TION 5. Installation...

  • Page 33: Setting Up

    A clearance of at least 50 mm is to be observed sideward, to the rear and upwards of the furnace. The lateral clearance to non-flammable materials can be reduced to 20 Minimum space requirements for the Blazir (incl. connections): ▪ Width: 1.4 m (0.8 m for non-flammable materials) ▪...

  • Page 34: Installation Of The Heating Rod Elements

    Ver 1.11 2018 4.2 Installation of the heating rod elements Dismantle the furnace cover with a screwdriver. Open the 4 screws and remove the top cover. Insert the 4 SIC heating element rods according to the drawing. Connect the heating elements one to the other in row. Figure 17- Dismantling the furnace cover Earthing cable ▷Unscrew four screws 2 using the Allen key 1.
  • Page 35 Ver 1.11 2018 The connection terminals must run parallel to the front of the furnace and the heating rods body must face against the furnace ceiling, as shown above. Fig. 18 Mounting a heating rod Screw the connection terminals of the heating rods to the metal connection strips (tightening torque approx.

  • Page 36: Closing Back The Furnace Cover

    Ver 1.11 2018 Don’t damage to the heating rods! The heating rods are extremely fragile. ▷Handle the heating rods with extreme caution! ▷It is essential to avoid jolting, bending or turning of the heating rods! Closing back the Furnace Cover Position the cover on top of the furnace in such a manner that the holes for the screw connection are flush to each other.

  • Page 37: 5-Electrical Connection

    ▷Connect the supplied mains cable to the socket intended for this purpose at the rear of the furnace . Use the original Cable supply by Shenpaz , Max length 1.5 M WARNING: The mains cable may not be damaged! ▷Do not place objects on the mains cable.

  • Page 38: Recovery Function

    Ver 1.11 2018 8. Recovery function In Shenpaz furnace the recovery function is always an advantage. In any case of electrical failure, your furnace remembers the status and position within the cycle and will recovered to complete the full cycle. without delay limitation in time.

  • Page 39: Warranty And Service

    In the event that this product proves defective within a period of the one (1) year of work from the date of shipment to Buyer, Buyers' exclusive remedy shall be at ShenPaz Dental Ltd. option; either replacement of the product or defective part or component, free of charge.
  • Page 40 Ver 1.11 2018 We thank you for choosing the Blazir, Zirconia sintering furnace for your laboratory needs. For any questions or additional support, please contact us and we will look forward to assisting you.

  • Page 41: Appendices

    Ver 1.11 2018 11.Appendices...
  • Page 42 Ver 1.11 2018...
  • Page 43 Ver 1.11 2018 Hataasia 5 Migdal HaEmek 23101 Israel +97246666902/ info @shenpaz.com...
