Summary of Contents for Agema Delta AGV424

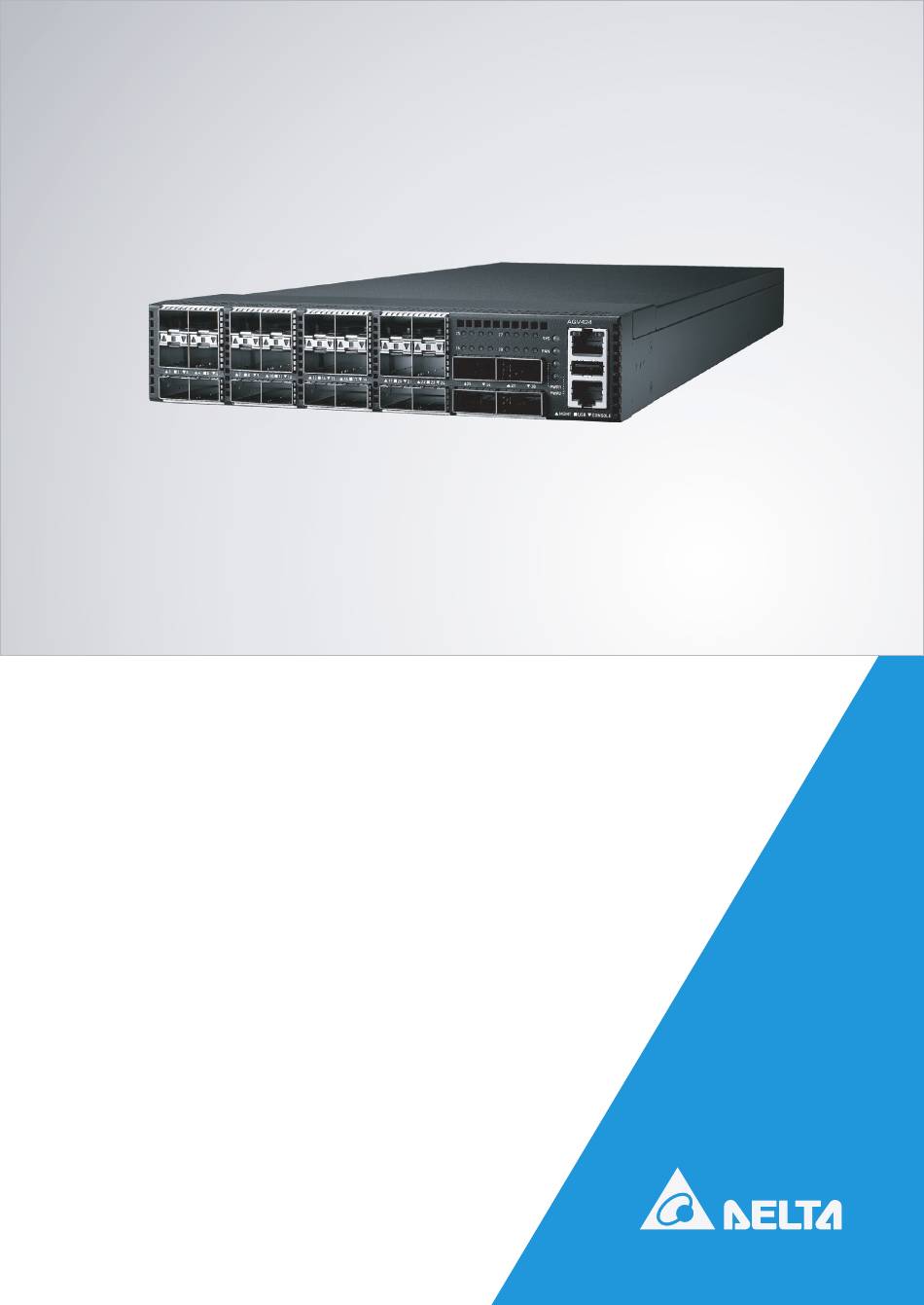

  • Page 1 Delta Networking – Agema Family AGV424 ToR/Leaf Switch Installation Guide agema.deltaww.com...
  • Page 2 Copyright All specifications and figures are subject to change without prior notice. Actual products may look different from the photos. All trademarks and logos mentioned in this guide are the properties of their respective holders. Copyright © Delta Electronics, Inc. All rights reserved. Regulatory and Safety Information This product has been tested in accordance to, and complies with the following safety standards and electromagnetic compatibility (EMC) inspection standards.
  • Page 3 Warning: Fiber Optic Port Safety When using a fiber optic port, never look at the transmit laser while it is powered on. Also, never look directly at the fiber TX port and fiber cable ends when they are powered on. Avertissement : Consignes de sécurité...
  • Page 4: Table Of Contents

    Table of Contents Chapter 1: Introduction -------------------------------------------------------------------1 1.1 Overview ------------------------------------------------------------------------------------ 1 1.2 Package Content ------------------------------------------------------------------------- 1 1.3 Features------------------------------------------------------------------------------------- 2 Chapter 2: Appearance and Mechanism --------------------------------------------3 2.1 Product Overview ------------------------------------------------------------------------- 3 2.2 LED Identification ------------------------------------------------------------------------- 4 2.3 System Requirements ------------------------------------------------------------------- 6 2.4 Data Center Deployment --------------------------------------------------------------- 7 2.5 Internal Power Supply ------------------------------------------------------------------- 7 2.6 Internal System Fan --------------------------------------------------------------------- 8...
  • Page 5: Chapter 1: Introduction

    Chapter 1: Introduction Overview The AGV424 is the next generation leaf switch for Data Center Networks, as well as for common Enterprise Aggregation network deployments. It leverages the 100G technology (4x25G Serdes) to offers 24-port 25G SFP28 and 4-port 100G QSFP28 in a compact form factor of 1U chassis height and half width. 2.5 times speed upgrade from current 10G leaf switch.
  • Page 6: Features

    Features The following lists the key main features of AGV424 switch: • 24x 25G SFP28 ports, support 10G/25G speeds and 4x 100G QSFP28 ports, support 10G/25G speed by fanout cable, and also supports 40G QSFP transceiver • 1 x RJ45 OOB management port •...
  • Page 7: Chapter 2: Appearance And Mechanism

    Chapter 2: Appearance and Mechanism Product Overview 2.1.1 Front View SFP28 ports x 24 Management port x 1 USB port x 1 RJ-45 Console port x 1 QSFP28 ports x 4 (Figure 2-1: Front View) 2.1.2 Rear View Redundant PSU Redundant PSU (Figure 2-2: Rear View)
  • Page 8: Led Identification

    LED Identification This section provides an overview of the front LEDs. 2.2.1 Front LEDs Upper QSFP28 Port LED System LED Upper SFP28 OOB Port LED Port LED Fan LED Middle SFP28 Power 1 LED Port LED Power 2 LED Lower SFP28 Port LED Lower QSFP28 Port LED (Figure 2-3: Front LED Identification)
  • Page 9 Chapter 2 • Appearance and Mechanism Description LED1 (Solid Lighting – Linkup; Blinking – Activity) Solid Green – 100G Operation • Solid White – 50G Operation • Solid Amber – 40G Operation • Solid Blue – 25G Operation • Solid Purple – 1/10G Operation •...
  • Page 10: System Requirements

    System Requirements Component Requirement System Requirements Switch Fabric Capacity 1Tbps on all packet sizes Forwarding Architecture Store and Forward or Cut-through • 148,800,000 pps (100Gb) Port Packet Forwarding • 59,520,000 pps (40GbE) Rate (at 64 Bytes) • 14,880,000 pps (10Gb) MAC Address Entries Up to 288K entries Supported...
  • Page 11: Data Center Deployment

    Chapter 2 • Appearance and Mechanism Data Center Deployment The following figure illustrates the converged Ethernet data center deployment. AG9032 v2 AG9032 v2 AG9032 v2 AG9032 v2 Spine 4x100G uplink AGV424 AGV424 AGV424 AG9032 v2 Leaf 25G downlink 25G downlink 25G downlink 25G downlink via Breakout cable...
  • Page 12: Internal System Fan

    Internal System Fan The system fans matching the airflow direction of internal power supply units provide the air cooling for the switch. (Figure 2-6: System Fan) AGV424 ToR/Leaf Switch...
  • Page 13: Chapter 3: Installation

    Chapter 3: Installation Rack Mounting This switch can only be mounted in a standard 19-inch equipment rack with an optional tray module purchased. Prior rack mounting the switch, pay particular attention to the following factors: • Mechanical Loading: Do not place any equipment on top of a rack-mounted unit. •...
  • Page 14 2. Assemble the inner rail to tray. Place the inner rail along one side of the tray, align the mounting holes in the inner rail to the standoff of the tray, and then fasten the inner rail to the tray. Repeat the similar step to attach the inner rail to the other side of the tray.
  • Page 15 Chapter 3 • Installation 4. Mount the tray to the rack cabinet. Slide the inner rails on the tray into the middle rails and push the tray all the way to the rear of the rack. Use one M5 rack-mounting screw to fasten the front bracket to the rack cabinet.
  • Page 16: Installing An Optional Transceiver And Cable

    Installing an Optional Transceiver and Cable The SFP28 slots support the following optional transceivers and cables: • 25G BASE-SR4 • 10G BASE-SR • 25G BASE-LR4 • 10G BASE-LR • 25G BASE AOC • 10G BASE AOC • 25G BASE DAC •...
  • Page 17: Connecting To The Console Port

    Chapter 3 • Installation To install an SFP+, SFP28, QSFP or QSFP28 transceiver, follow these steps: 1. Consider network and cabling requirements to select an appropriate SFP+, SFP28, QSFP or QSFP28 transceiver type. 2. Insert the transceiver with the optical connector facing outward and the slot connector facing down.
  • Page 18: Connecting To A Power Source

    Connecting to a Power Source To connect a switch to a power source: 1. Insert the power cable plug directly into the AC socket of a PSU located at the back of the switch. Power socket (Figure 3-10: Power Socket) 2.
  • Page 19: Chapter 4: Making The Network Connections

    Chapter 4: Making the Network Connections The AGV424 switch is designed to provide high-speed, lossless Ethernet connections between server racks through its 25G SFP28 or 100G QSFP28 ports. This chapter describes how to make network connections to the switch. Twisted-pair Connections The switch’s Management port connection requires an unshielded twisted-pair (UTP) cable with RJ-45 connectors at both ends.
  • Page 20: Fiber Optic Connections

    Fiber Optic Connections Optional 25G SFP28 or 100G QSFP28 transceivers can be used for fiber connections from the switch to other network devices in the data center. An SFP28 or QSFP28 transceiver may also be used for long distance connections to devices at another site. WARNING: •...
  • Page 21: Ethernet Cabling

    Chapter 4 • Making the Network Connections Ethernet Cabling To ensure proper operation when installing the switch into a network, make sure that the current cables are suitable for 10BASE-T, 100BASE-TX or 1000BASE-T operation. Check the following criteria against the current installation of your network: •...
  • Page 22: Appendix 1 : Technical Specifications

    Appendix 1 : Technical Specifications Item Description Key Components Switch Controller BCM56771 x 1 LAN Controller Intel I210-AT x 1 Intel C3338 2.4GHz Dual Core Flash ROM 16MB SPI NOR Flash*2 System Memory 4GB DDR4-SO-DIMM Storage 32GB m.2 SSD ST33HTP Power Supply 300 Watts Network Protocol and Standards Compatibility...
  • Page 23: Appendix 2 : Warranty

    Appendix 2 : Warranty Limited and Support Warranty Three Years End-User Guarantee. The new product you purchased from Delta or Delta authorized resellers (“Resellers”) will be free from defects in materials, workmanship, and design affecting normal use, for a period of three (3) years from the original purchase date.
  • Page 24 Return Policy Any product returned to Delta or Resellers without prior Return Material Authorization (RMA) from Delta will be considered an unauthorized return, and you will not receive any repair or replacement for the product and Delta will not ship the product back to you. The authorization will be provided through the e-mail: AgemaTechSupport@deltaww.com.
