VME64x Tower System
User's Manual
Product No.:
10836-050
Doc-No: 63972-159_R1.0
November 12, 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VME64 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for schroff VME64 Series

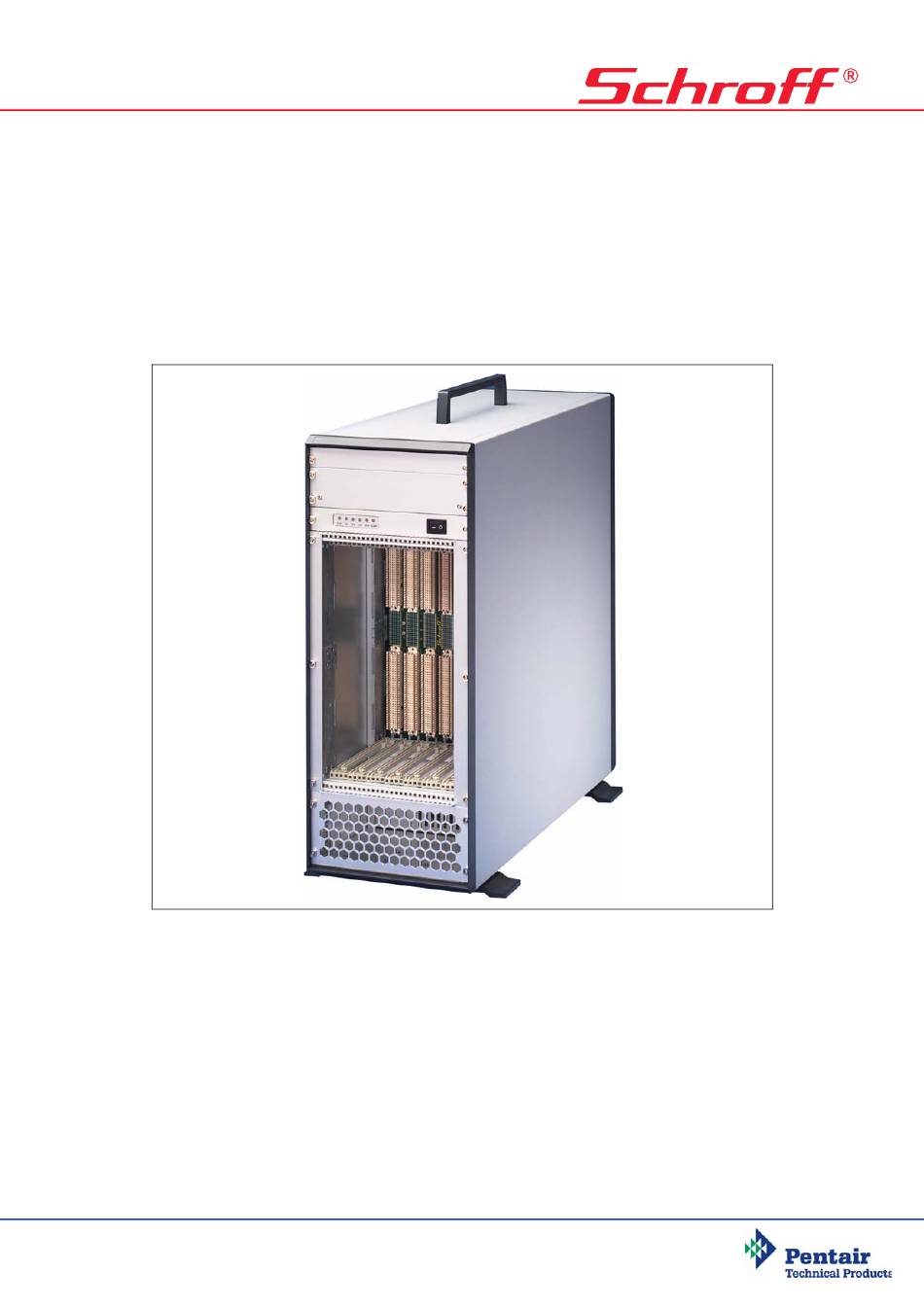

  • Page 1 VME64x Tower System User’s Manual Product No.: 10836-050 Doc-No: 63972-159_R1.0 November 12, 2007...
  • Page 2 Date updated Change R1.0 November 12, 2007 Initial Release Impressum: Schroff GmbH D-75334 Straubenhardt, Germany The details in this manual have been carefully compiled and checked - supported by certified Quality Management System to EN ISO 9001/2000 The company cannot accept any liability for errors or misprints.
  • Page 3: Table Of Contents

    Service ......................14 Technical support and Return for Service Assistance ........14 Declaration of Conformity .................. 14 Scope of delivery ....................15 Accessories ....................... 15 Spare Parts......................15 Technical Data ....................16 Dimensions ..................... 17 www.schroff.biz R1.0, November 12, 2007...
  • Page 4 VME64x Tower System 10836-050 www.schroff.biz R1.0, November 12, 2007...
  • Page 5: Safety

    • the overall unit complies with all other regulations and specifications at the place and country of use, e.g. interference limits, approval by the telecom- munications authorities. www.schroff.biz R1.0, November 12, 2007...
  • Page 6: Safety Instructions

    It must therefore be operated only with protective GND/earth connection! • Service personnel must know the necessary electrical safety, wiring and connection practices for installing this equipment in a telecommunication environment. • Install this equipment only in compliance with local and national electrical codes. www.schroff.biz R1.0, November 12, 2007...
  • Page 7: References And Architecture Specifications

    • User Manual VME64x Backplanes Order no.: 73972-103 • Short Form User Manual VME64x Backplanes Order no.: 73972-128 • User Manual Fan Control Module (FCM) Order no.: 73972-083 For more information see the catalogue „Electronic Packaging“ and at www.schroff.biz www.schroff.biz R1.0, November 12, 2007...
  • Page 8: Product Definition

    Product Definition 10836-050 2 Product Definition The Schroff VME64x tower system consists of: • A shielded subrack with front assembly area for 6 U front boards according to VME64x Standard (VITA 1.1-1997) • A 7 slot VME64x (VITA 1.1-1997) Backplane •...
  • Page 9: Mechanical Overview

    Front panel 4 U, perforated Drive Unit 4 U / 8 HP Fans Display Module AC mains/line module with IEC320- C14 connector, filter and fuses AC Switch Power Supply VME64x Systembusplatine Air Filter Card cage with guide rails www.schroff.biz R1.0, November 12, 2007...
  • Page 10: Tower System

    10836-050 2.2 Tower System The VME64x Tower System system based on the Schroff europacPro subrack in a ratiopacPro chassis with EMC shielding. The front card cage provides space for the installation of 7 VME64x Boards (6 U, 4 HP, 160 mm deep).
  • Page 11: Power Supply

    AC Connector Warning! The fuse value has been determined in factory for the maximum power delivered by the power supply. The fuse value must be changed to the actual current of the complete equipped system. www.schroff.biz R1.0, November 12, 2007...
  • Page 12: Grounding

    110 – 120 % U > 5 V or 122 – 134 % U < 5 V Overcurrent protection 105 – 120 % of rated output current Hold-up time >= 20 ms www.schroff.biz R1.0, November 12, 2007...
  • Page 13 Figure 4: Wiring Diagram DISPLAY Fan Power + Fan Power - Tacho Signal Fan Control Module Fan Power + Fan Power - Tacho Signal Backplane 3.3 V +12 V -12 V SENSE SENSE SENSE Power Supply 10006835 www.schroff.biz R1.0, November 12, 2007...
  • Page 14: Thermals

    The NTC temperatue sensor is located above the card cage. Caution! To maintain proper airflow, all open slots must be covered with filler panels. The filler panel should include an airflow baffle that extends to backplane. Figure 5: Airflow 10002055 www.schroff.biz R1.0, November 12, 2007...
  • Page 15: Fan Control Module (Fcm)

    Fan Speed Over-Temp. 10006807 For more information see the FCM’s User Manual, Order No.: 73972-083 and at www.schroff.biz 2.7 Display Module Figure 7: Display Module The Display Module is located at the upper front side of the subrack. 4 green LEDs signal the 4 VME64x voltages, two red LEDs signal over-temperature and fan fail events.
  • Page 16: Installation

    Caution! To maintain proper airflow, all open slots must be covered with filler panels. The filler panel should include an airflow baffle that extends to backplane. www.schroff.biz R1.0, November 12, 2007...
  • Page 17: Basic Functional Check

    The fuse value has been determined in factory for the maximum power delivered by the power supply. The fuse value must be adjusted to the actual current consumtion of the completed system. Maximum value is 8 A slow blow. www.schroff.biz R1.0, November 12, 2007...
  • Page 18: Service

    10836-050 4 Service 4.1 Technical support and Return for Service Assistance For all product returns and support issues, please contact your Schroff sales distributor or www.schroff.biz. We recommend that you save the packing material. Shipping without the original packing material might void the warranty.
  • Page 19: Scope Of Delivery

    20848-7xx Filler panel with EMC front plate for empty Slots, dimensions see catalogue 34562-8xx Filler panel for empty Slots, dimensions see catalogue 24579-03x Printed Circuit Board covers, dimensions see catalogue 4.5 Spare Parts On request. www.schroff.biz R1.0, November 12, 2007...
  • Page 20: Technical Data

    2,2 kVDC Output - PE: 0,7 kVDC Output - Output: 0,7 kVDC Shock and Vibration: EN 60068-2-6 and EN 60068-2-27 Electromagnetic Shielding Shielding attenuation typ. 40 dB at 1 GHz if shielded front panels are used. www.schroff.biz R1.0, November 12, 2007...
  • Page 21: Dimensions

    VME64x Tower System Dimensions 10836-050 6 Dimensions Figure 8: Mechanical Dimensions 177.0 500.0 156.8 475.5 222.0 10006847 All dimensions in millimeters (mm). www.schroff.biz R1.0, November 12, 2007...
  • Page 22 VME64x Tower System Dimensions 10836-050 www.schroff.biz R1.0, November 12, 2007...
