Note that screw terminals 1–15 on the left connector are for
channels 0 – 4, and screw terminals 15–1 on the right connector are
for channels 4 –7. Figure 3 shows how to orient the two connectors
with respect to the cFP-RLY-425.

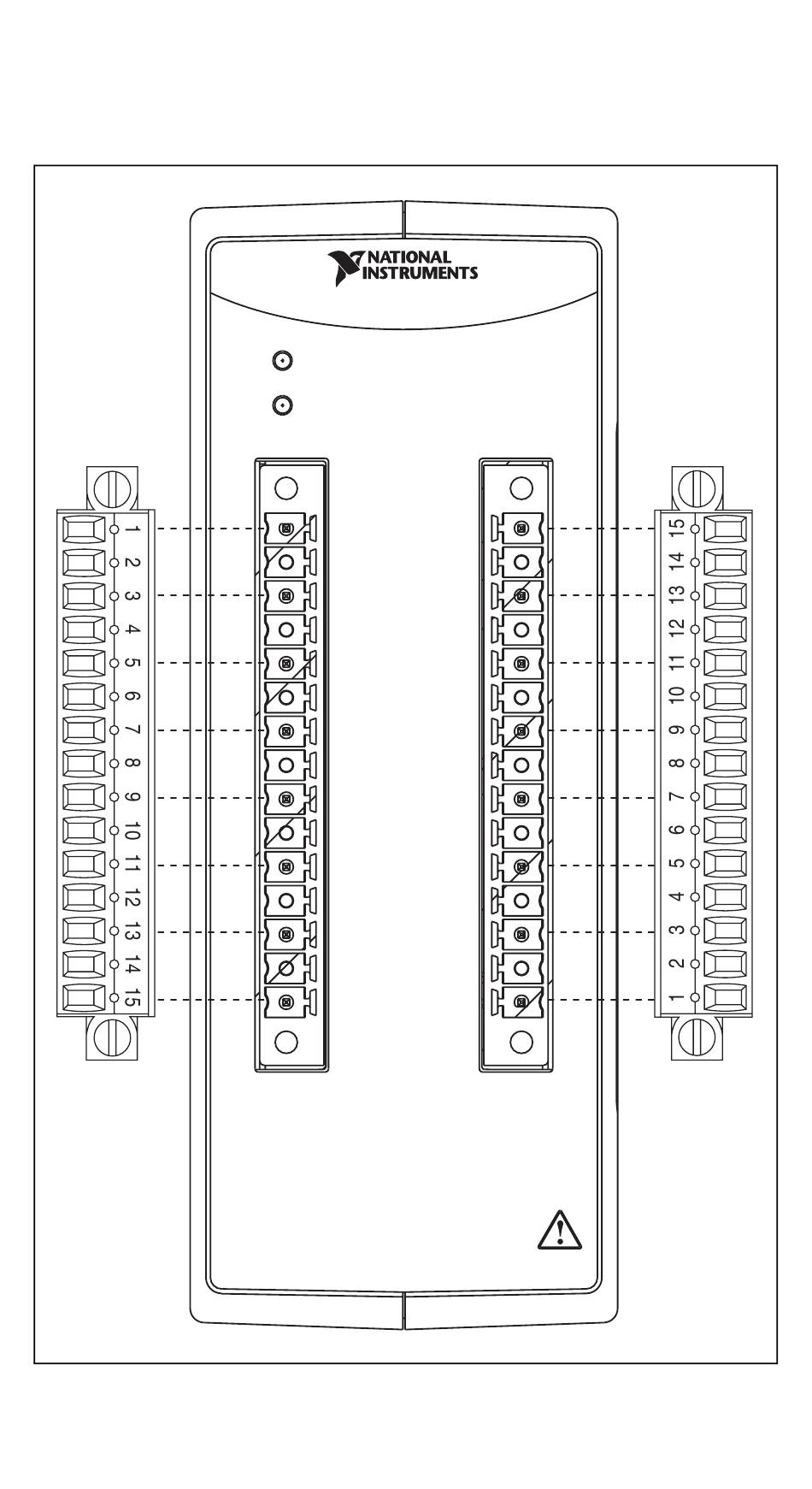

Figure 3. cFP-RLY-425 Screw-Terminal Connectors
© National Instruments Corp.
Compact FieldPoint
POWER
READY
CH0 CH4
COM0 COM4
CH1 CH5
COM1 COM5
CH2 CH6
COM2 COM6
CH3 CH7
COM3 COM7
cFP-RLY-425
