Essential Medical Supply P1410 Instructions

Orlando, FL 32822
Hand Bar (C)
Height Adjustment
Buttons
L Shape Bar
- Left (B)
Straight
Bars (A)
The Locking
Button of the L
Shape Bar (B)
must face out

Strap Instructions

1. Disengage the male half of the buckle by depressing the sides of the
buckle and pulling apart. Install male half on opposite end of strap by
inserting end of strap up through inside slot and back down through
outside slot (see photo).
2. At the opposite side of the bed, lift the mattress until the End Bar (D)
is visible.
3. Install strap by running male end around End Bar (D), across box
spring, and down side to frame.
4. Lift box spring, run around frame, and back to female buckle end.
5. Join buckle ends and adjust by pulling straps in either end of buckle.
WARNING: The Endurance
user is at risk to roll out of bed, a hospital style bed rail should be used. The Endurance
to help the user get in and out of bed safely.
Made for

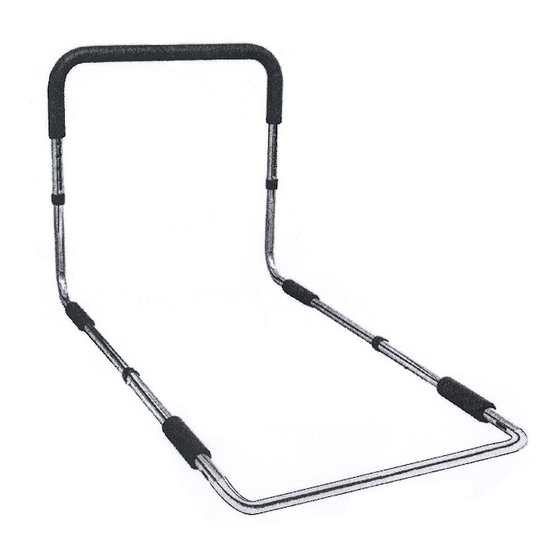

Height Adjustable Hand Bed Rail
L Shape Bar
- Right (B)
The Locking
Button of the L
Shape Bar (B)
must face out
End Bar (D)
Hand Rail is not intended or designed to keep the user/patient confined to bed. If the
®
Instructions for:
with Security Strap

Hand Bed Rail Assembly

After laying all of the pieces out, use the
picture below as your guide.
1. Assemble the two Straight bars (A) by sliding
them over the long end of the L Shape Bars (B)
until the Locking Buttons snap into the hole of
the Straight Bar (A). Make sure that the Locking
Button of each respective L Shape Bar (B) is
facing out prior to assembly.
2. Slide the Hand Bar (C) over the short end of both
L Shape Bars until the Locking Buttons snap into
the adjusting hole.
3. Slide the End bar (D) into both ends of the
Straight bars (A) until the Locking Buttons snap
into position.
4. Slide the assembled unit between the mattress
and the box spring at a point on the bed where
it will be easiest to grasp the Hand Bar (C) when
getting out of bed.
5. Adjust the Hand Bar (C) to the desired height.
User Weight Limit: 300 lbs.
Buckle and Strap
Hand Bed Rail is designed
®
Model #P1410
2011 ESSENTIAL MEDICAL SUPPLY, INC.
®
